Pressure and Temperature Sensors

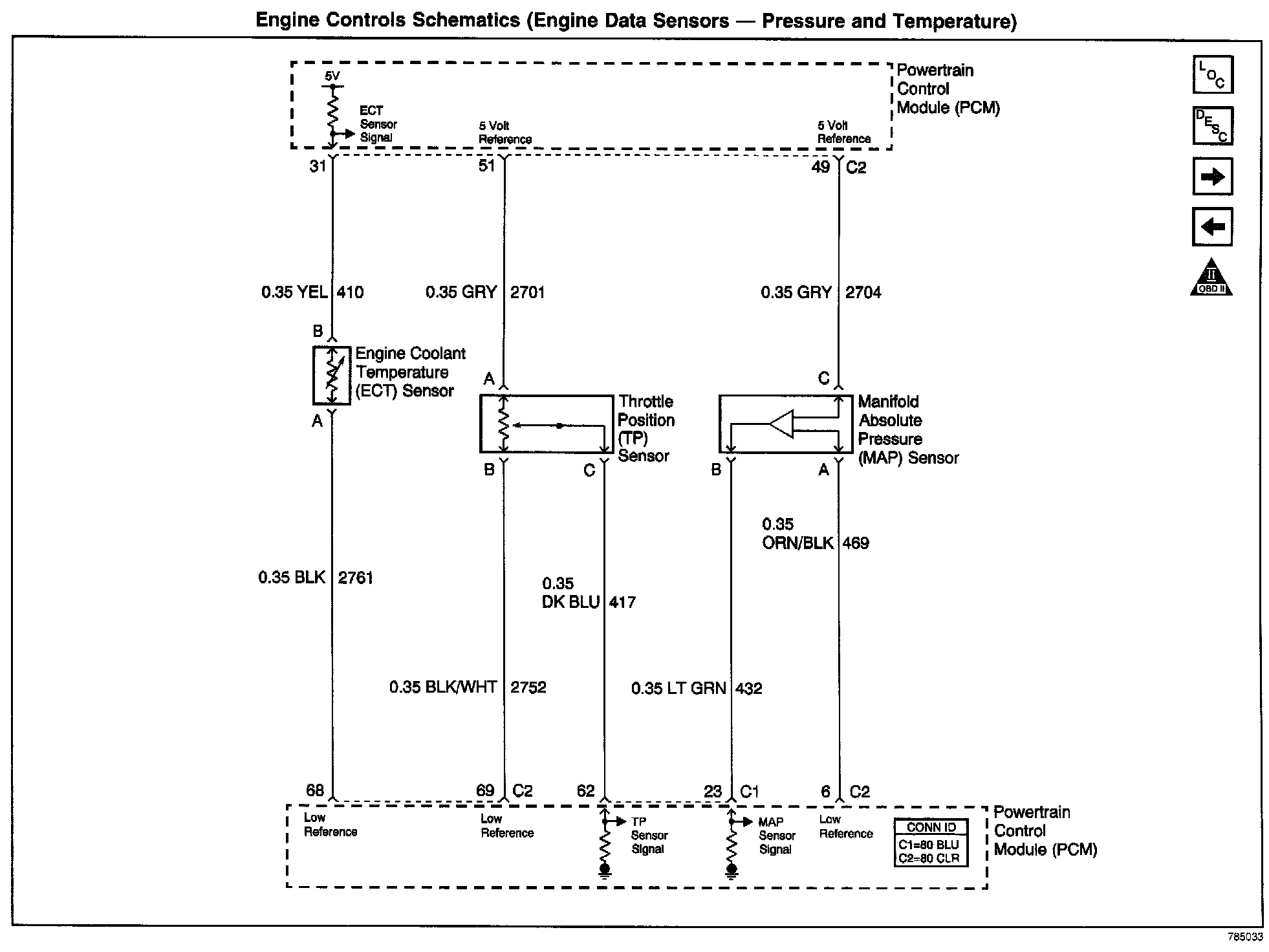

Engine Controls Schematics: Engine Data Sensors - Pressure And Temperature:
