Data Link Connector (DLC)

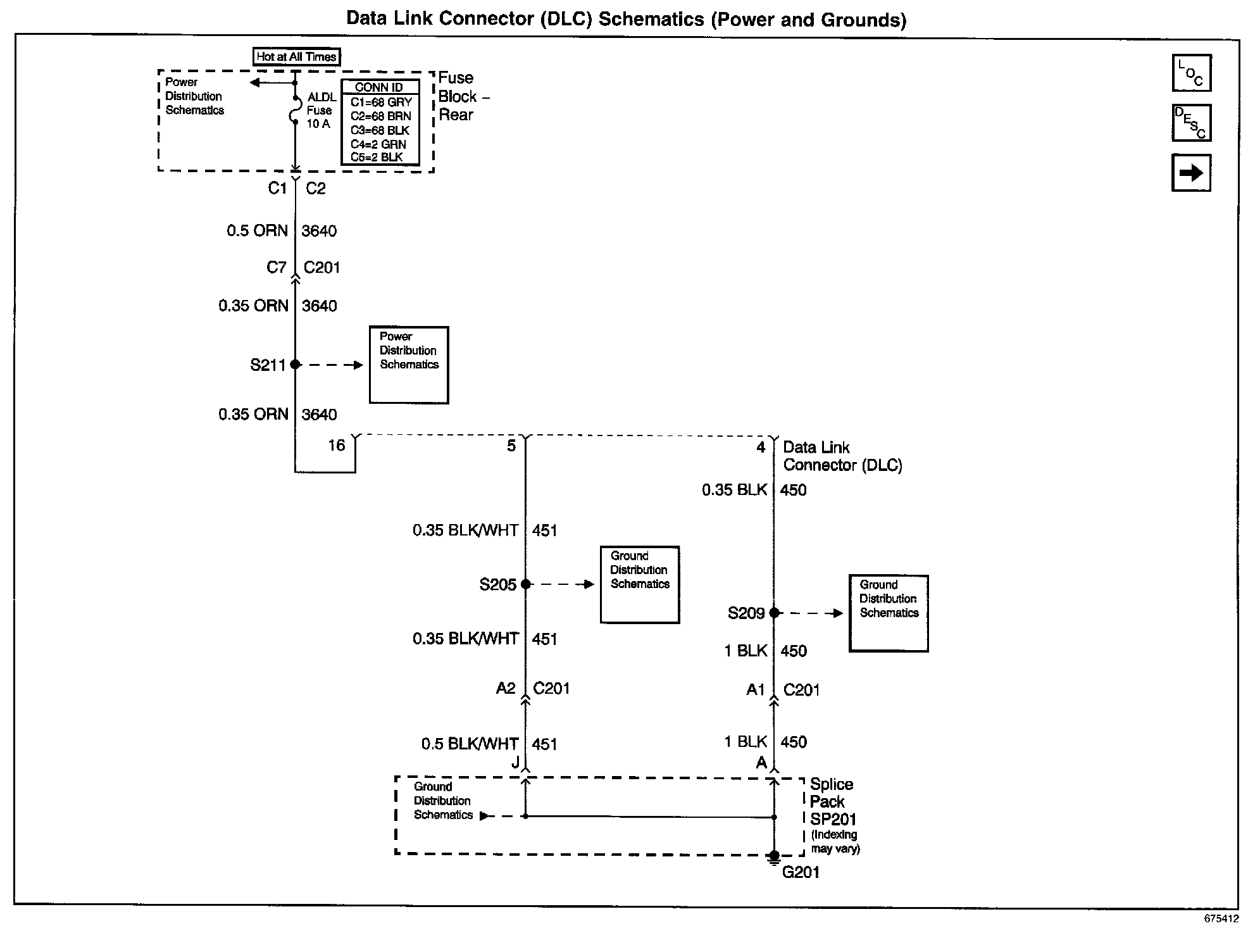

Data Link Connector (DLC) Schematics: Power And Grounds:

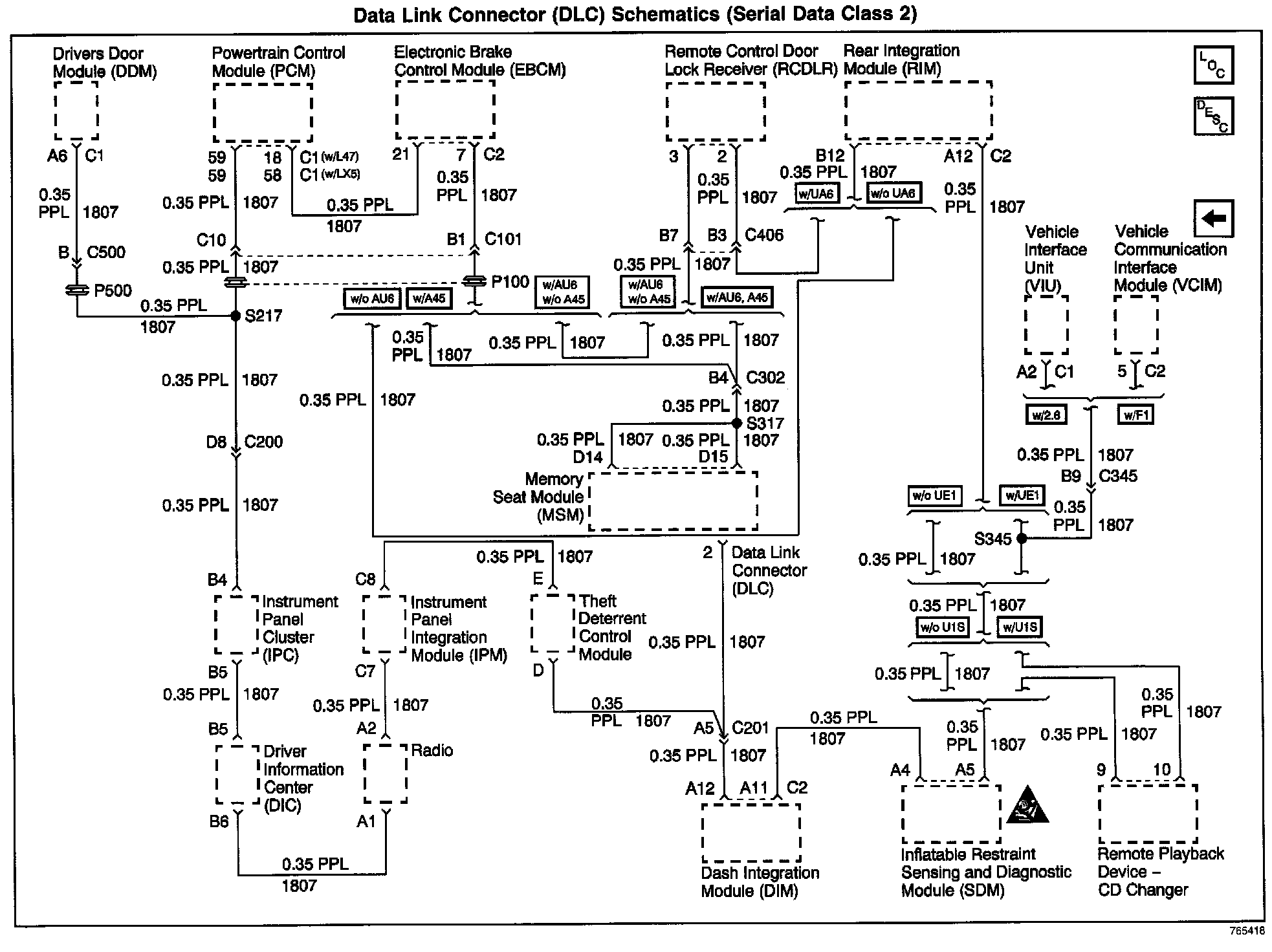

Data Link Connector (DLC) Schematics: Serial Data Class 2:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
