Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Class 2 Serial Data, MIL, DLC, UART >> 5 Volt and Low Reference

5 Volt and Low Reference

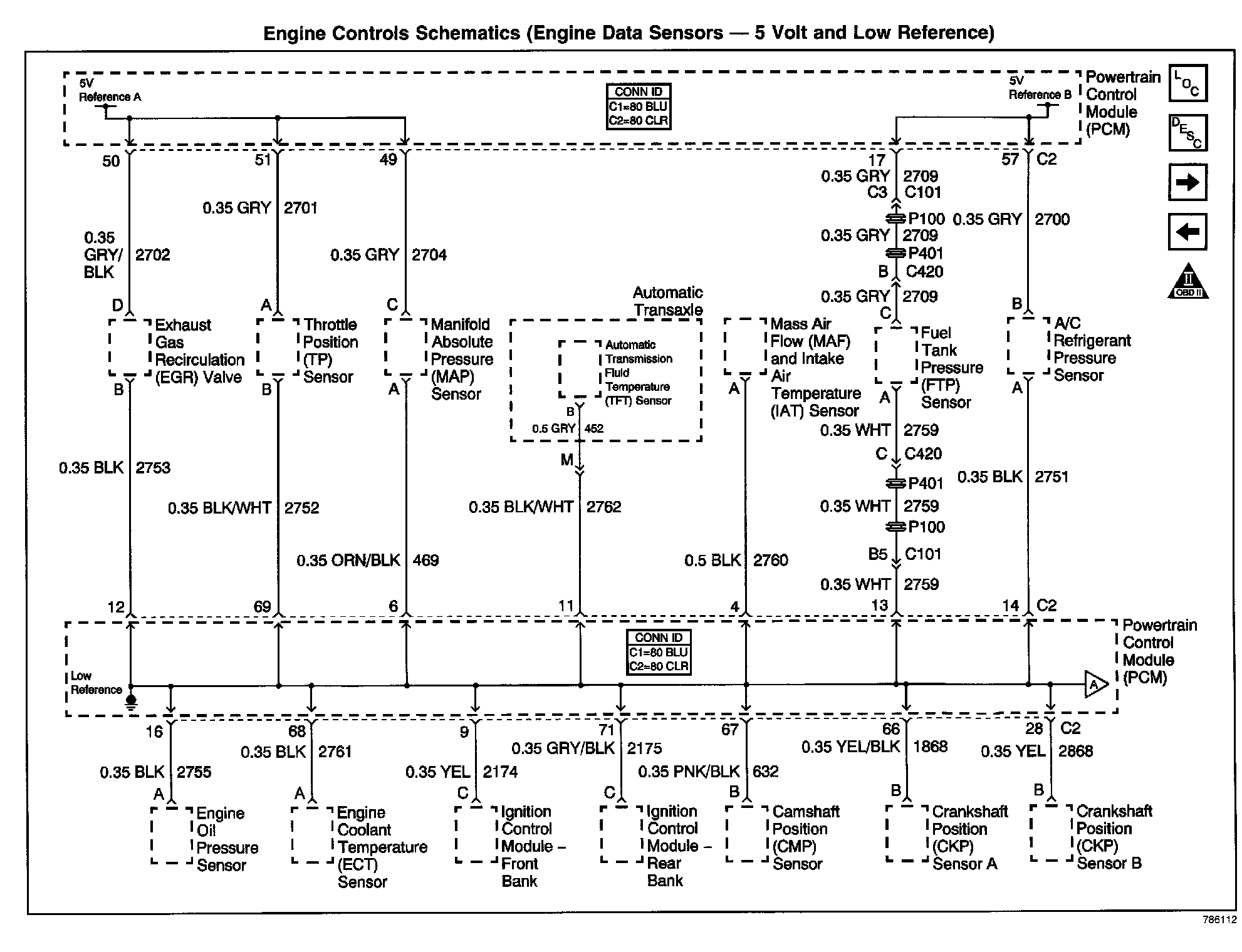

Engine Controls Schematics: Engine Data Sensors - 5 Volt And Low Reference:
