Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Emission Controls >> Single Secondary Air Injection

Single Secondary Air Injection

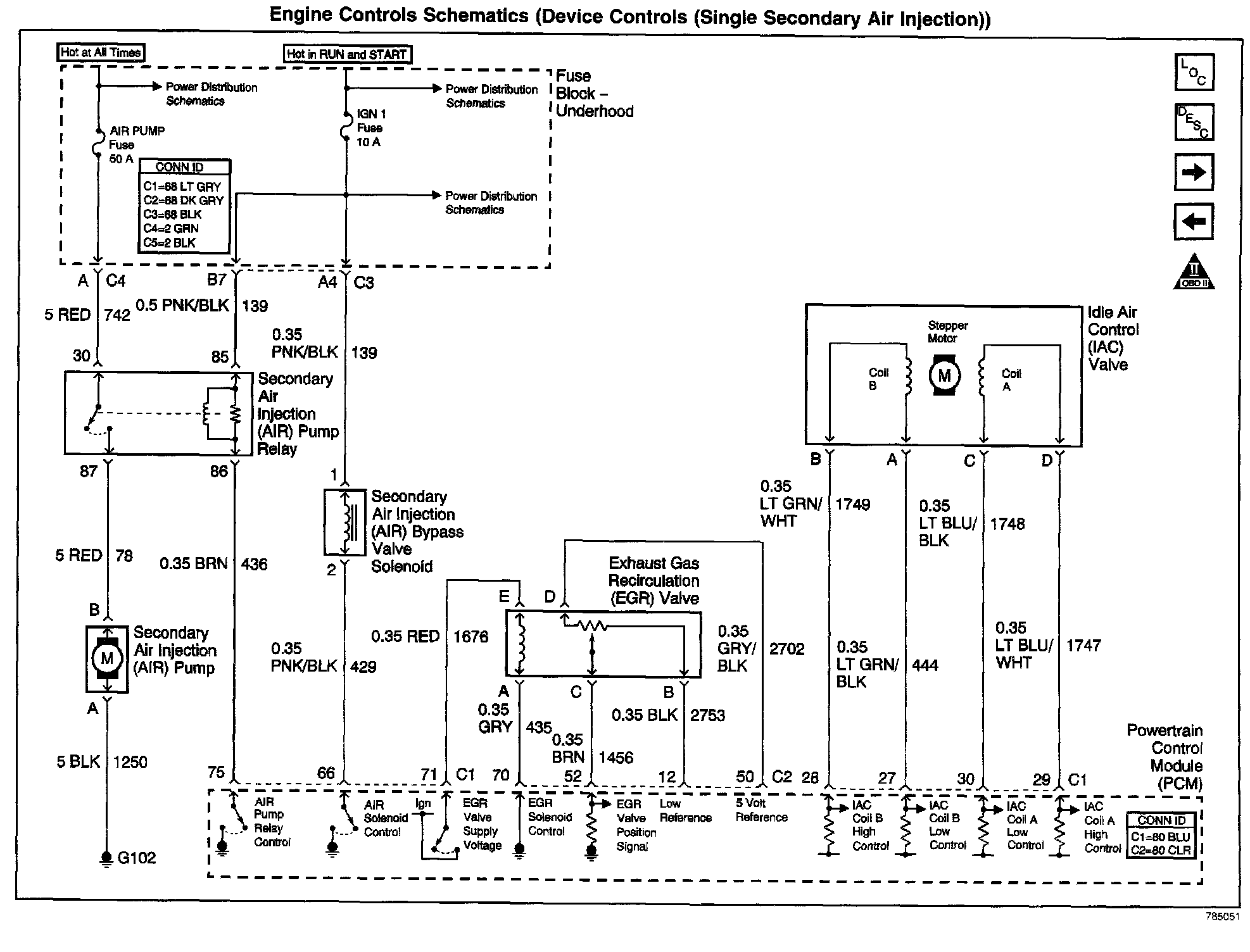

Engine Controls Schematics (Device Controls (Single Secondary Air Engine Controls Schematics: Device Controls (Single Secondary Air Injection):
