Headlamp Switch And Sunload Sensor Assembly

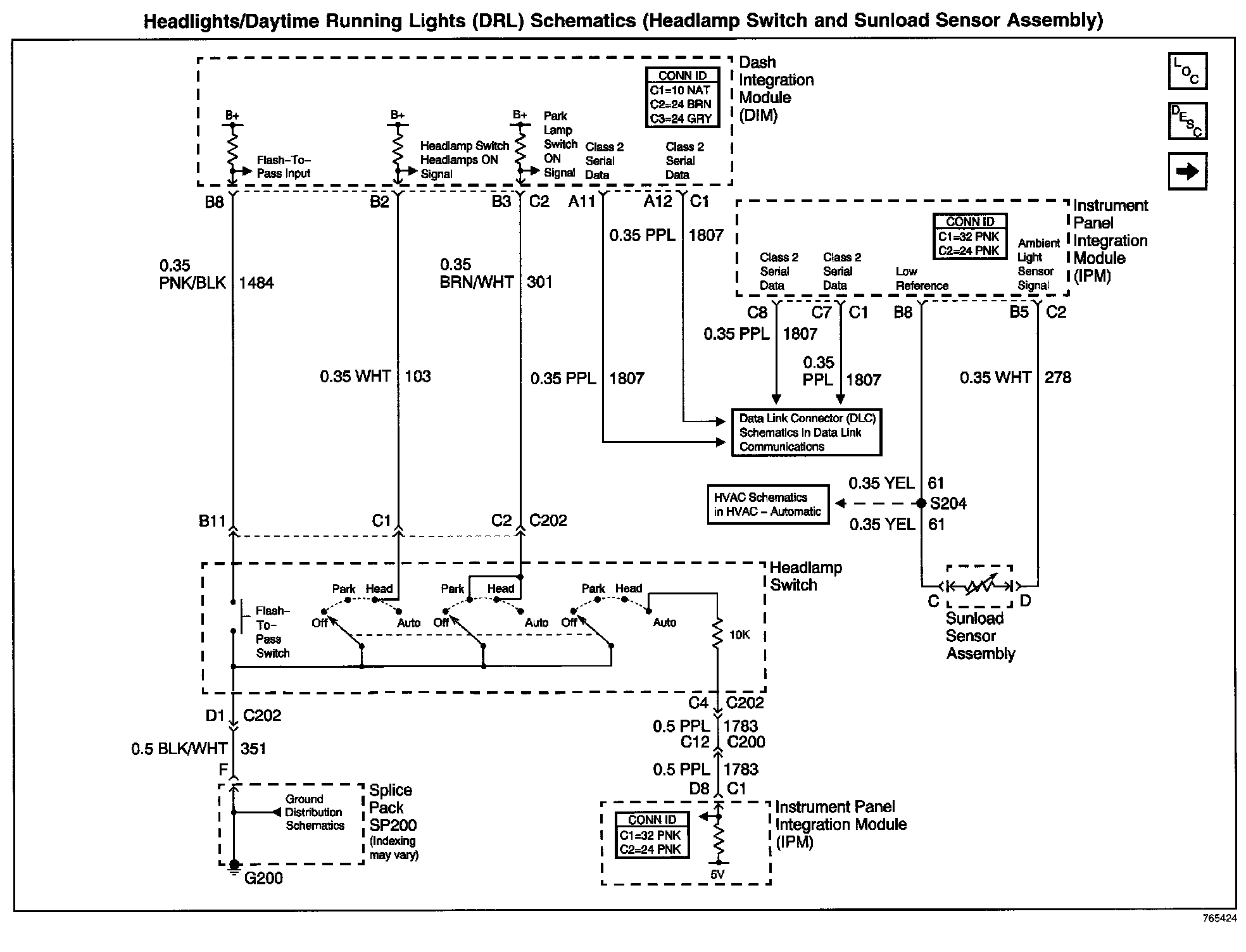

Headlights/Daytime Running Lights (DRL) Schematics: Headlamp Switch And Sunload Sensor Assembly:
