Turn Signal/Hazard Flasher Module Inputs

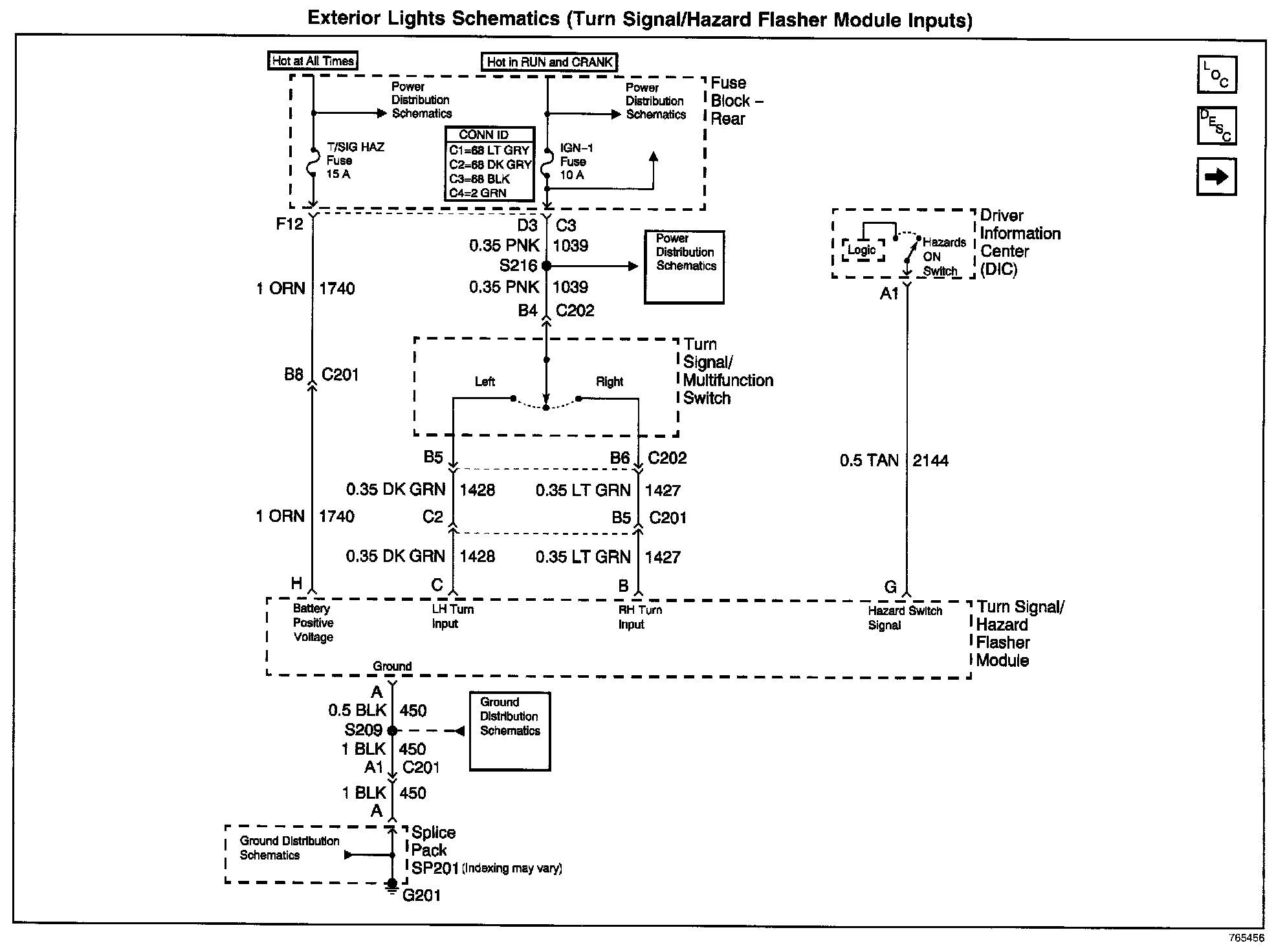

Exterior Lights Schematics: Turn Signal/Hazard Flasher Module Inputs:
