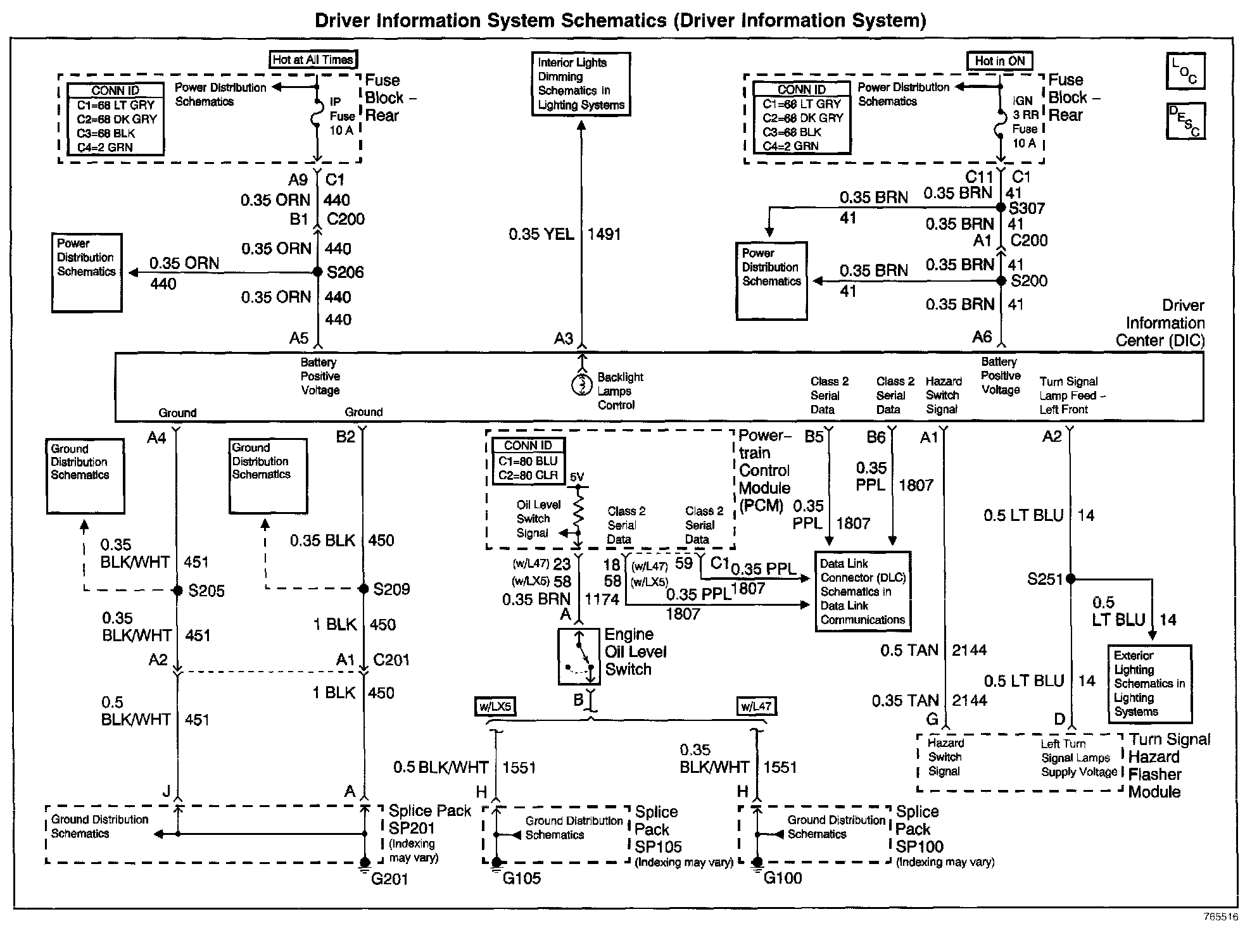

Driver Information System Schematics

Driver Information System Schematics: Driver Information System:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
