Passenger Door Module (PDM) Power And Ground

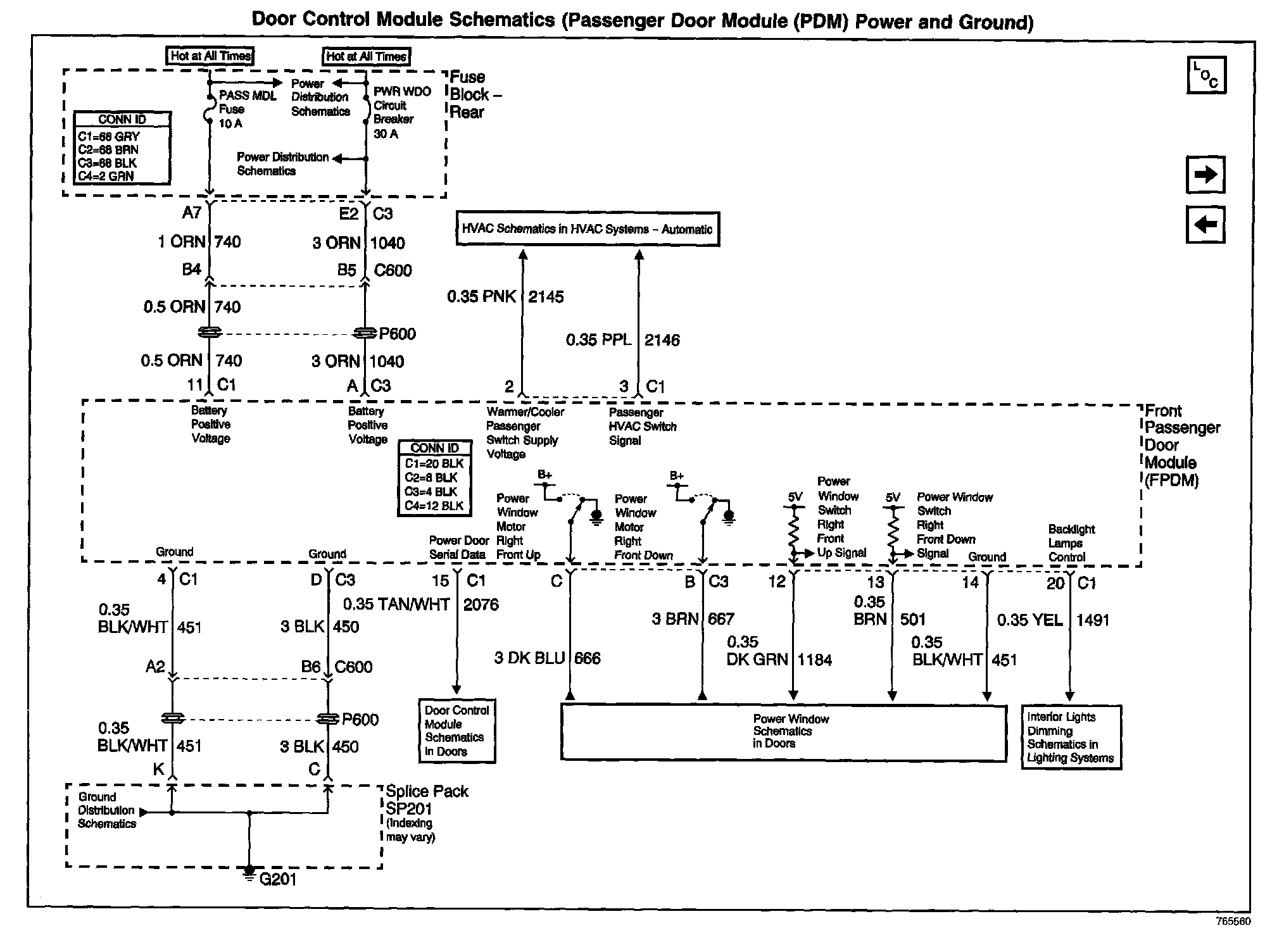

Door Control Module Schematics: Passenger Door Module (PDM) Power And Ground:
