Left Rear Door Module (LRDM) Power, Ground and I/O)
Left Rear Door Module (LRDM) Power, Ground and I/O)

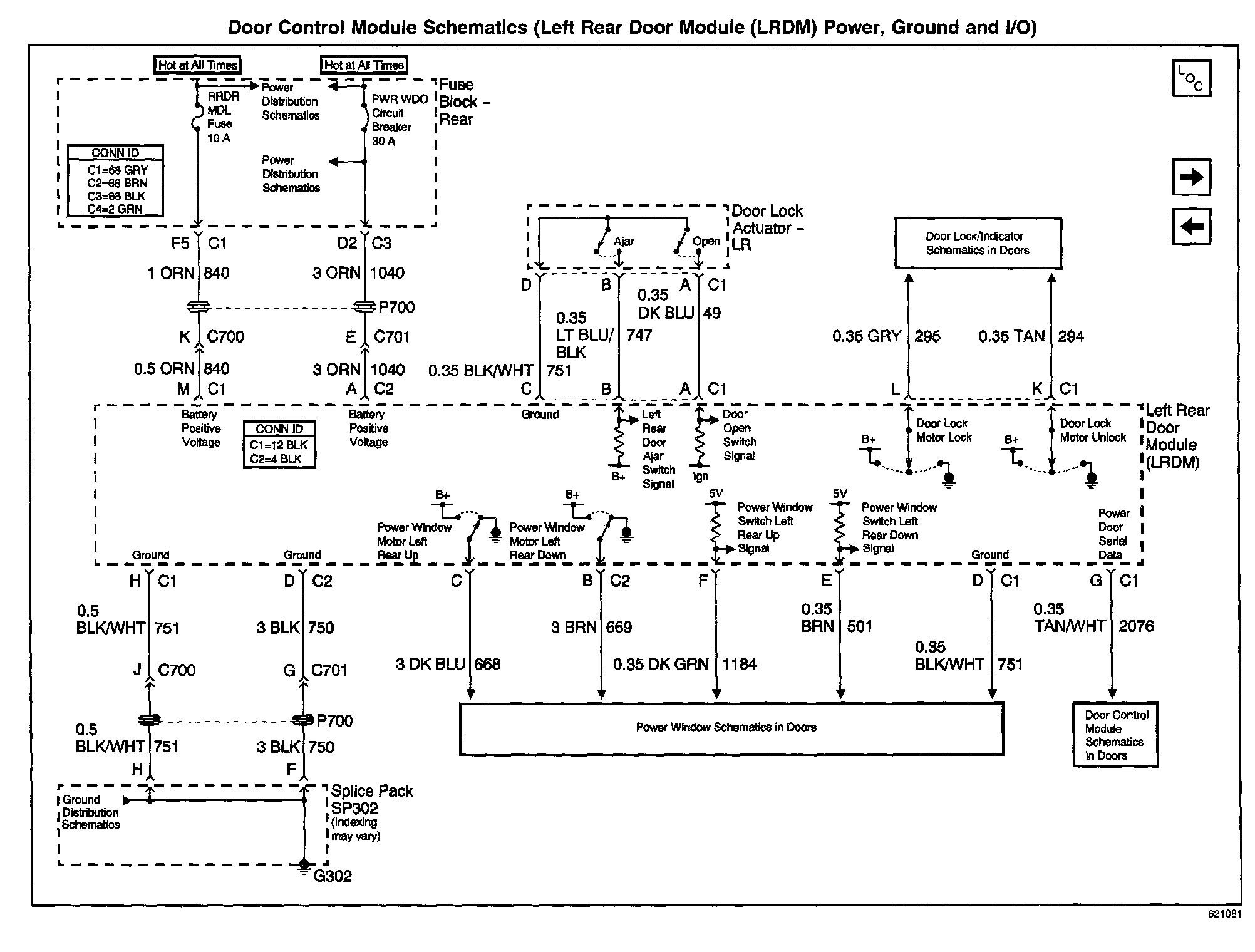

Door Control Module Schematics: Left Rear Door Module (LRDM) Power, Ground And I/O:
