FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2002
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
C500 - C503
>>

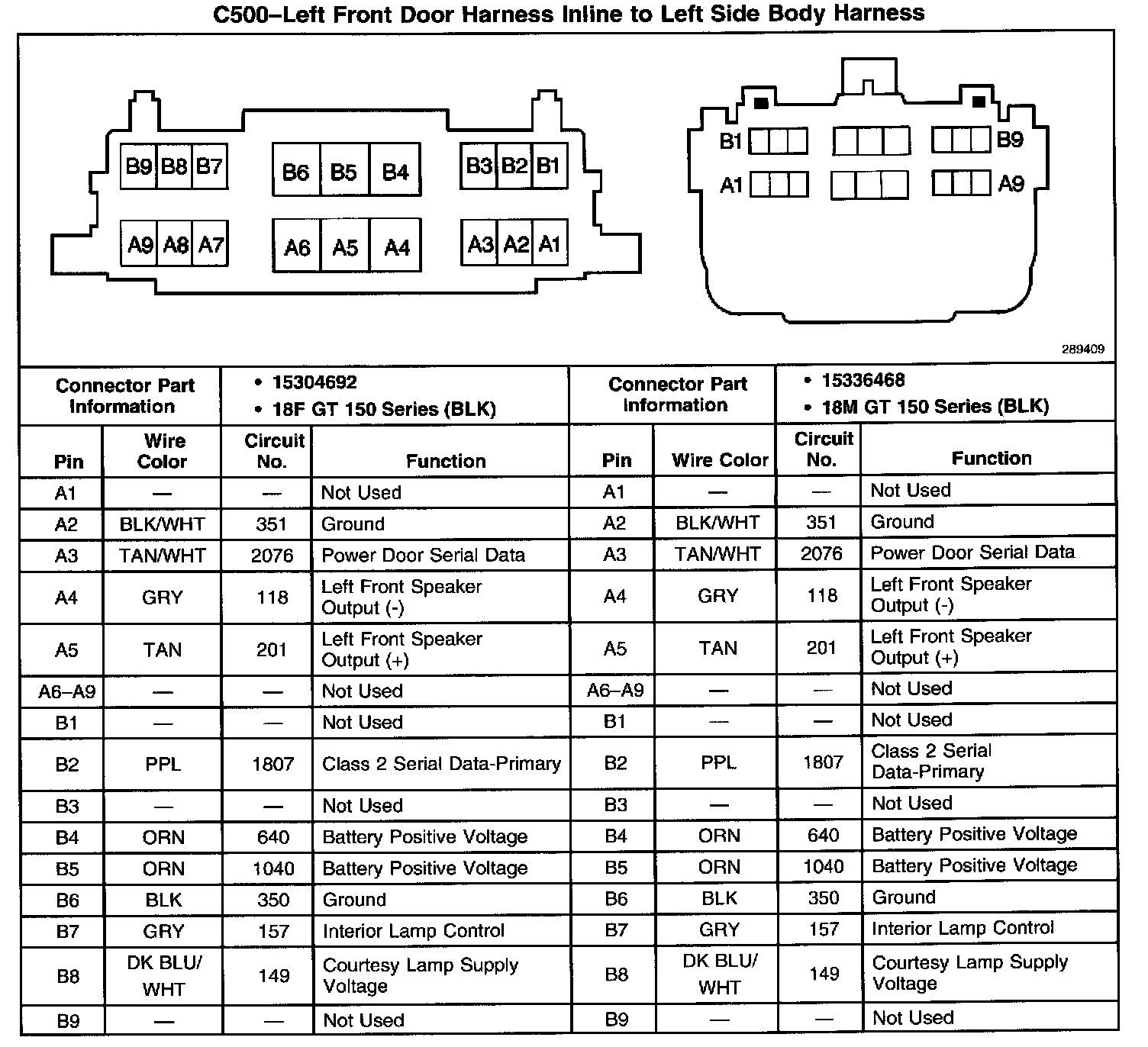

C500-Left Front Door Harness Inline to Left Side Body Harness
C500-Left Front Door Harness Inline to Left Side Body Harness
C500 - Left Front Door Harness Inline To Left Side Body Harness:
