C450-Rear Shelf Harness Inline to Entrapment Protection SEN Jumper Harness
C450-Rear Shelf Harness Inline to Entrapment Protection SEN Jumper Harness

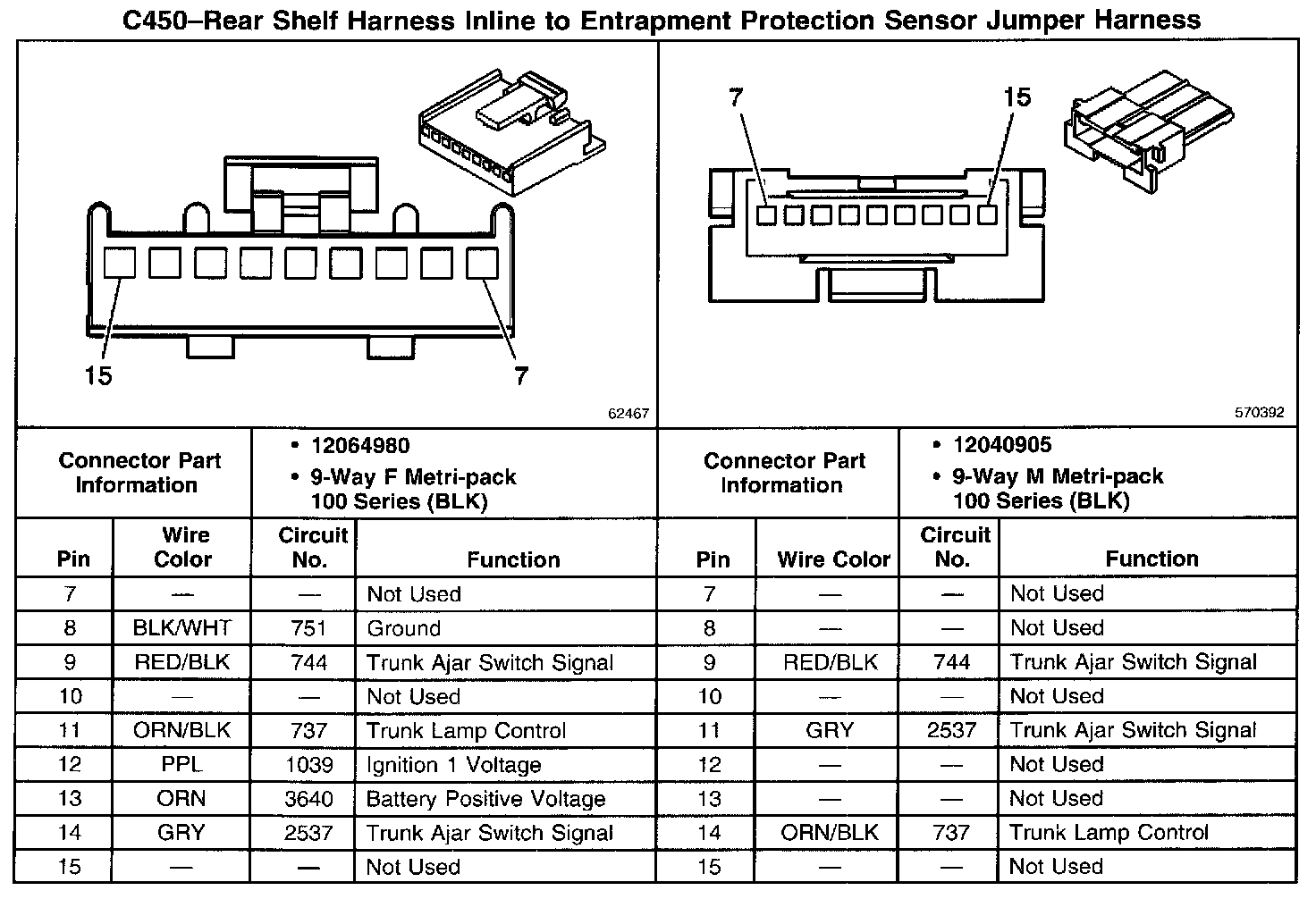

C450 - Rear Shelf Harness Inline To Entrapment Protection Sensor Jumper Harness:
