C402-RH Tail Lamp Harness Inline to RH Body Harness
C402-RH Tail Lamp Harness Inline to RH Body Harness

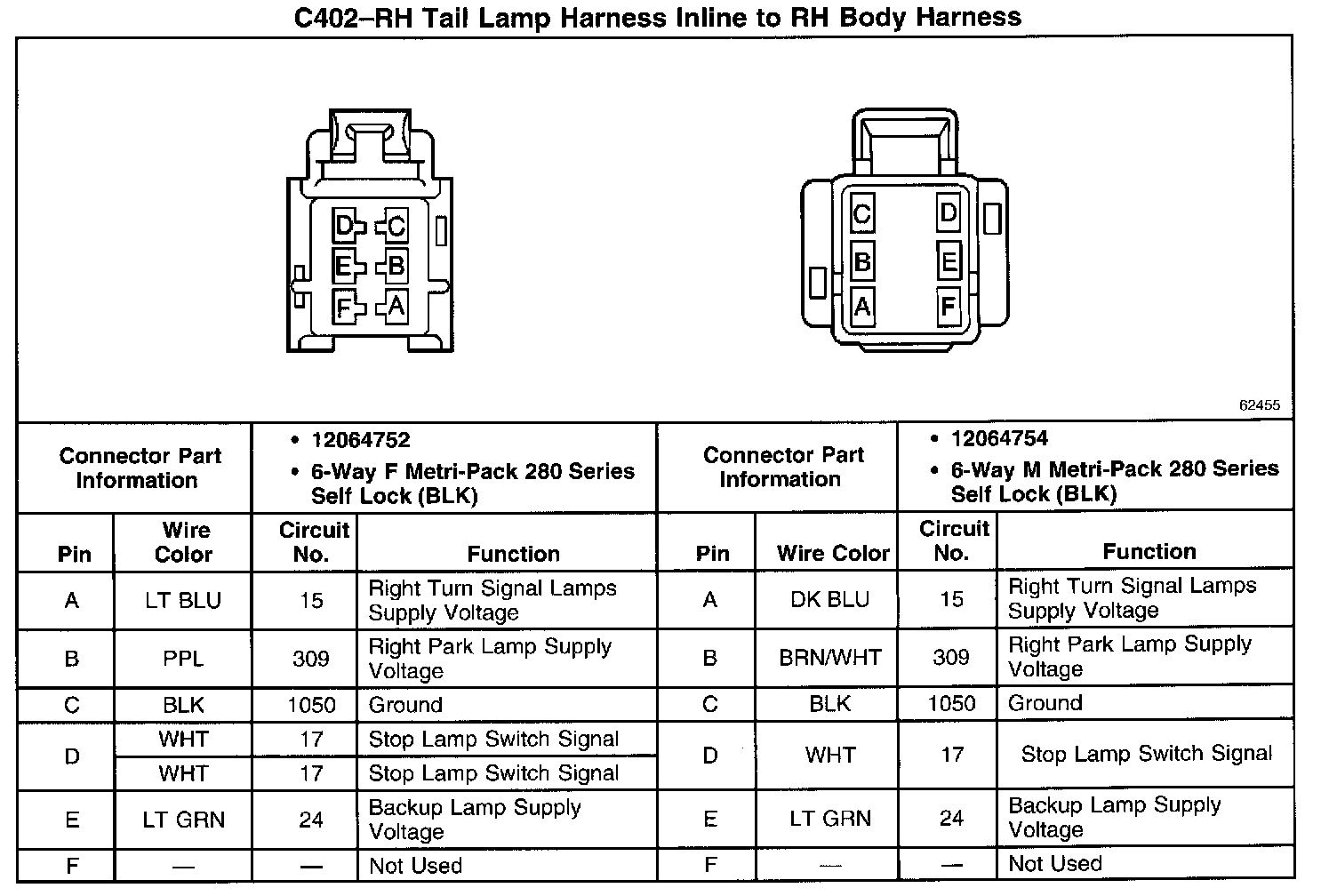

C402 - RH Tail Lamp Harness Inline To RH Body Harness:
