C205-IP Harness Inline to HVAC Harness
C205-IP Harness Inline to HVAC Harness

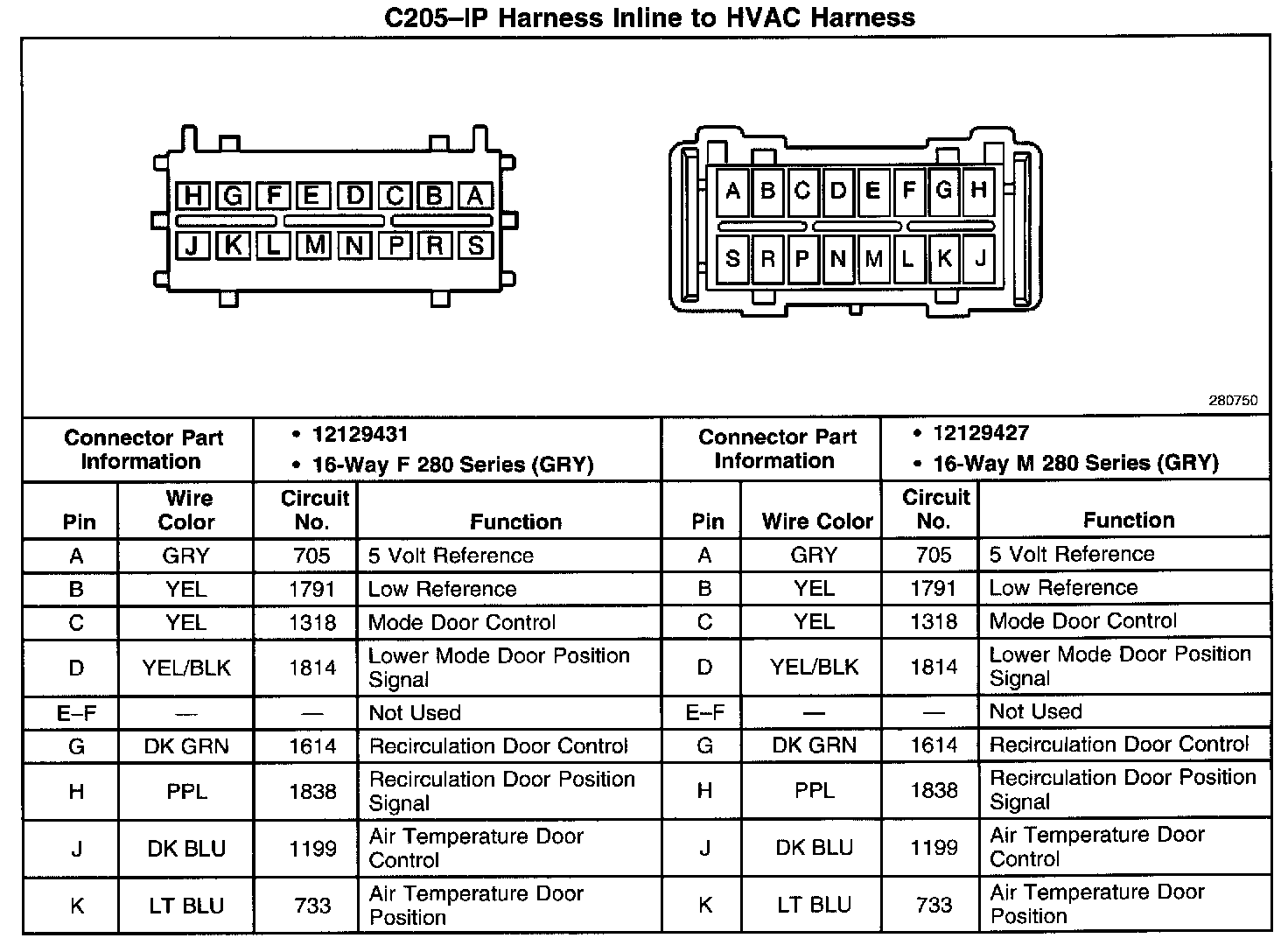

C205 - IP Harness Inline To HVAC Harness Part 1:

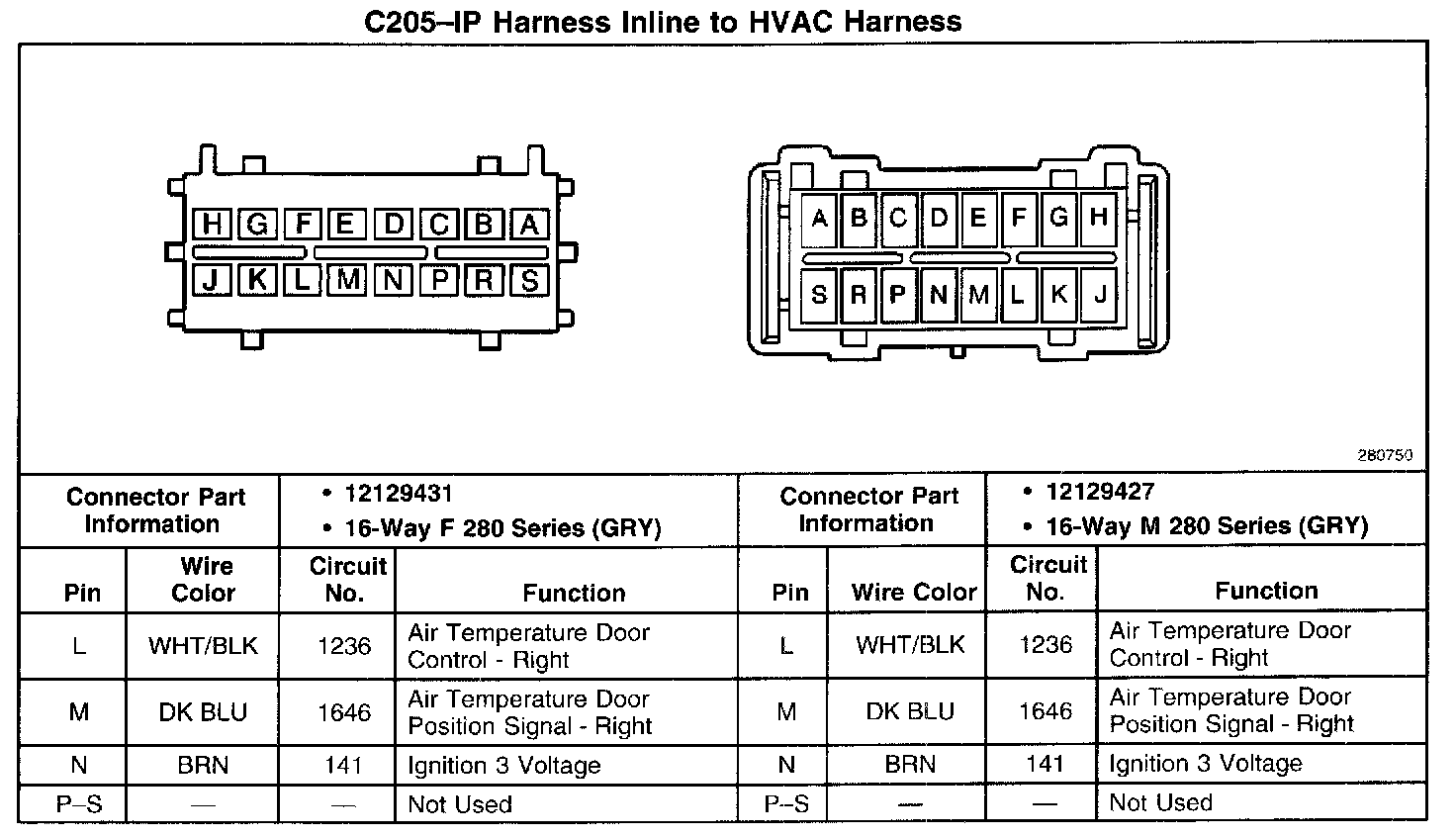

C205 - IP Harness Inline To HVAC Harness Part 2:
