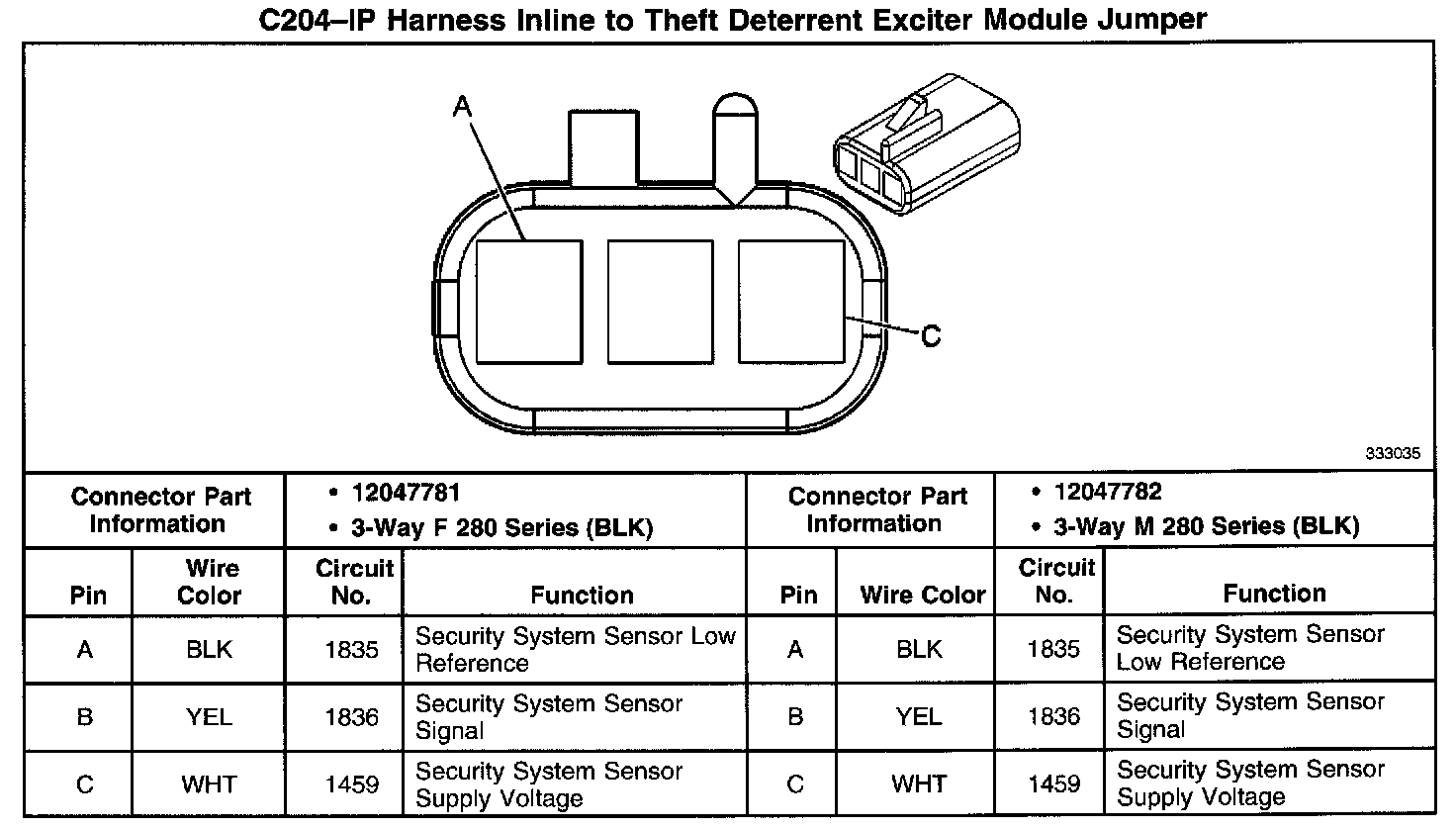

C204-IP Harness Inline to Theft Deterrent Exciter Module Jumper
C204-IP Harness Inline to Theft Deterrent Exciter Module Jumper
C204 - IP Harness Inline To Theft Deterrent Exciter Module Jumper:
