C202-LH Body Harness Inline to Steering Column Harness
C202-LH Body Harness Inline to Steering Column Harness

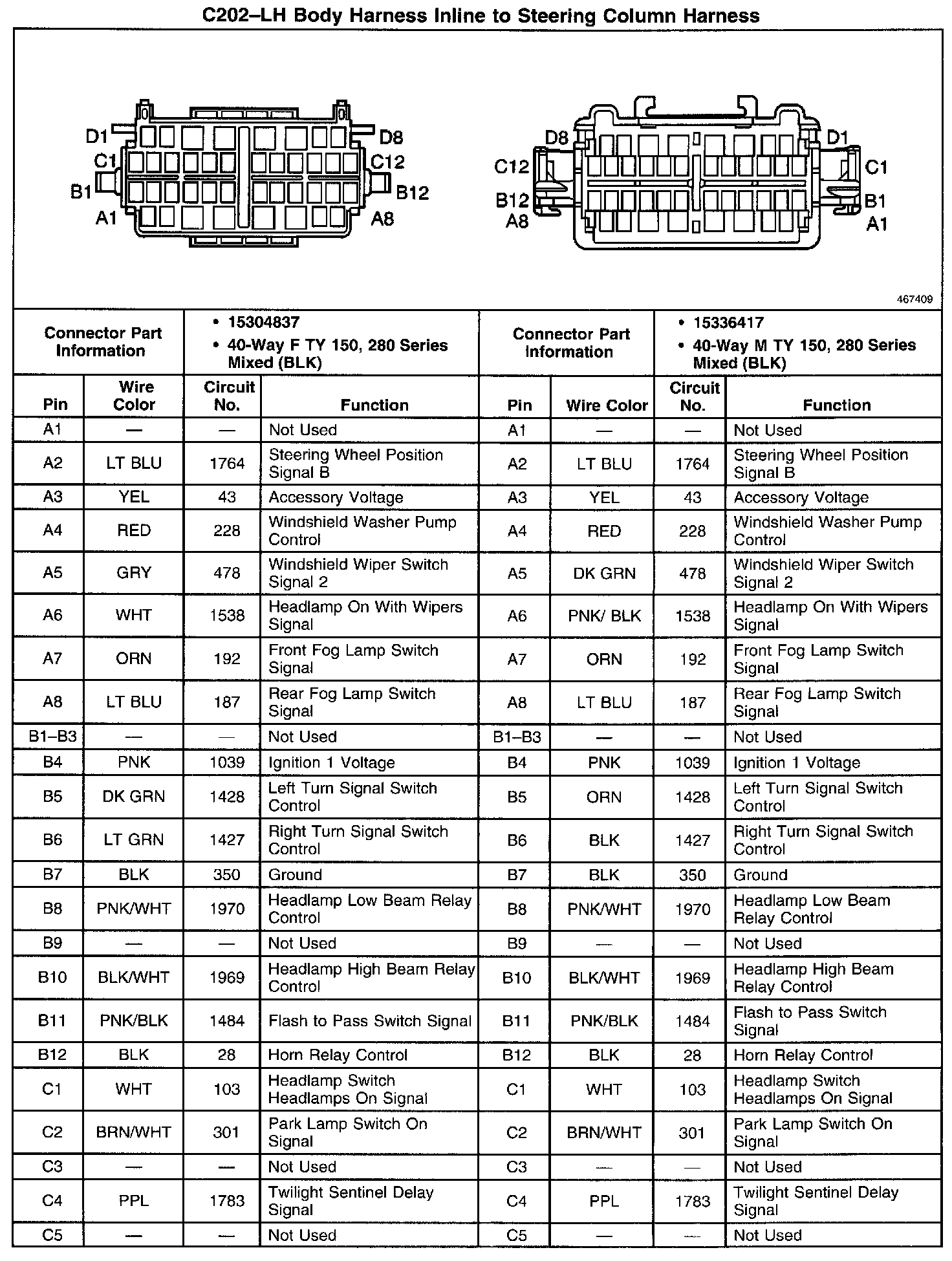

C202 - LH Body Harness Inline To Steering Column Harness Part 1:

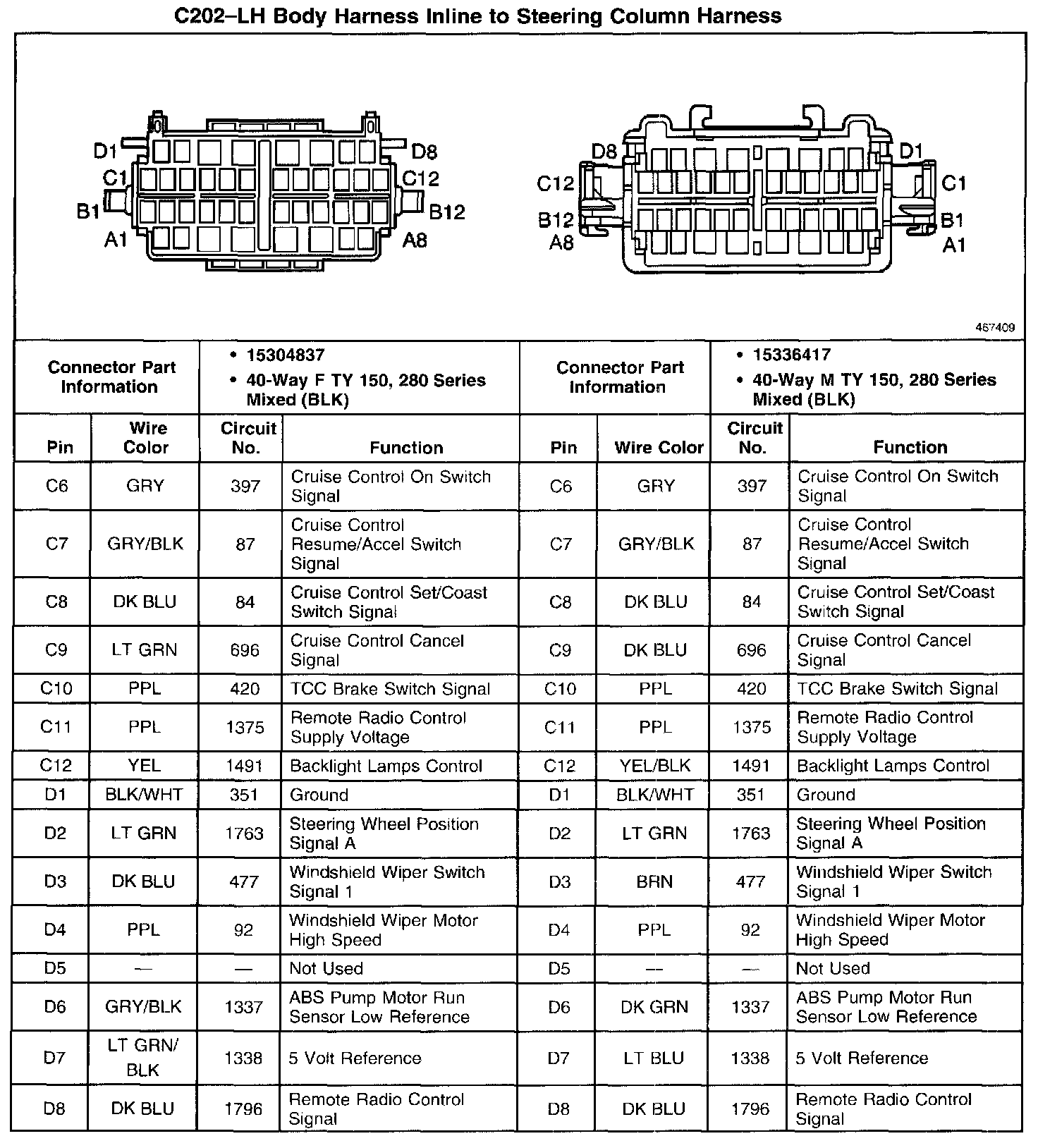

C202 - LH Body Harness Inline To Steering Column Harness Part 2:
