C109-Forward Lamp Harness Inline to RH Headlamp Harness
C109-Forward Lamp Harness Inline to RH Headlamp Harness

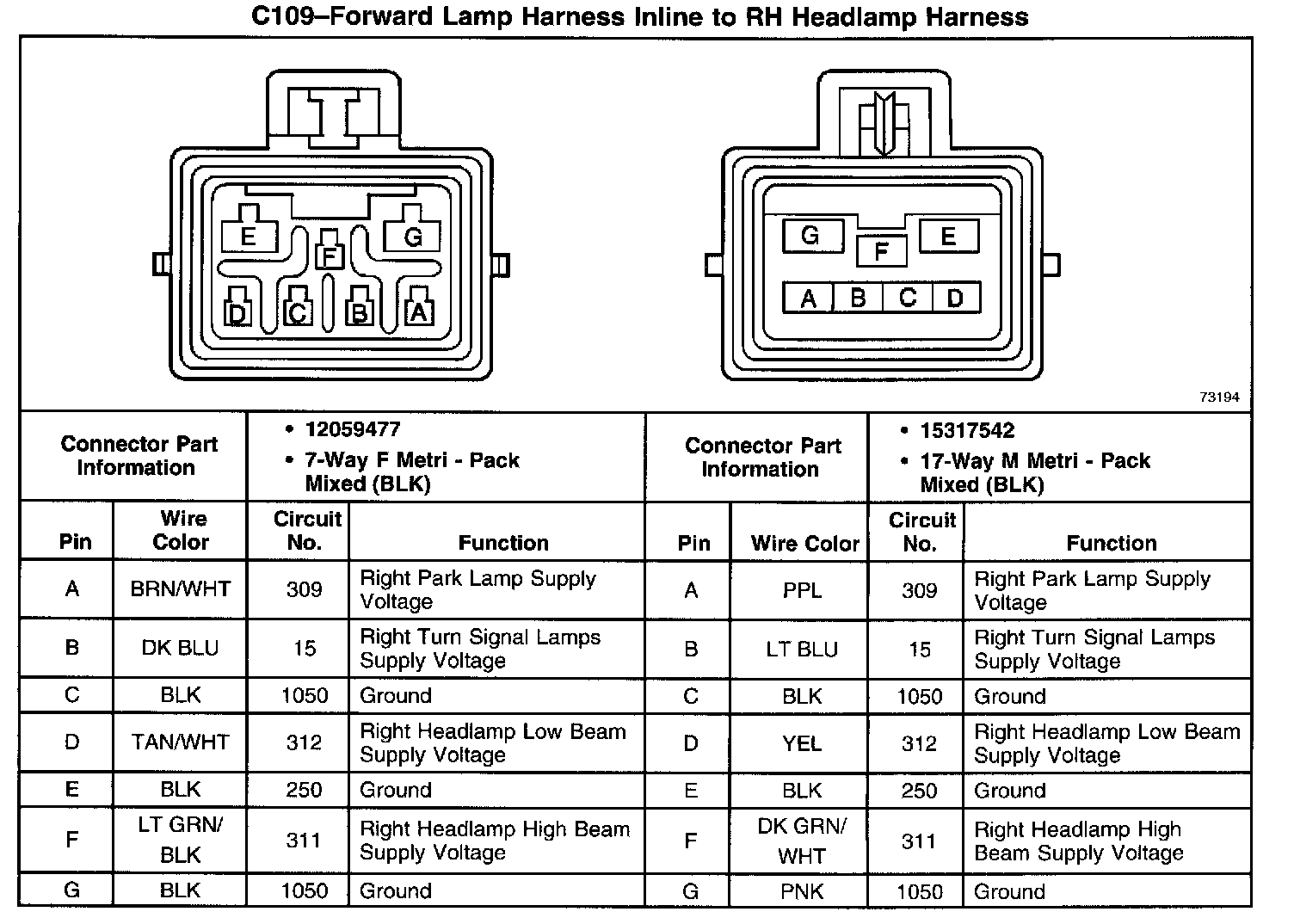

C109 - Forward Lamp Harness Inline To RH Headlamp Harness:
