C102-RH Body Harness Inline to Forward Lamp Harness

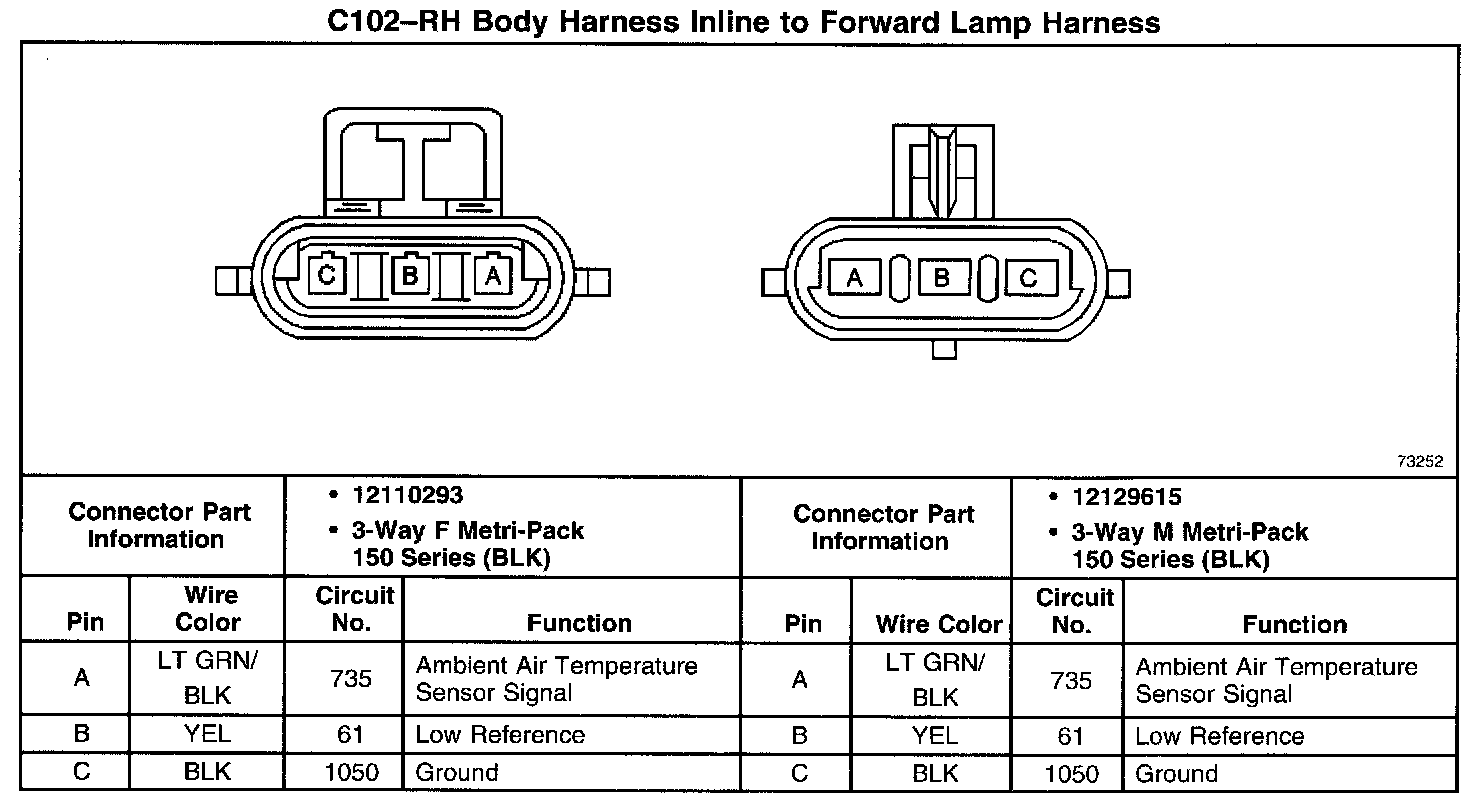

C102 - RH Body Harness Inline To Forward Lamp Harness:
