Fuse Block - Rear

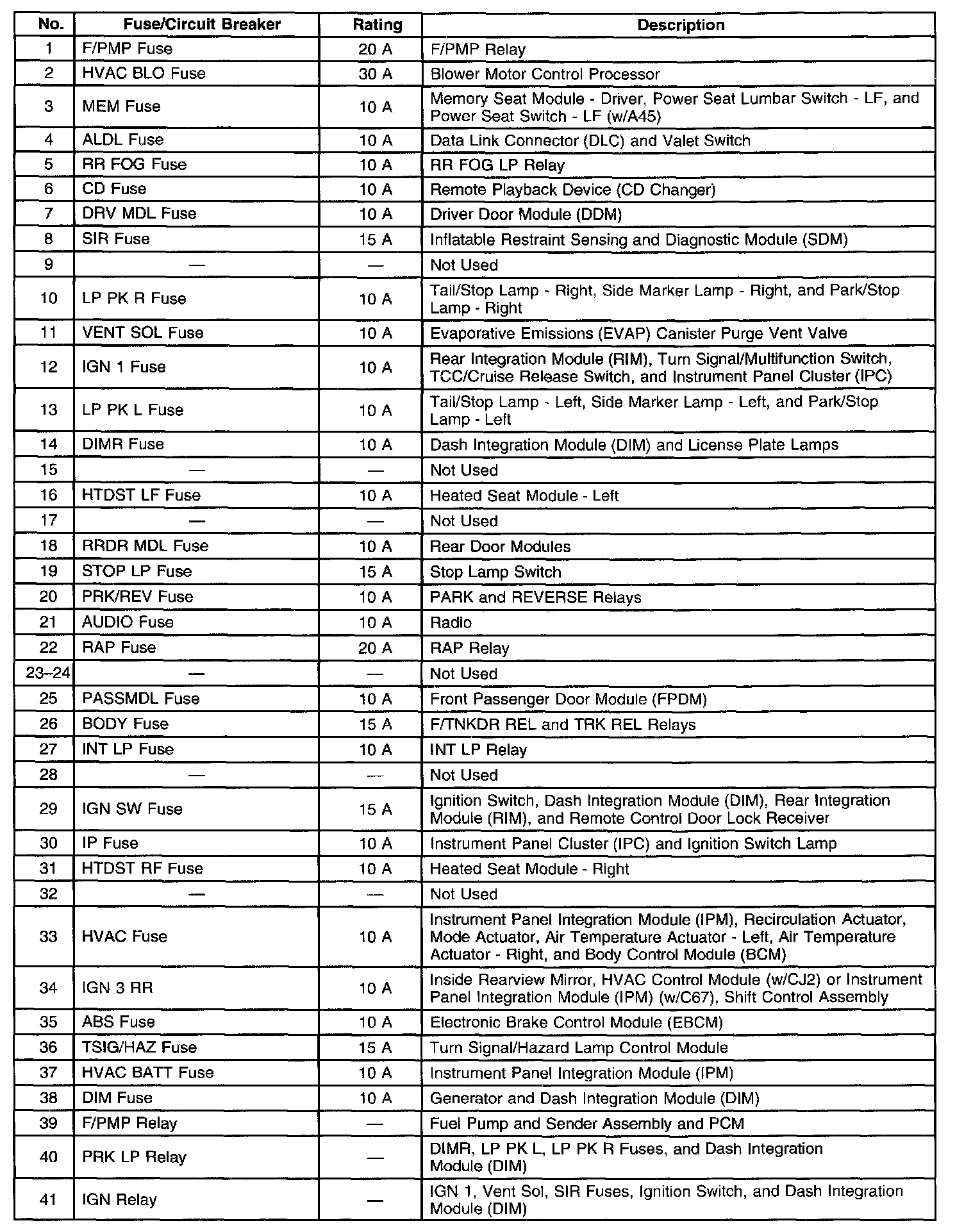

Fuse Block - Rear Part 1:

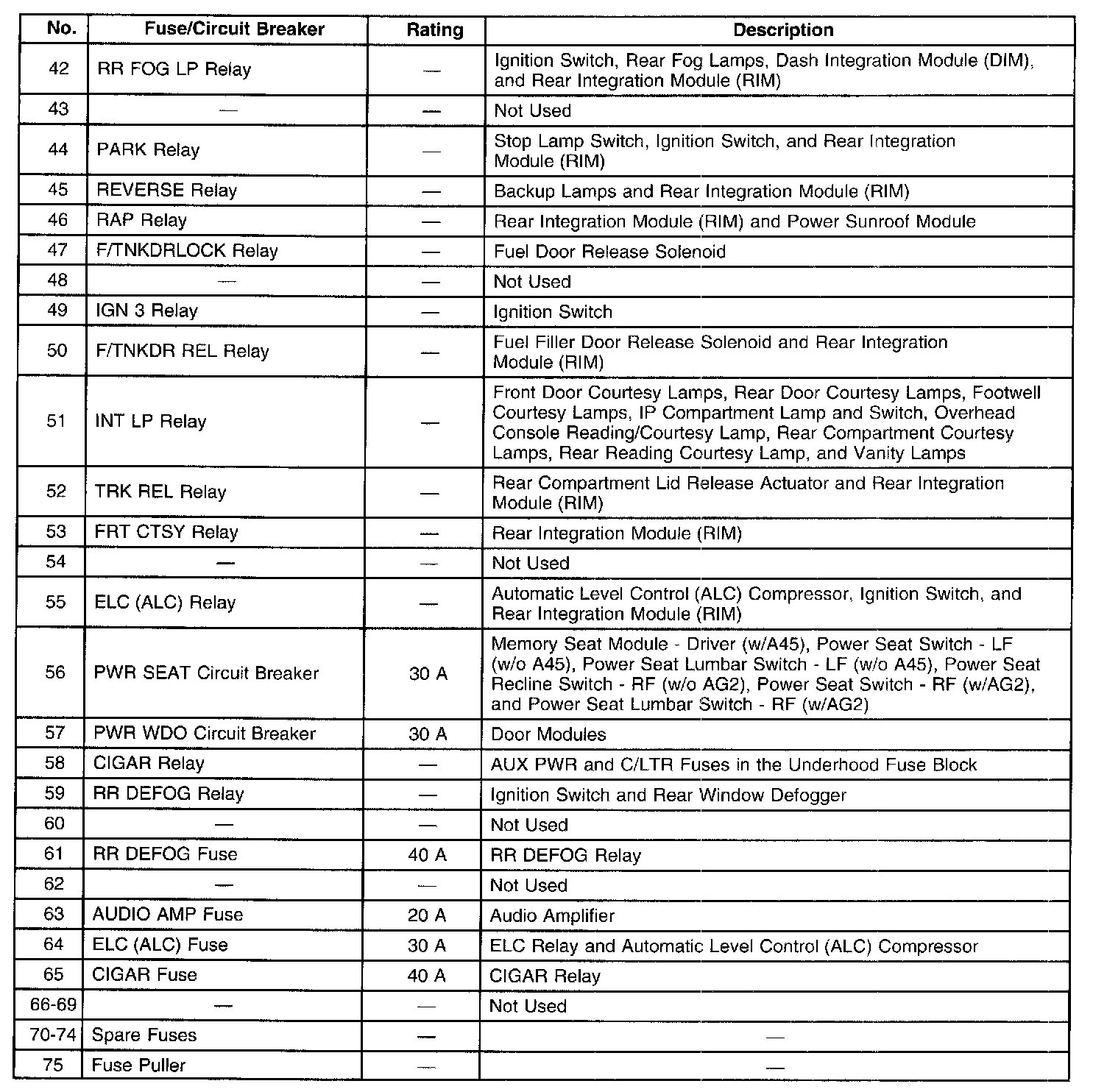

Fuse Block - Rear Part 2:

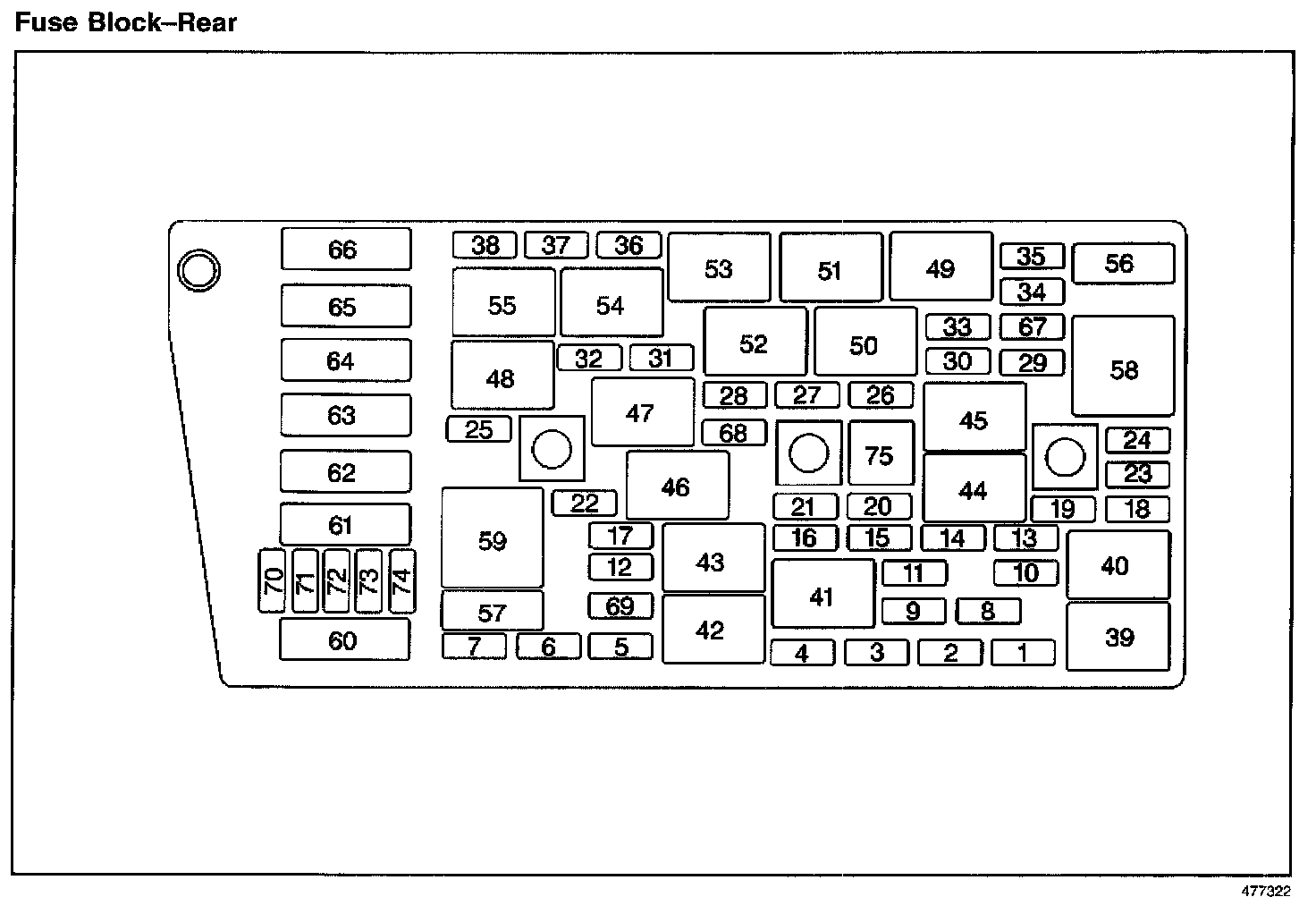

Fuse Block - Rear Part 3:

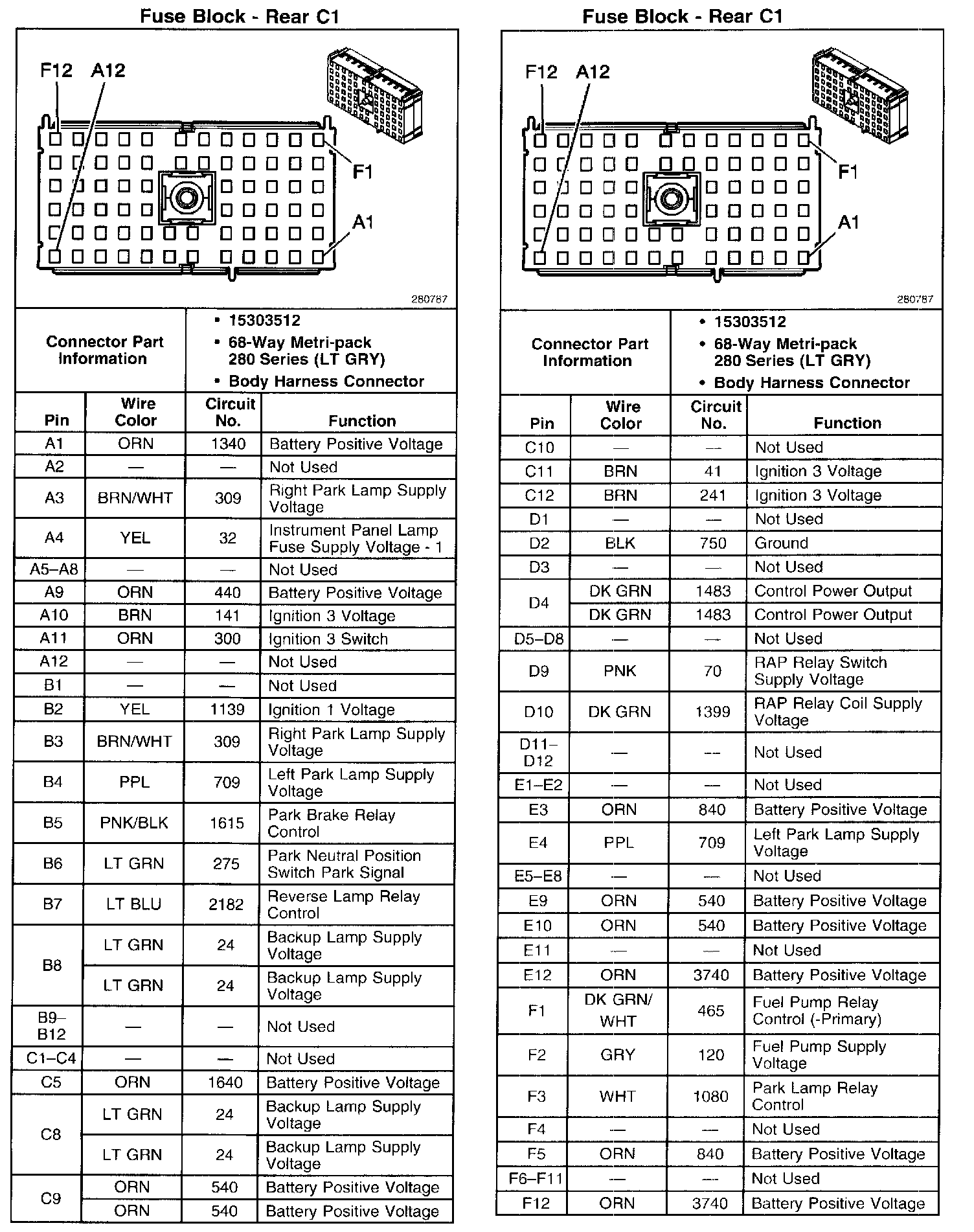

Fuse Block - Rear C1:

Fuse Block - Rear C2:

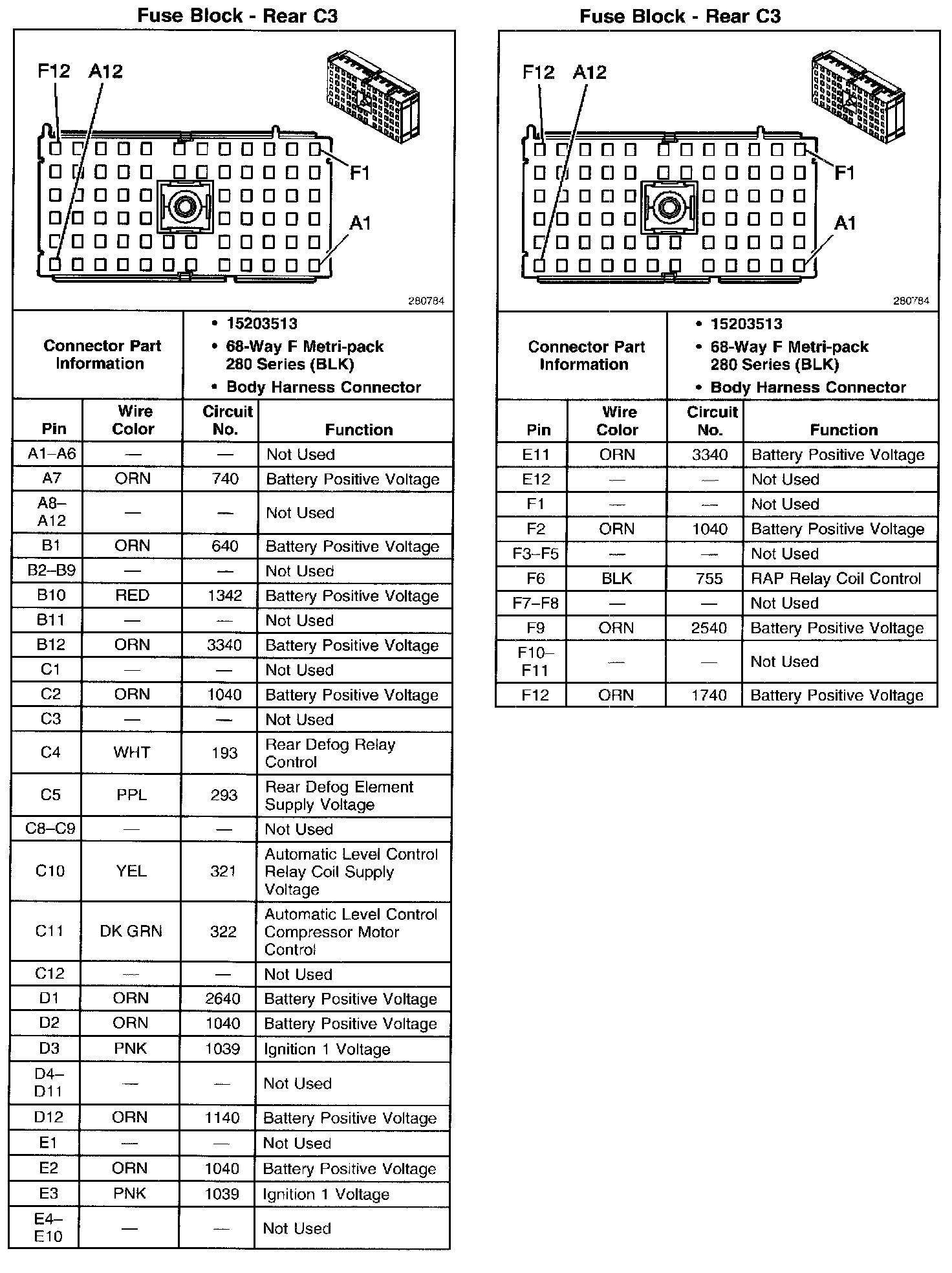

Fuse Block - Rear C3:

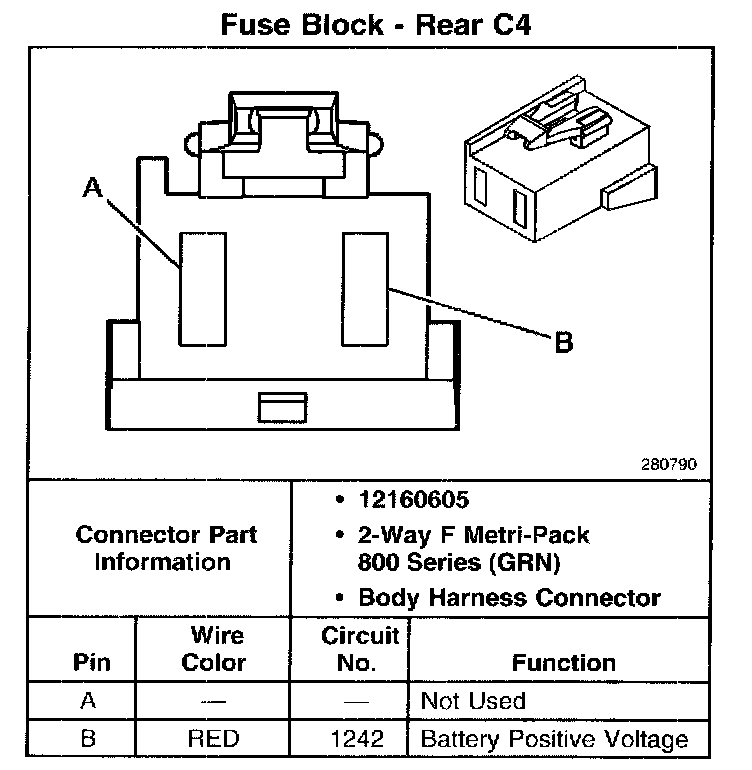

Fuse Block - Rear C4:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
