Ignition Control Module

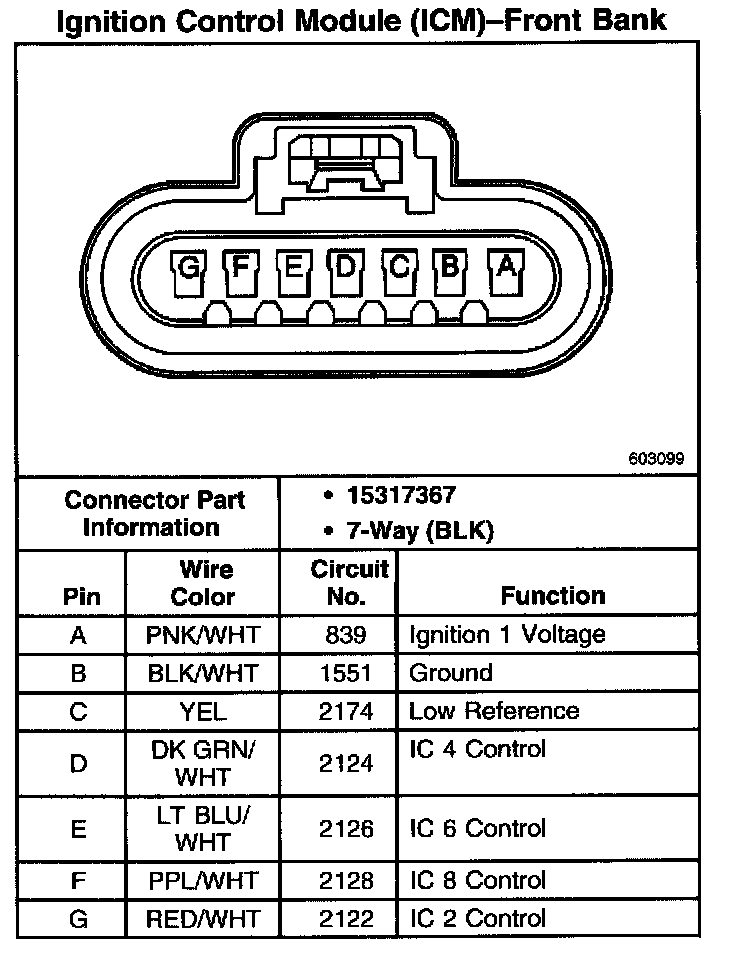

Ignition Control Module (ICM)-Front Bank:

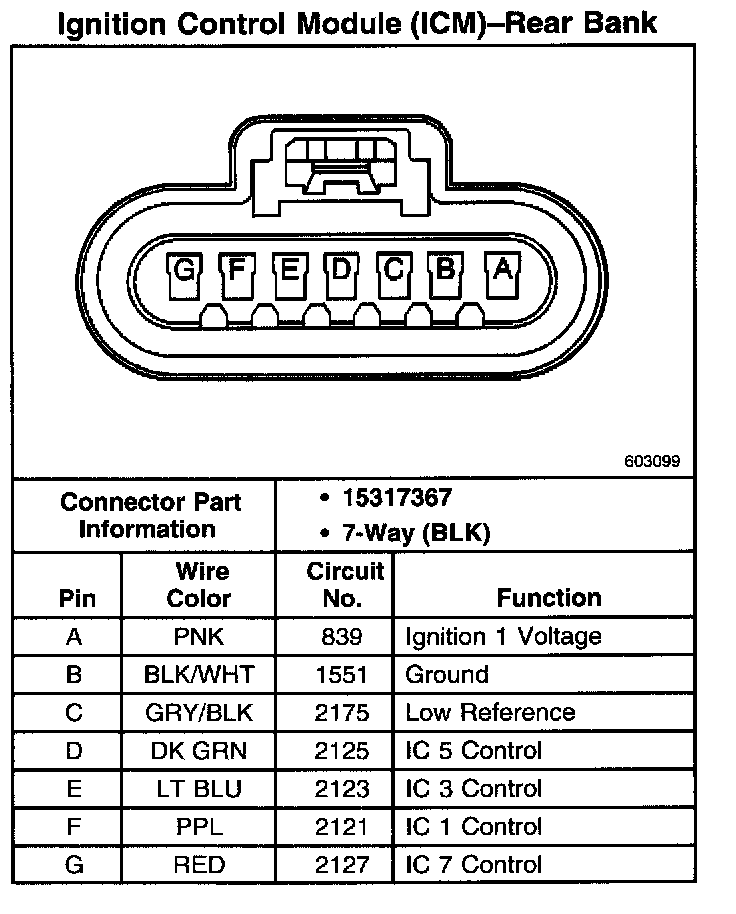

Ignition Control Module (ICM)-Rear Bank:
