Vehicle Interface Unit (VIU)

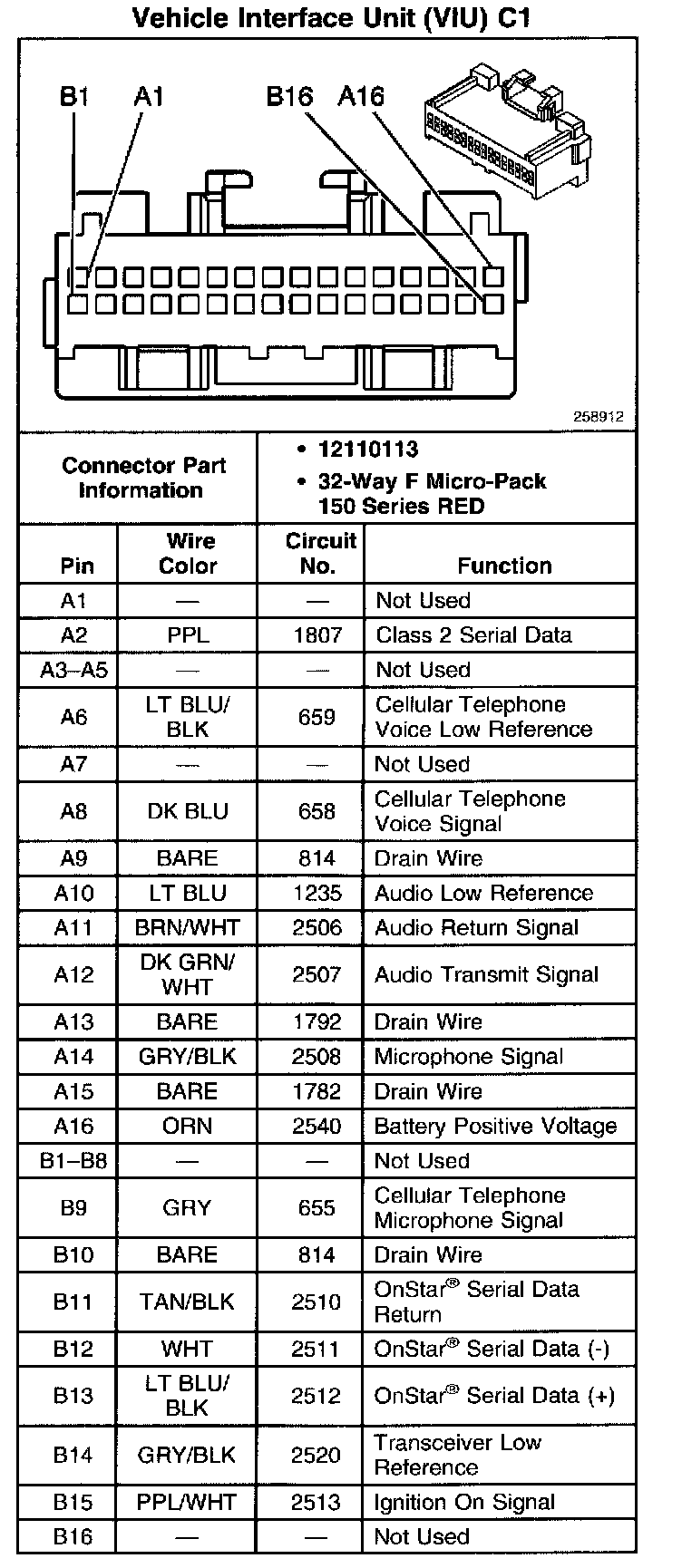

Vehicle Interface Unit (VIU) C1:

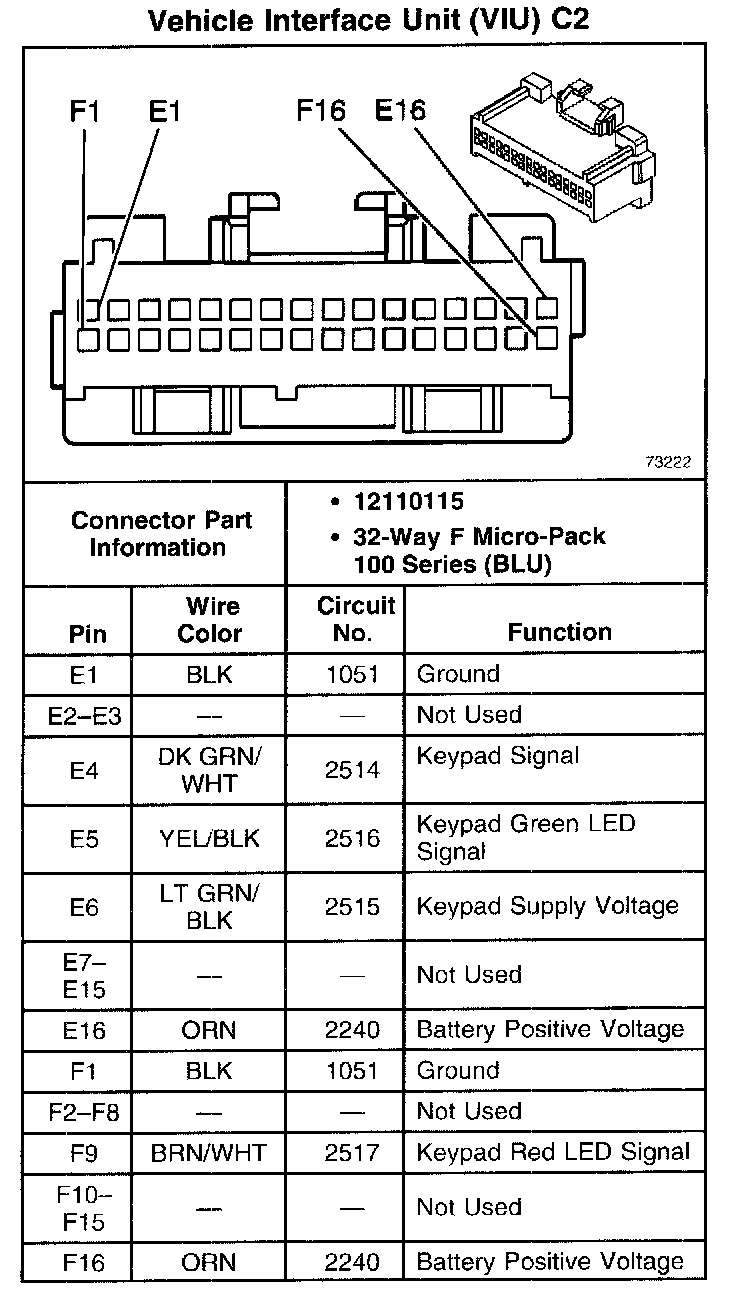

Vehicle Interface Unit (VIU) C2:

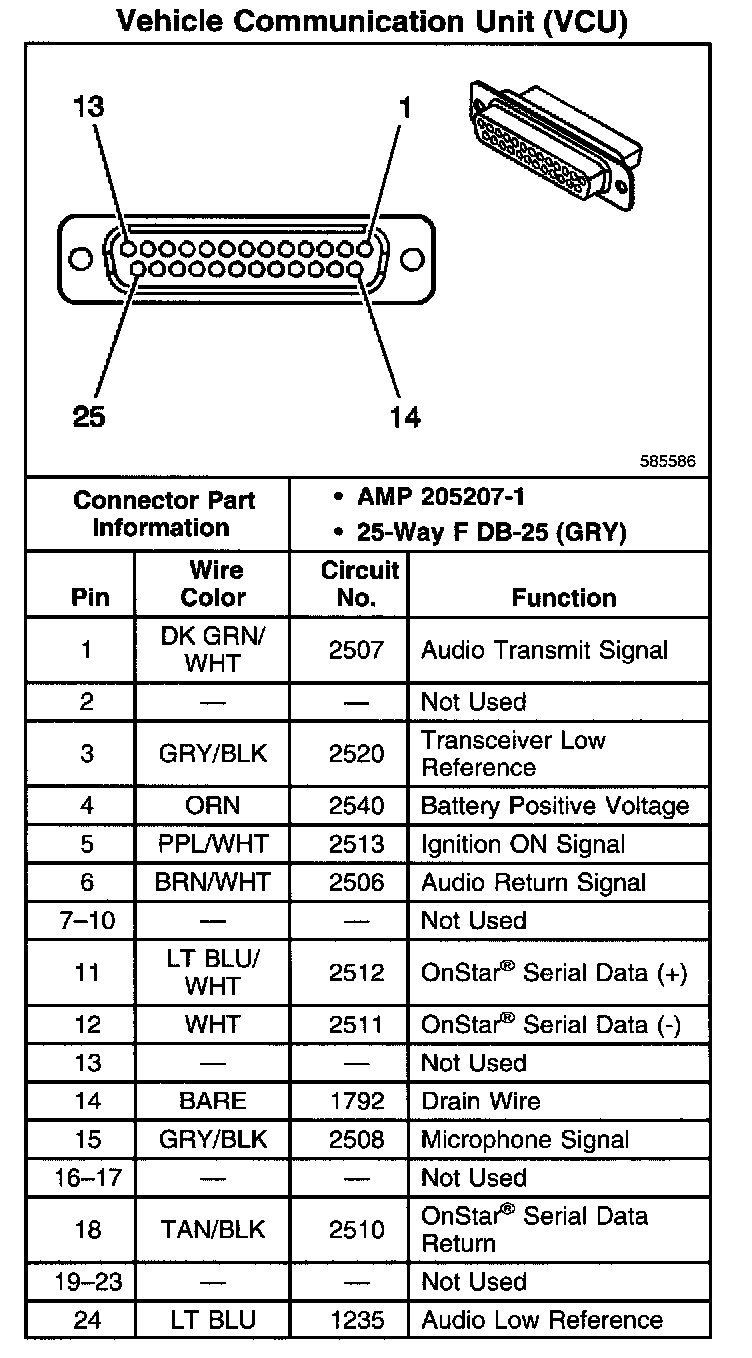

Vehicle Communication Unit (VCU):
