START 1 Relay - 36

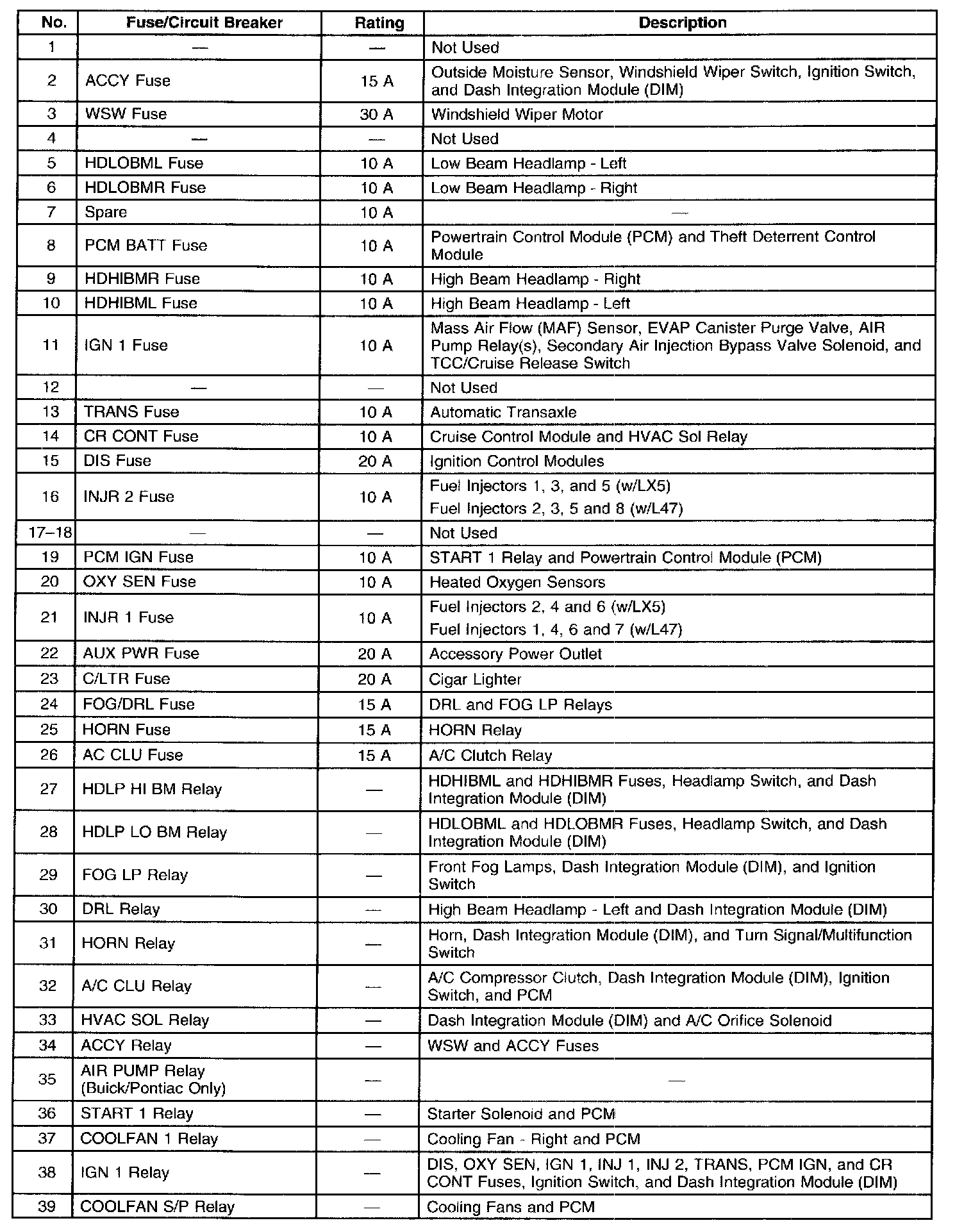

Fuse Block - Underhood Part 1:

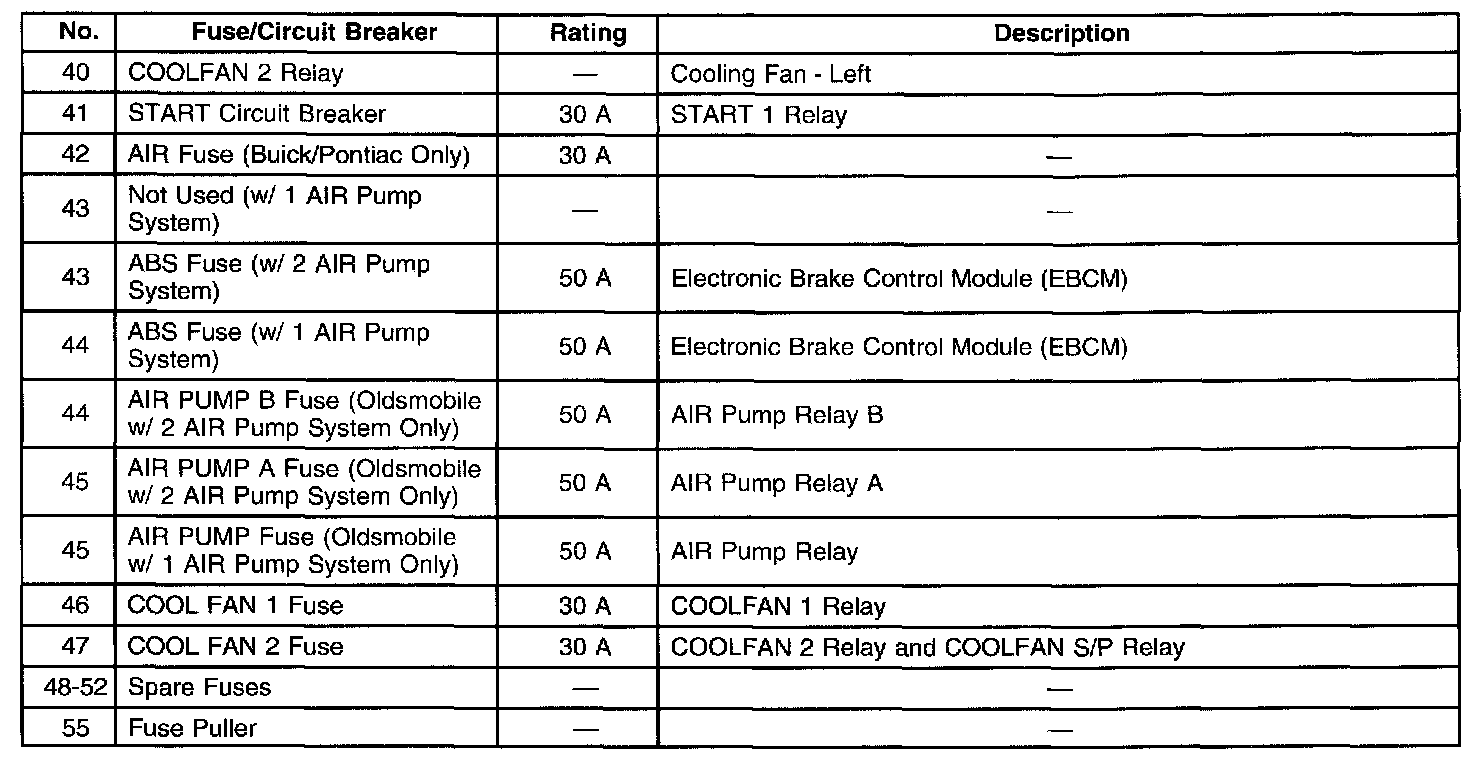

Fuse Block - Underhood Part 2:



Fuse Block - Underhood Part 3:
