Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Instrument Panel Integration Module (IPM)

Instrument Panel Integration Module (IPM)

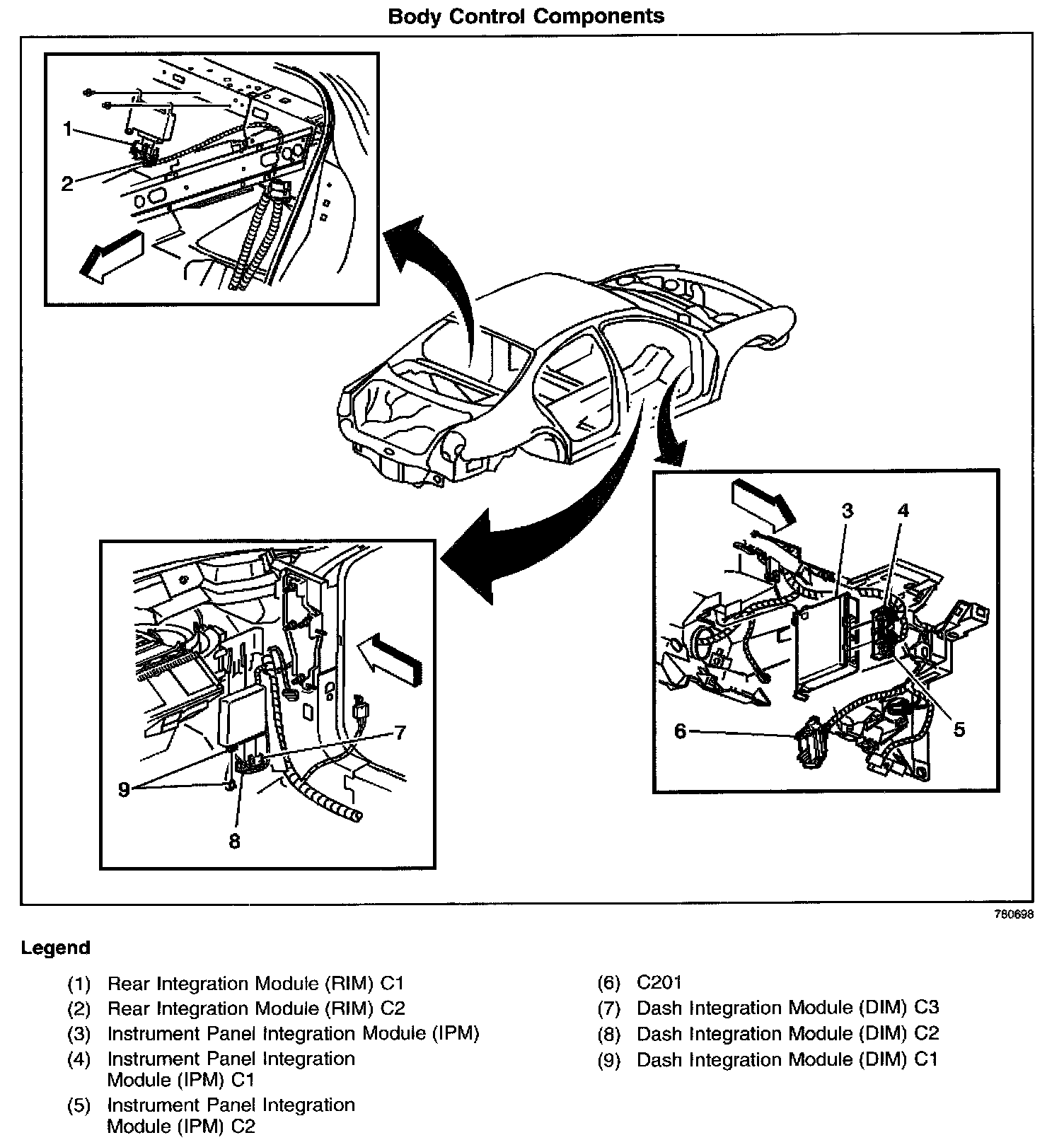

Locations View:

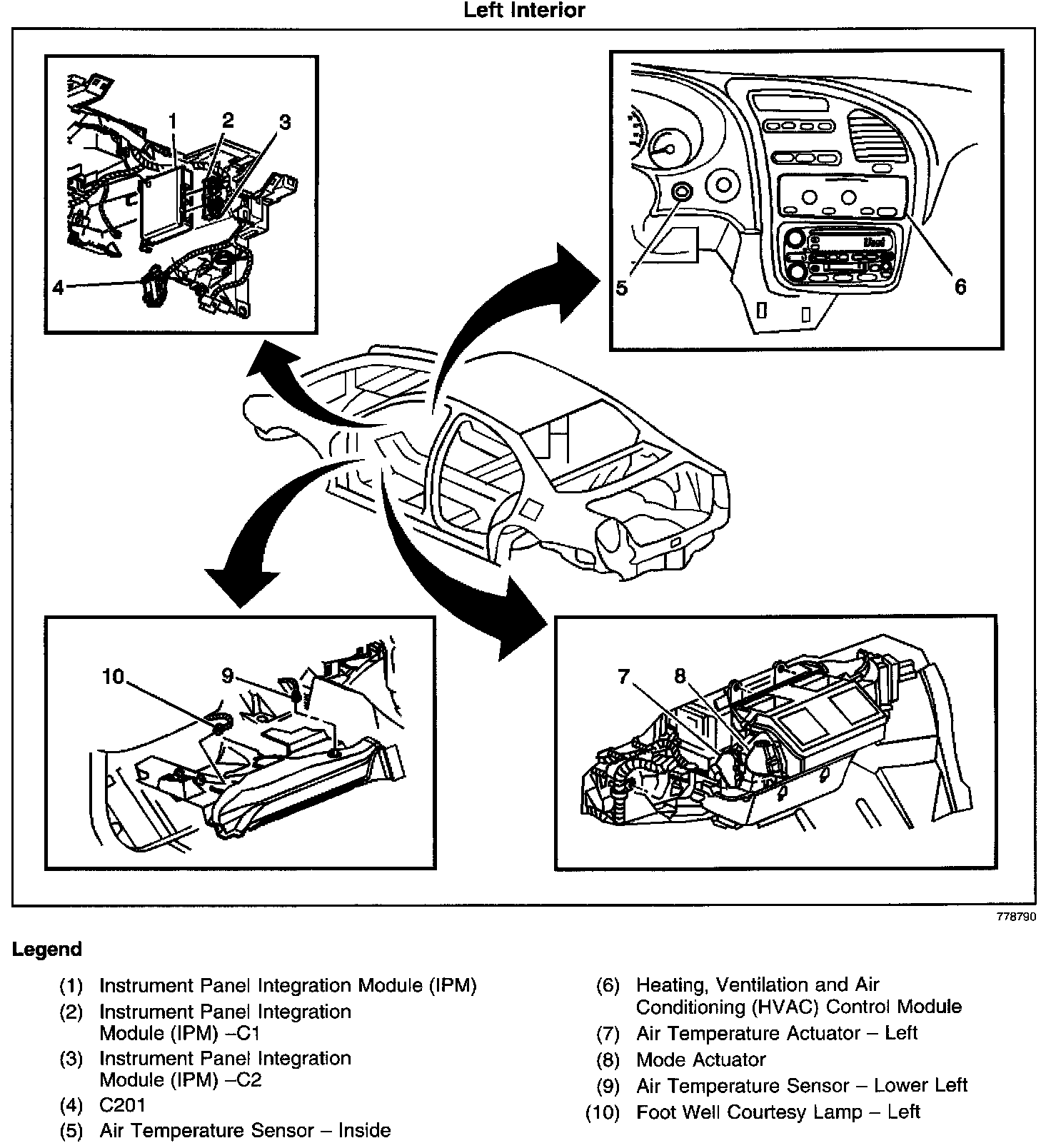

Locations View:
