A - Z Master Electrical Component List

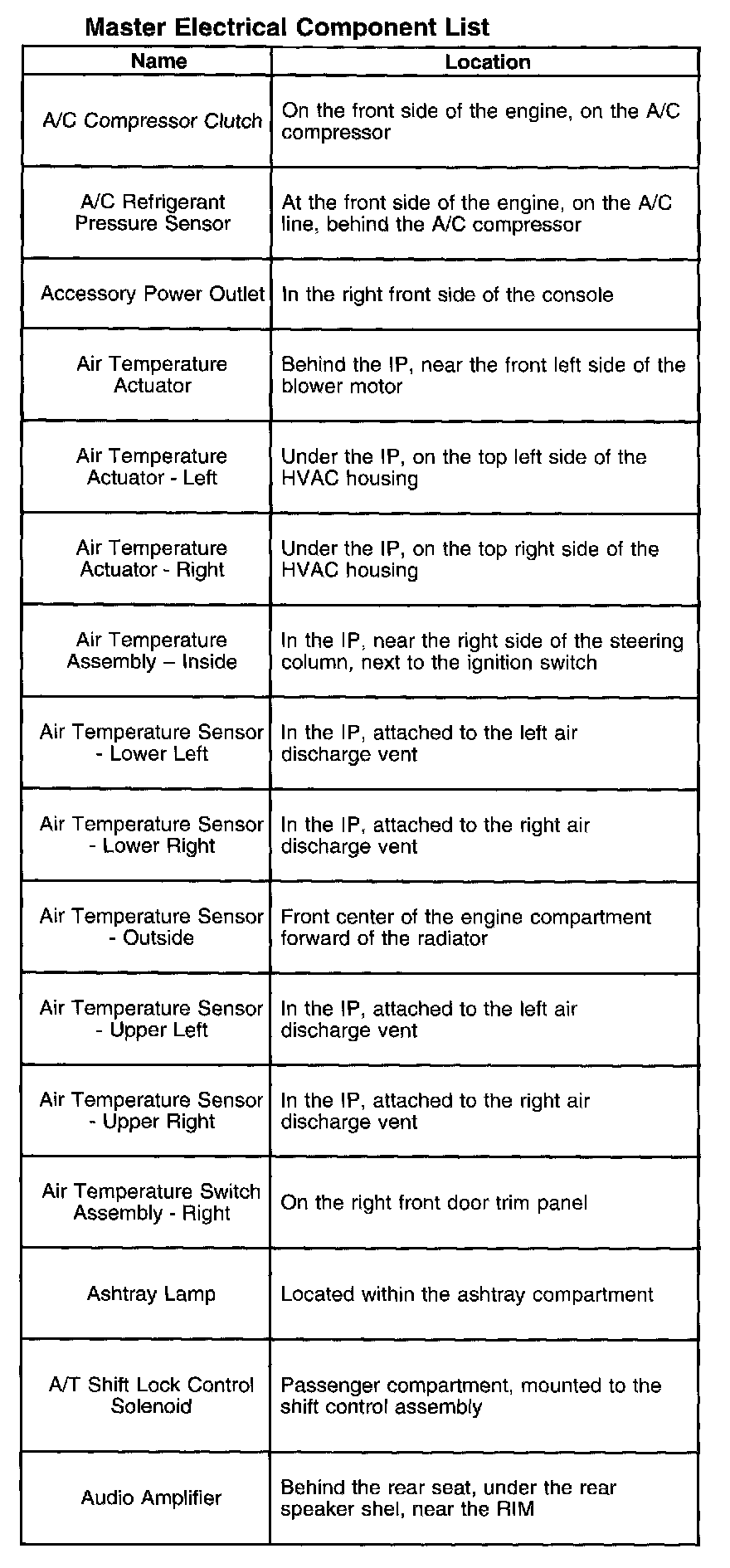

A/C Compressor Clutch - Audio Amplifier:

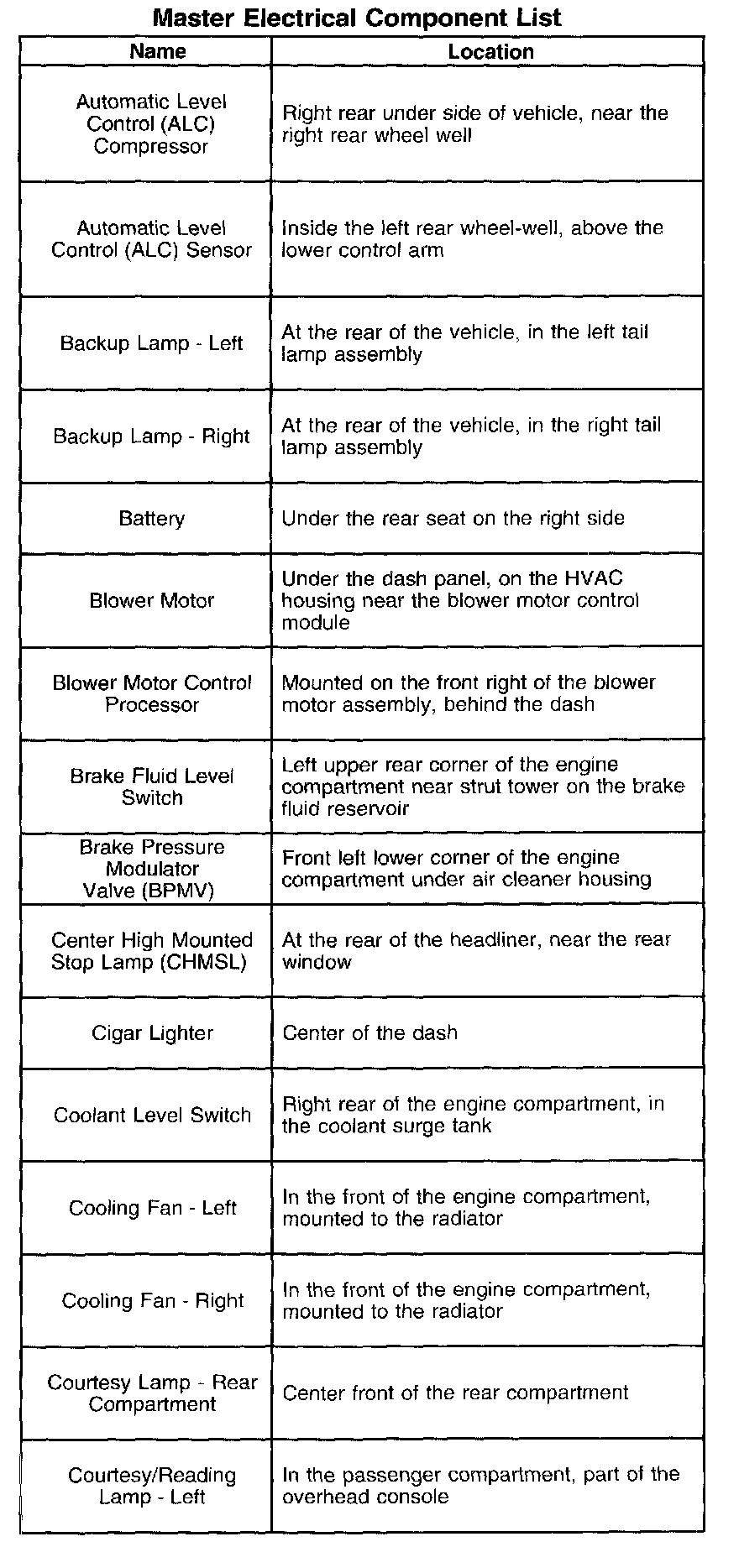

Automatic Level Control (ALC) Compressor - Courtesy/Reading Lamp-Left:

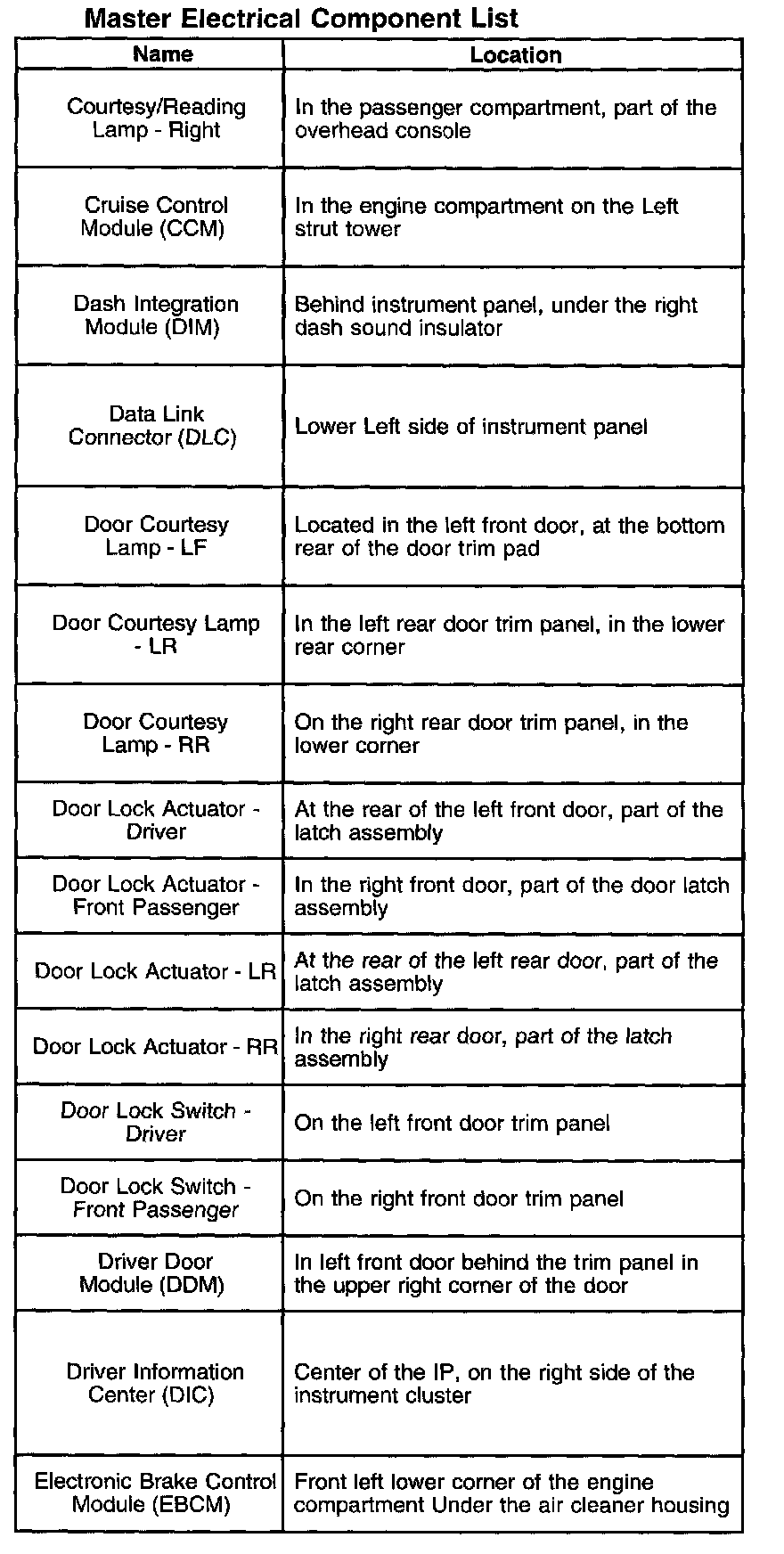

Courtesy/Reading Lamp-Right - Electronic Brake Control Module (EBCM):

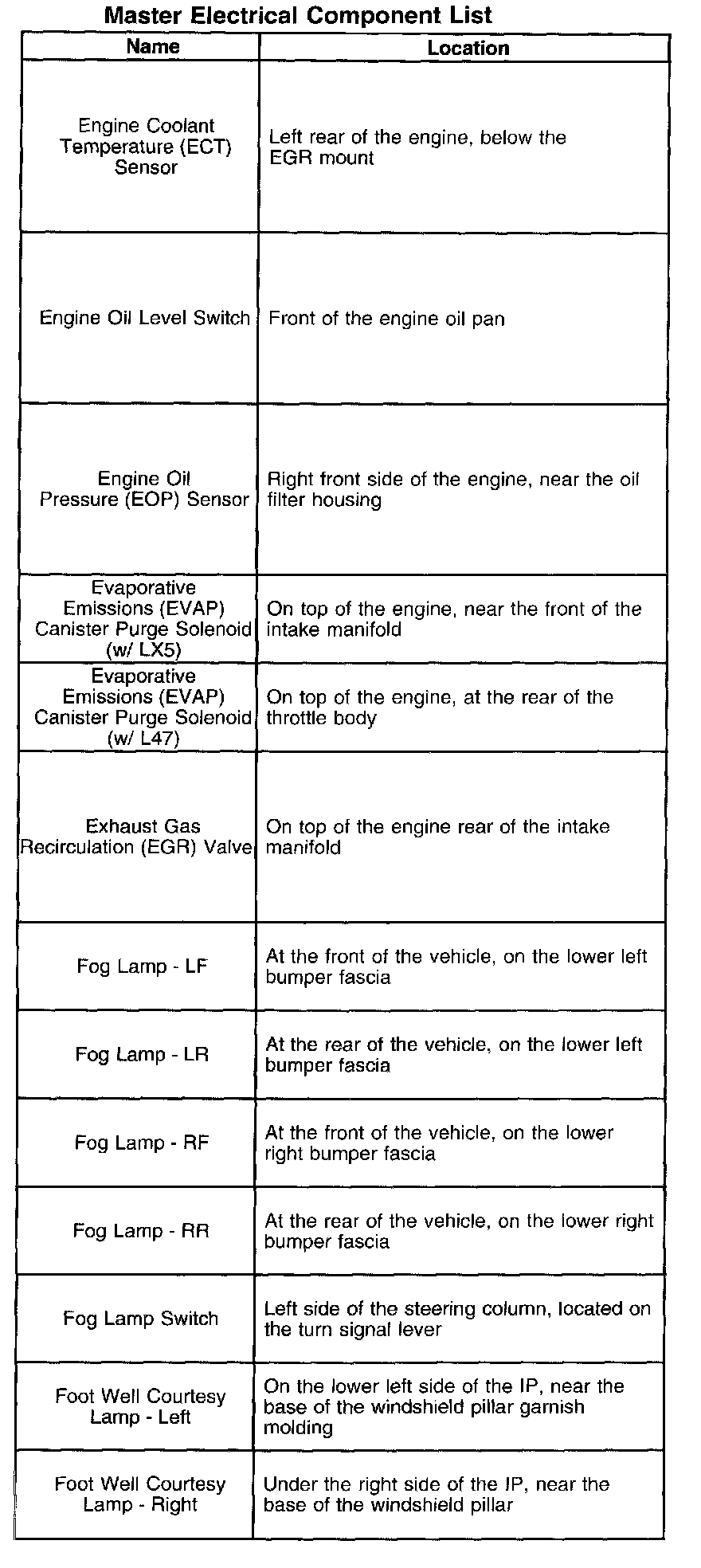

Engine Coolant Temperature (ECT) Sensor - Foot Well Courtesy Lamp-Right:

Front Passenger Door Module (FPDM) - Fuel Injector 7 (W/L47):

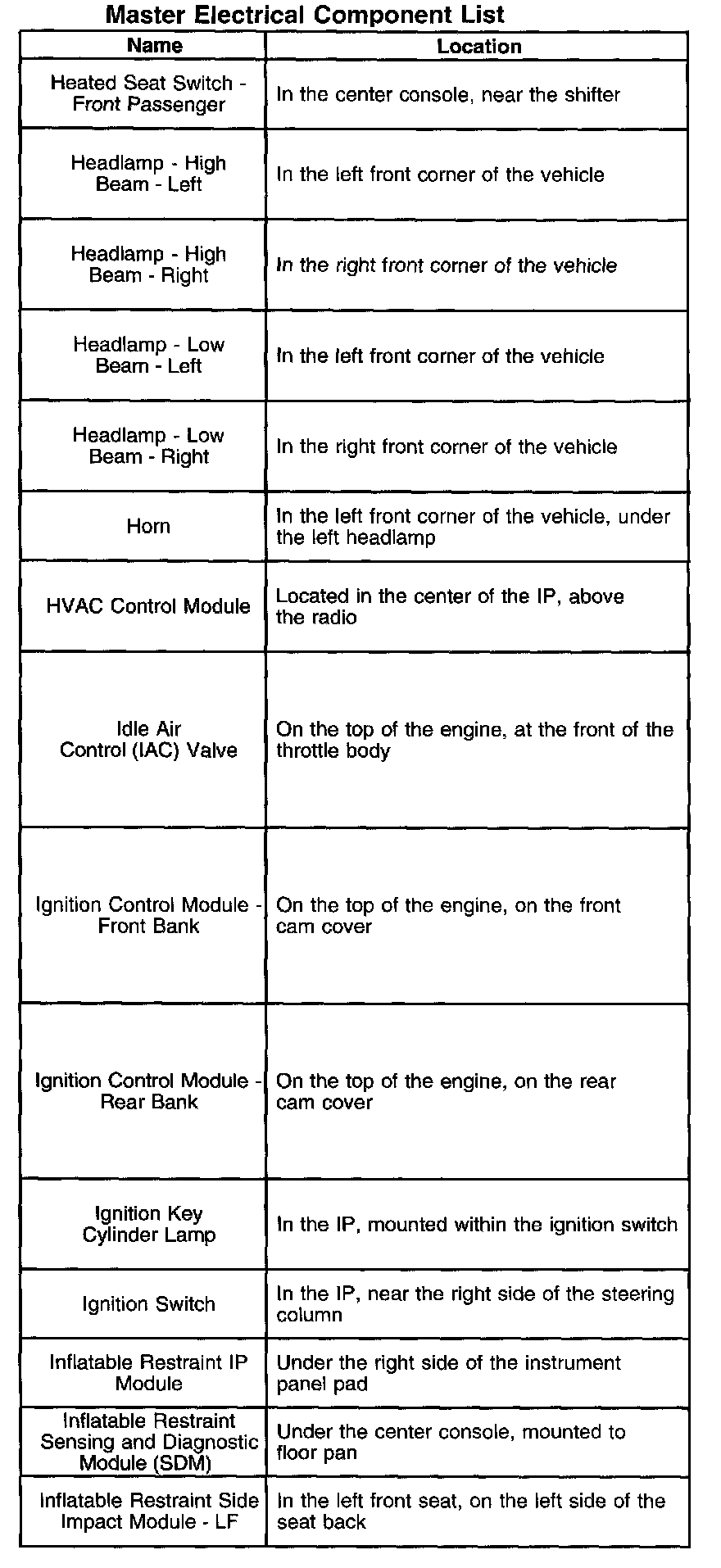

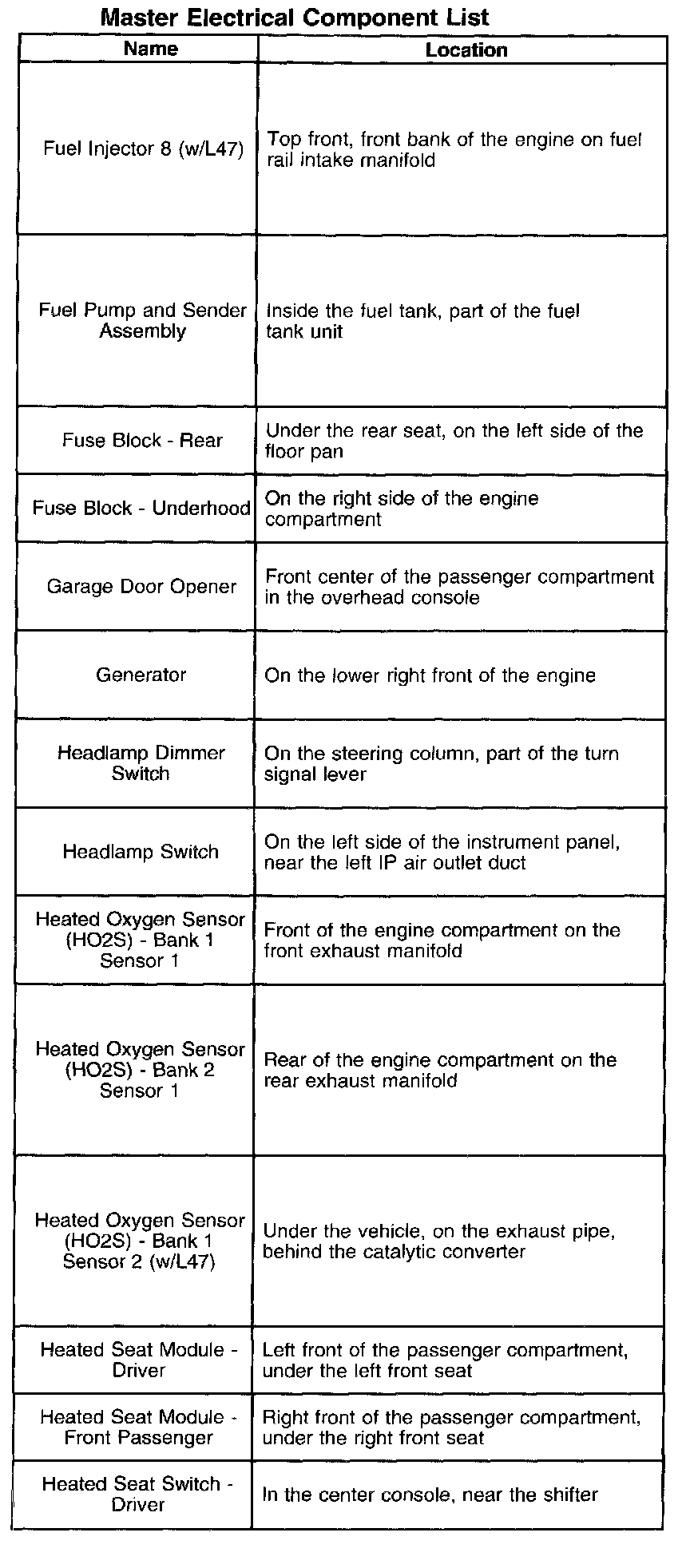

Fuel Injector 8 (W/L47) - Heated Seat Switch-Driver:

Heated Seat Switch-Front Passenger - Inflatable Restraint Side Impact Module-LF:

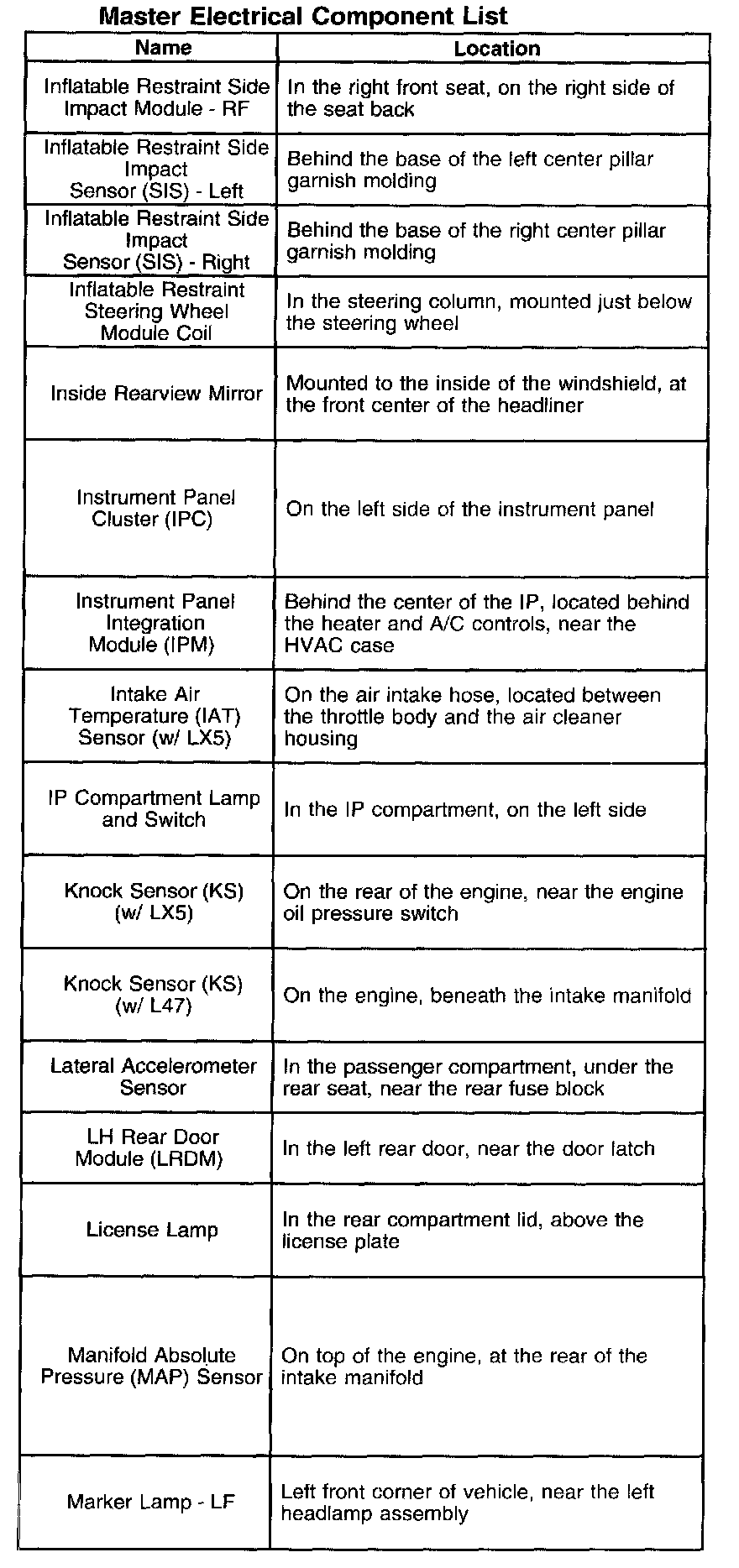

Inflatable Restraint Side Impact Module-RF - Marker Lamp-LF:

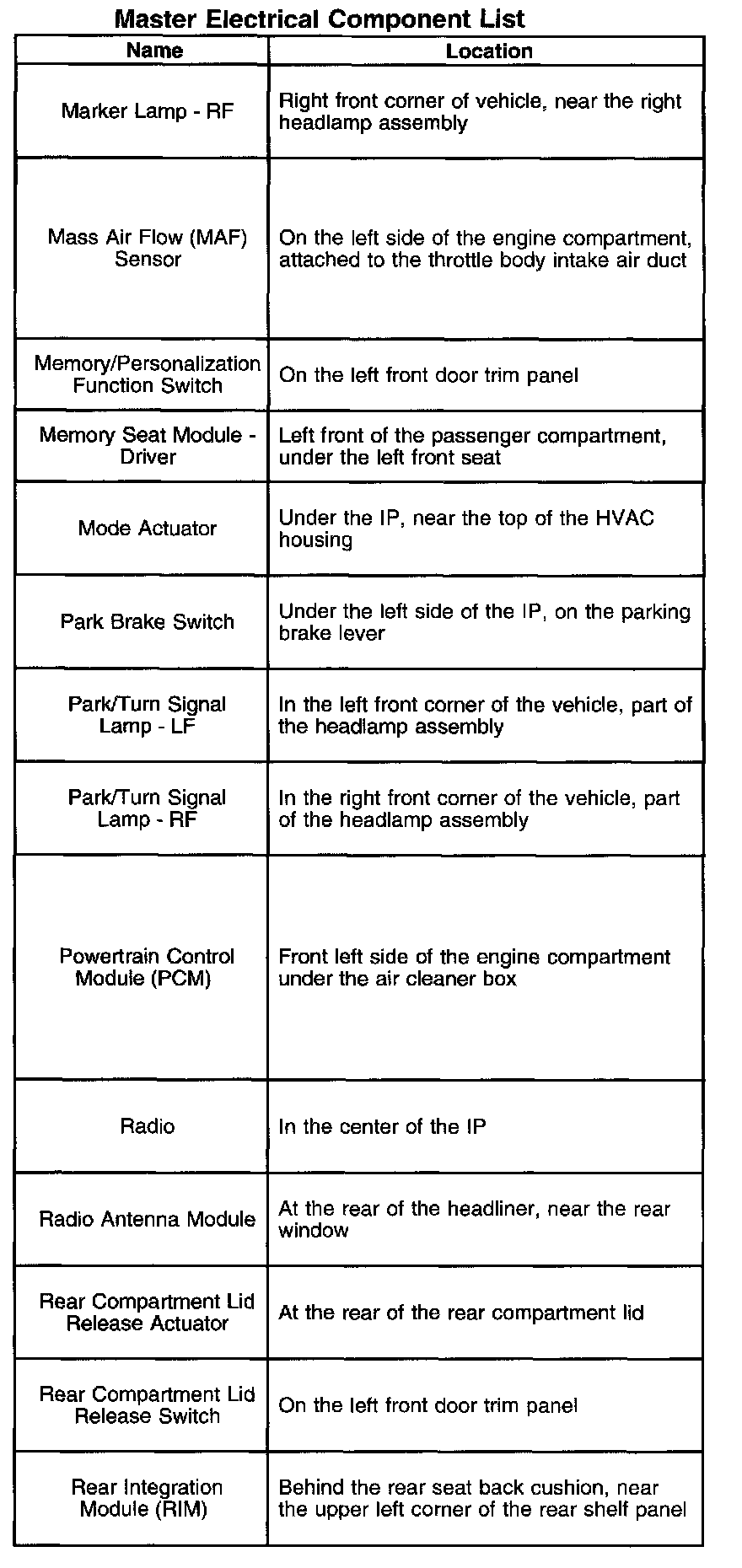

Marker Lamp-RF - Rear Integration Module (RIM):

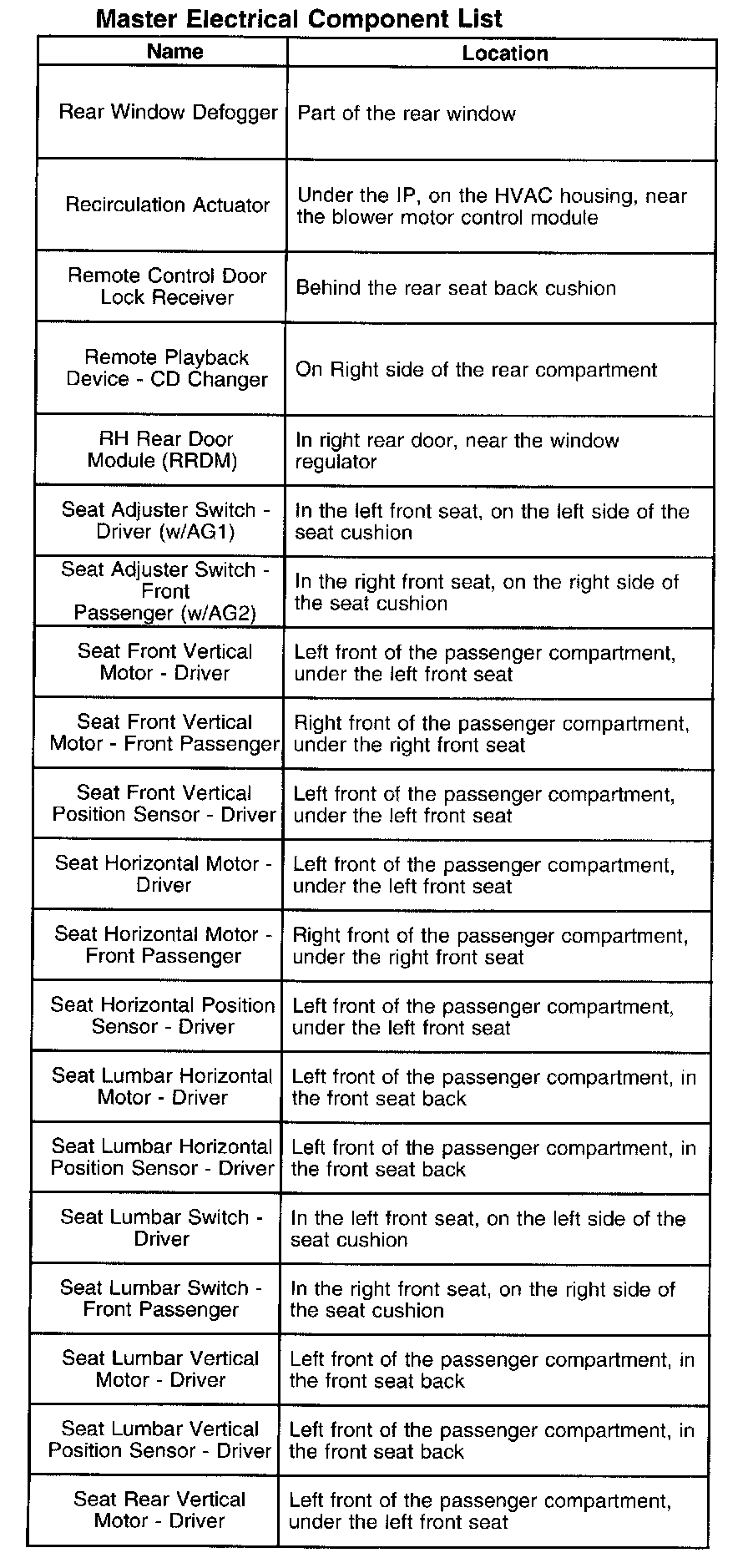

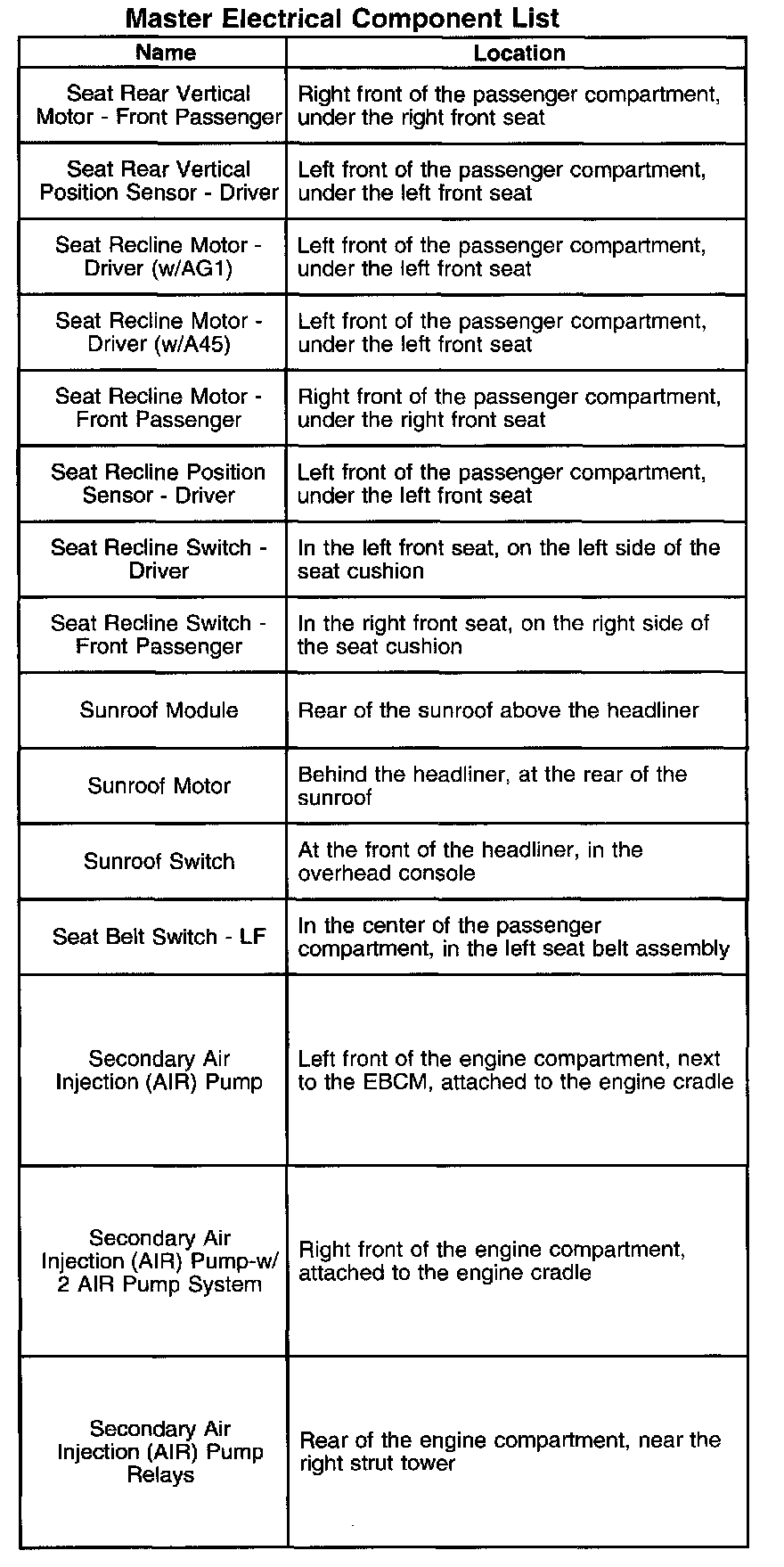

Rear Window Defogger - Seat Rear Vertical Motor-Driver:

Seat Rear Vertical Motor-Front Passenger - Secondary Air Injection (AIR) Pump Relays:

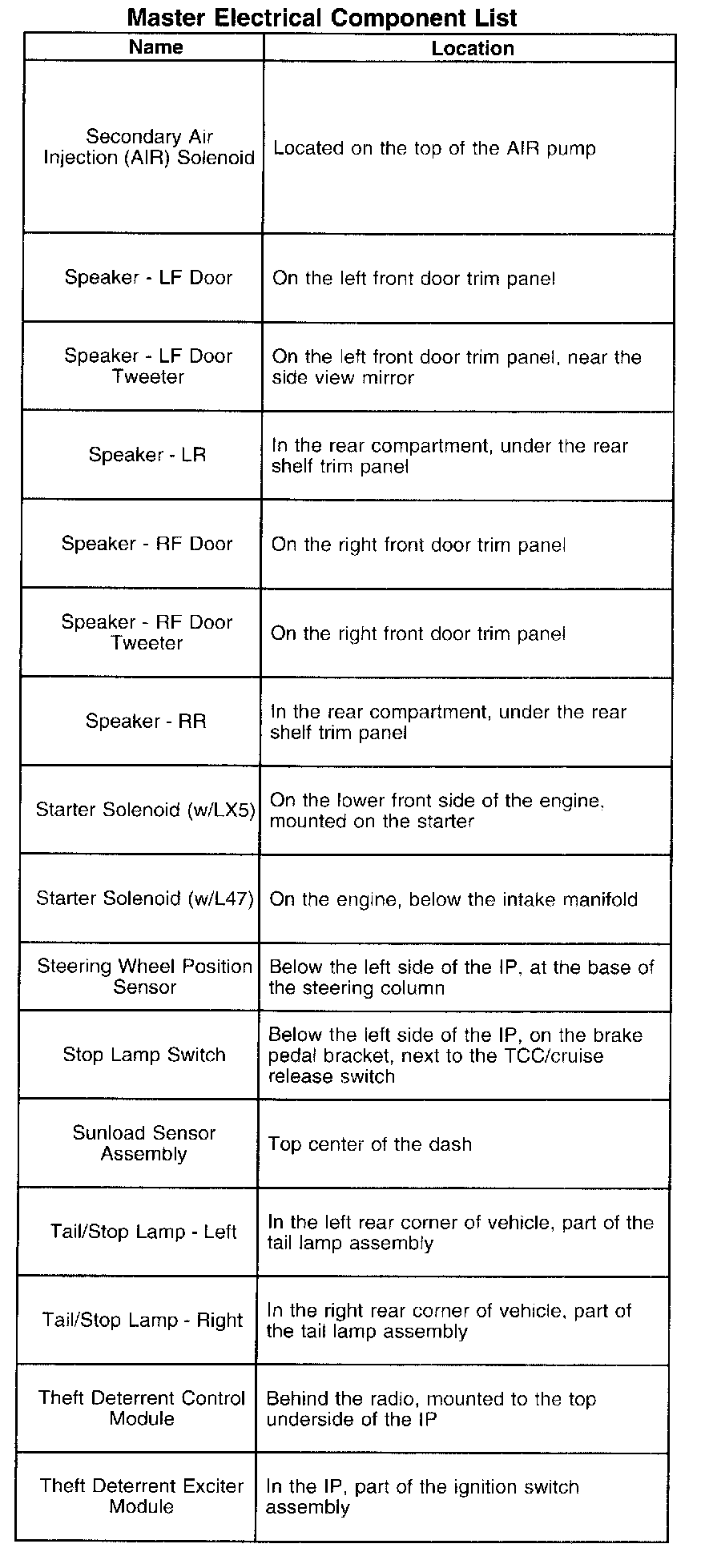

Secondary Air Injection (AIR) Solenoid - Theft Deterrent Exciter Module:

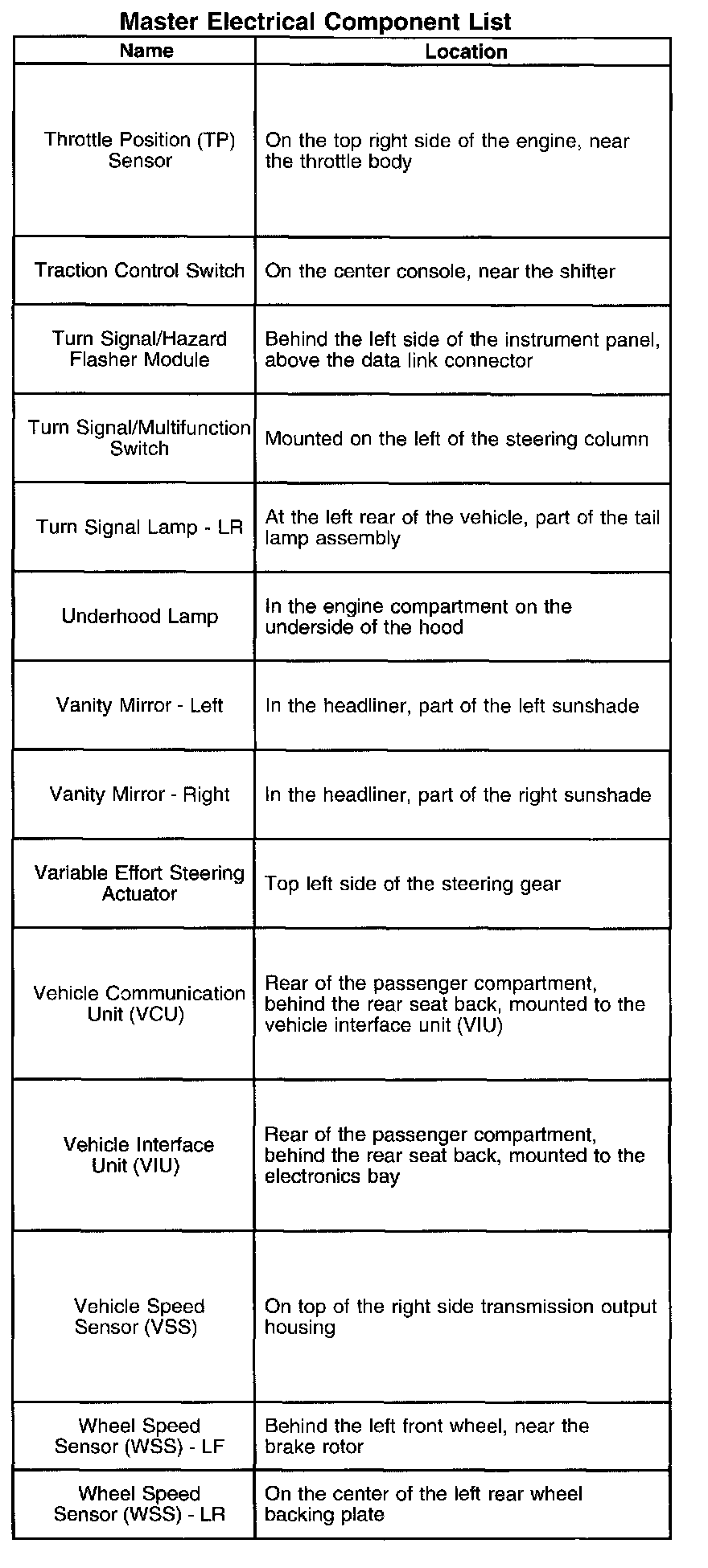

Throttle Position (TP) Sensor - Wheel Speed Sensor (WSS)-LR:

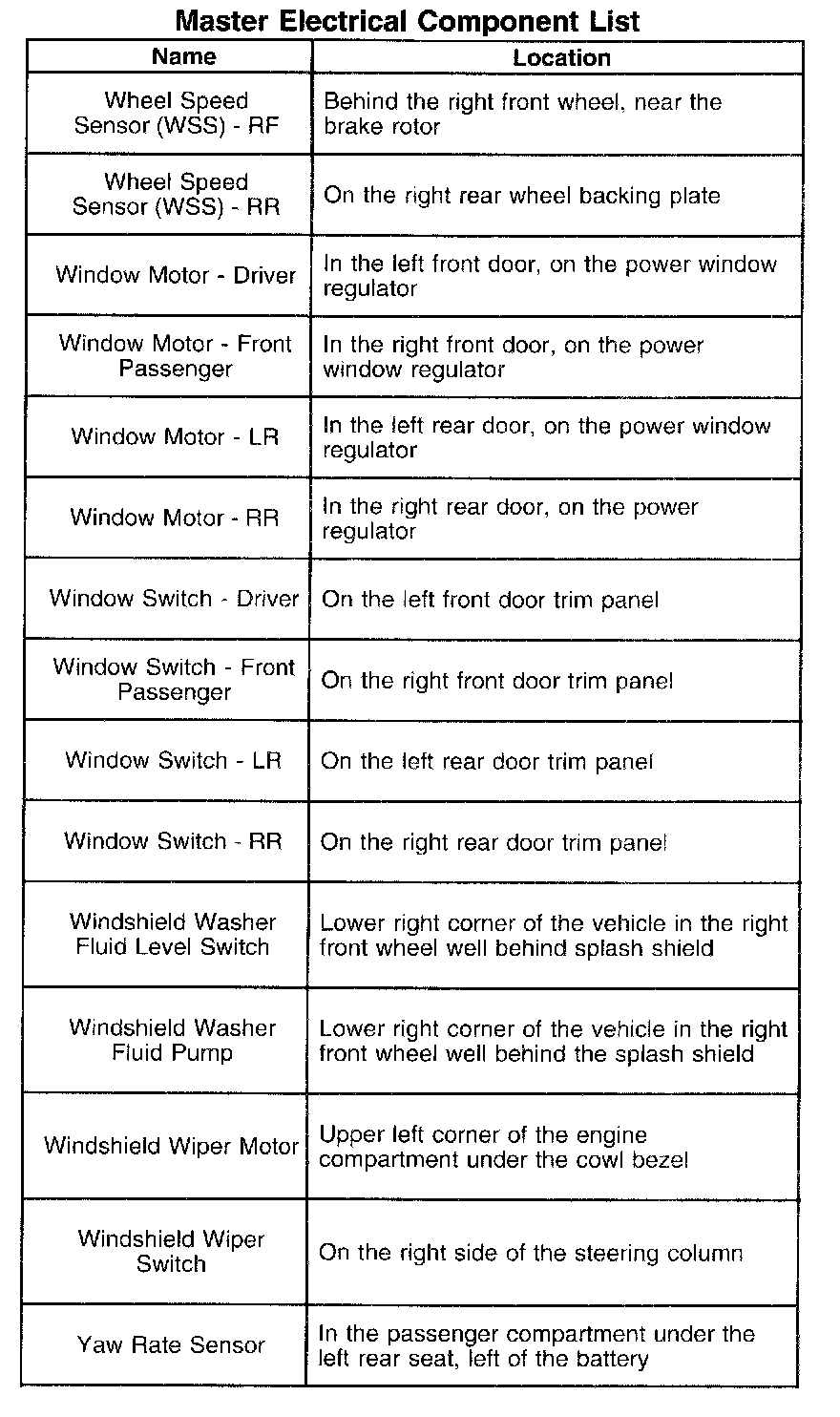

Wheel Speed Sensor (WSS)-RF - Yaw Rate Sensor:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
