Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Brakes and Traction Control >> Parking Brake System >> Testing and Inspection >> Component Tests and General Diagnostics

Component Tests and General Diagnostics

Park Brake System Diagnosis

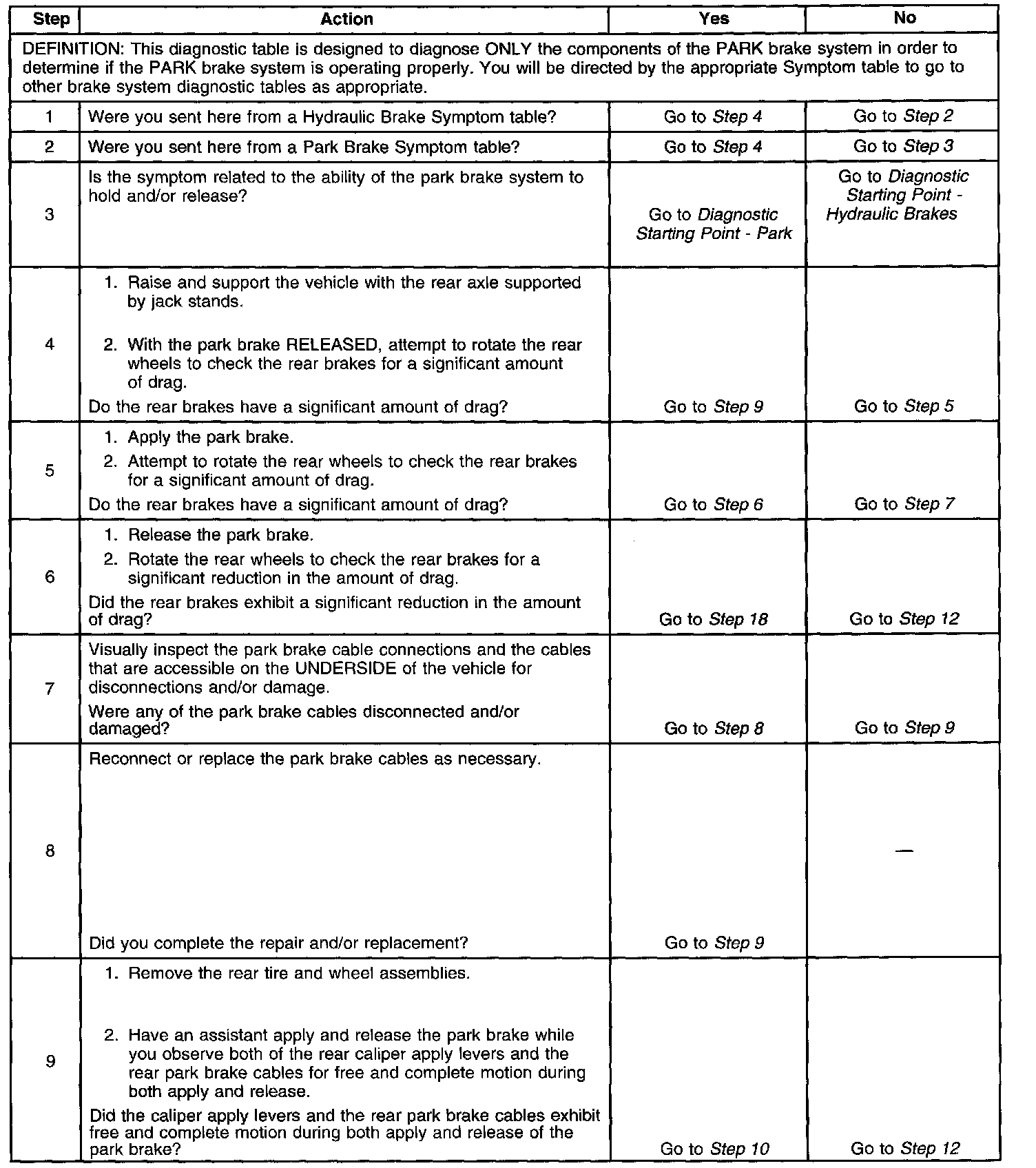

Step 1 - 9

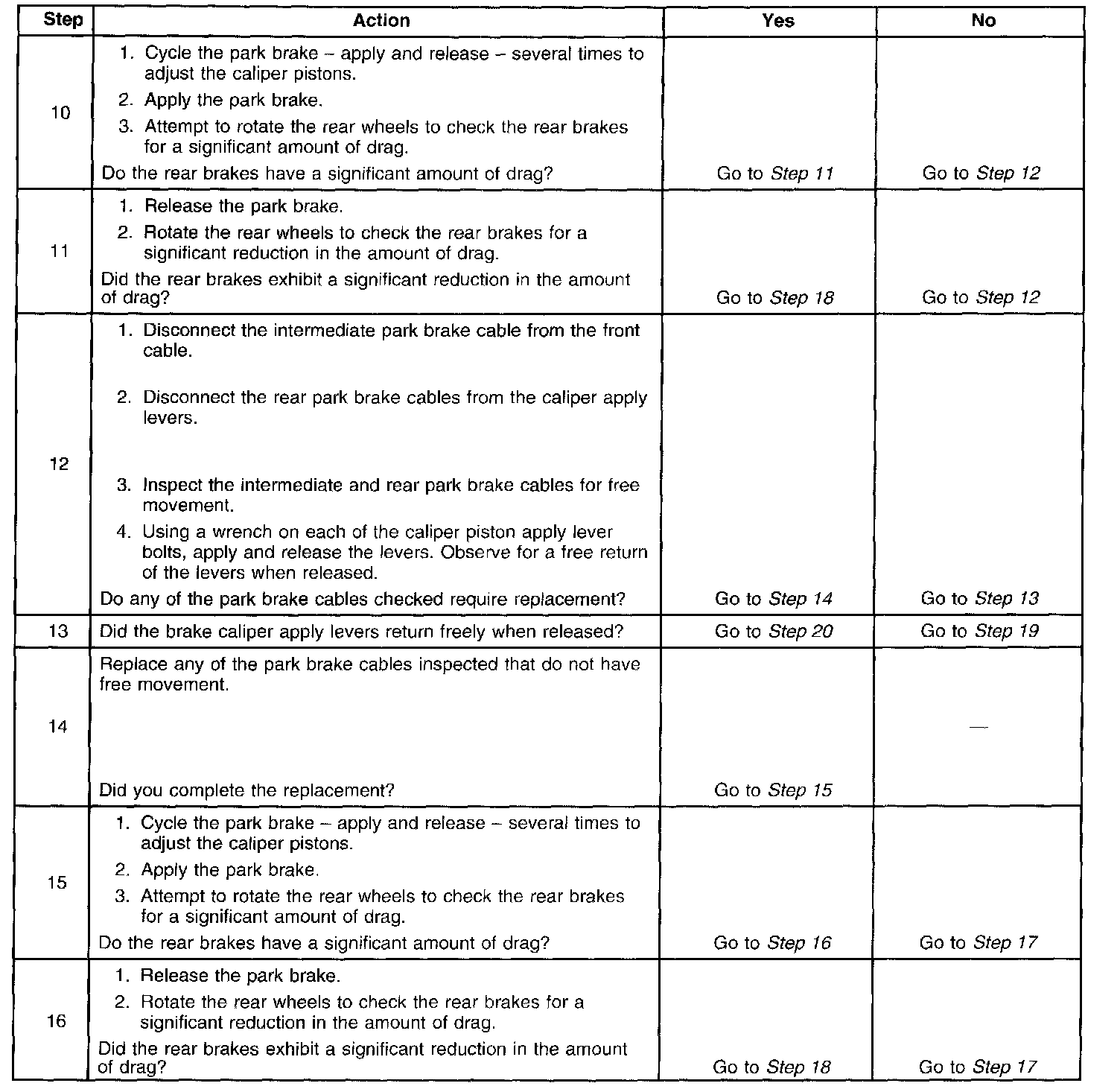

Step 10 - 16

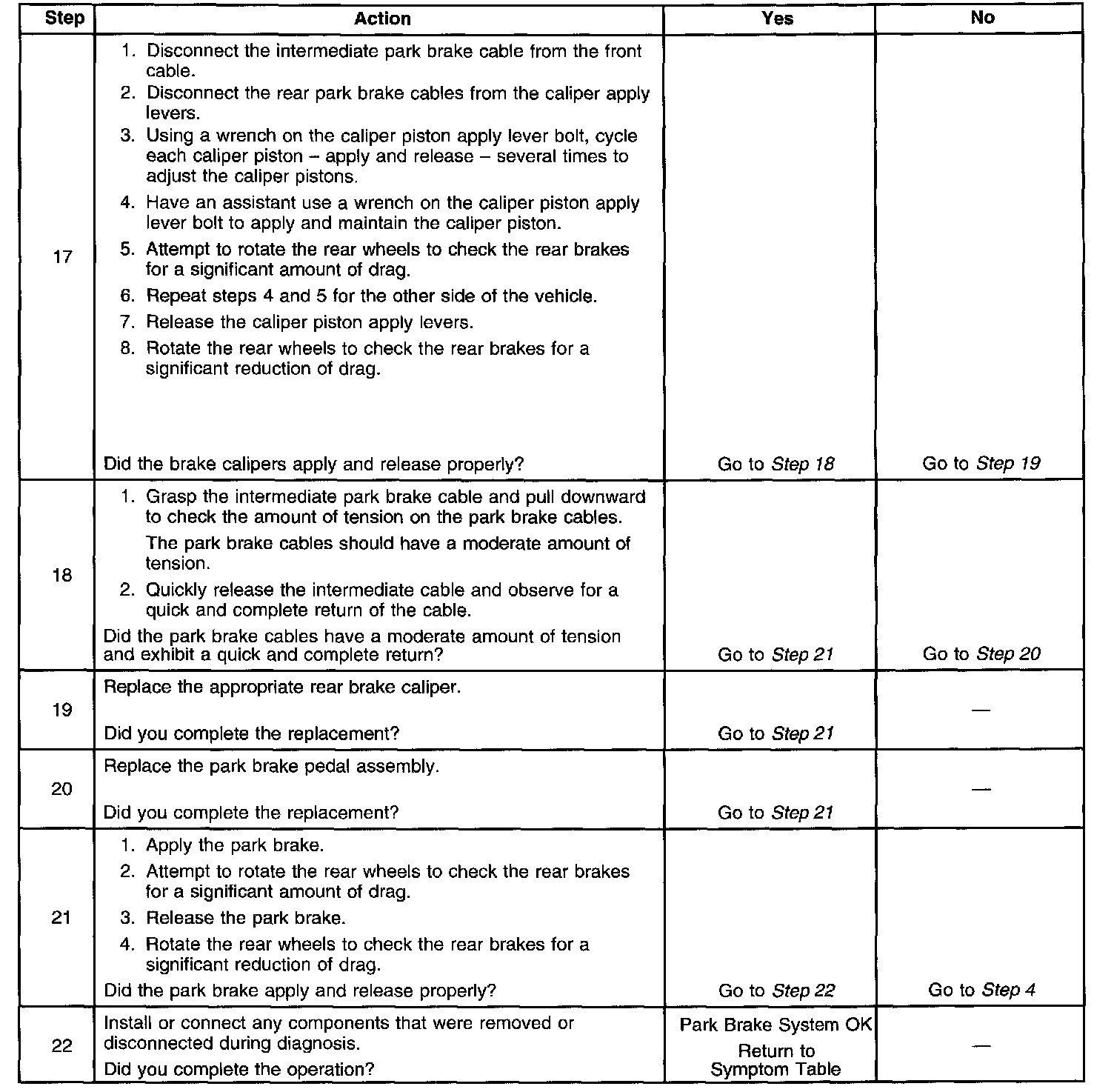

Step 17 - 22
