Hydraulic Brake System Diagnosis

Hydraulic Brake System Diagnosis

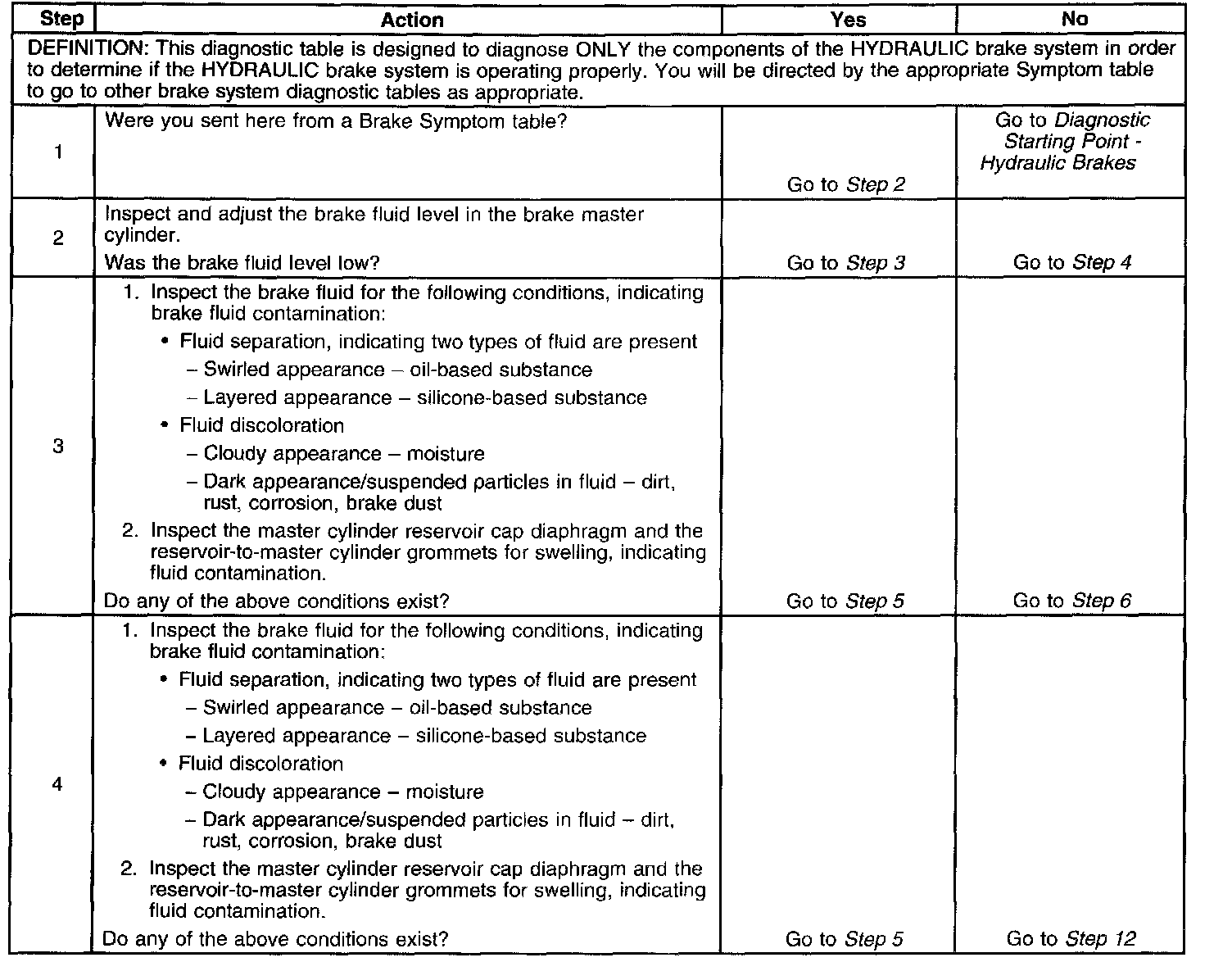

Step 1 - 4

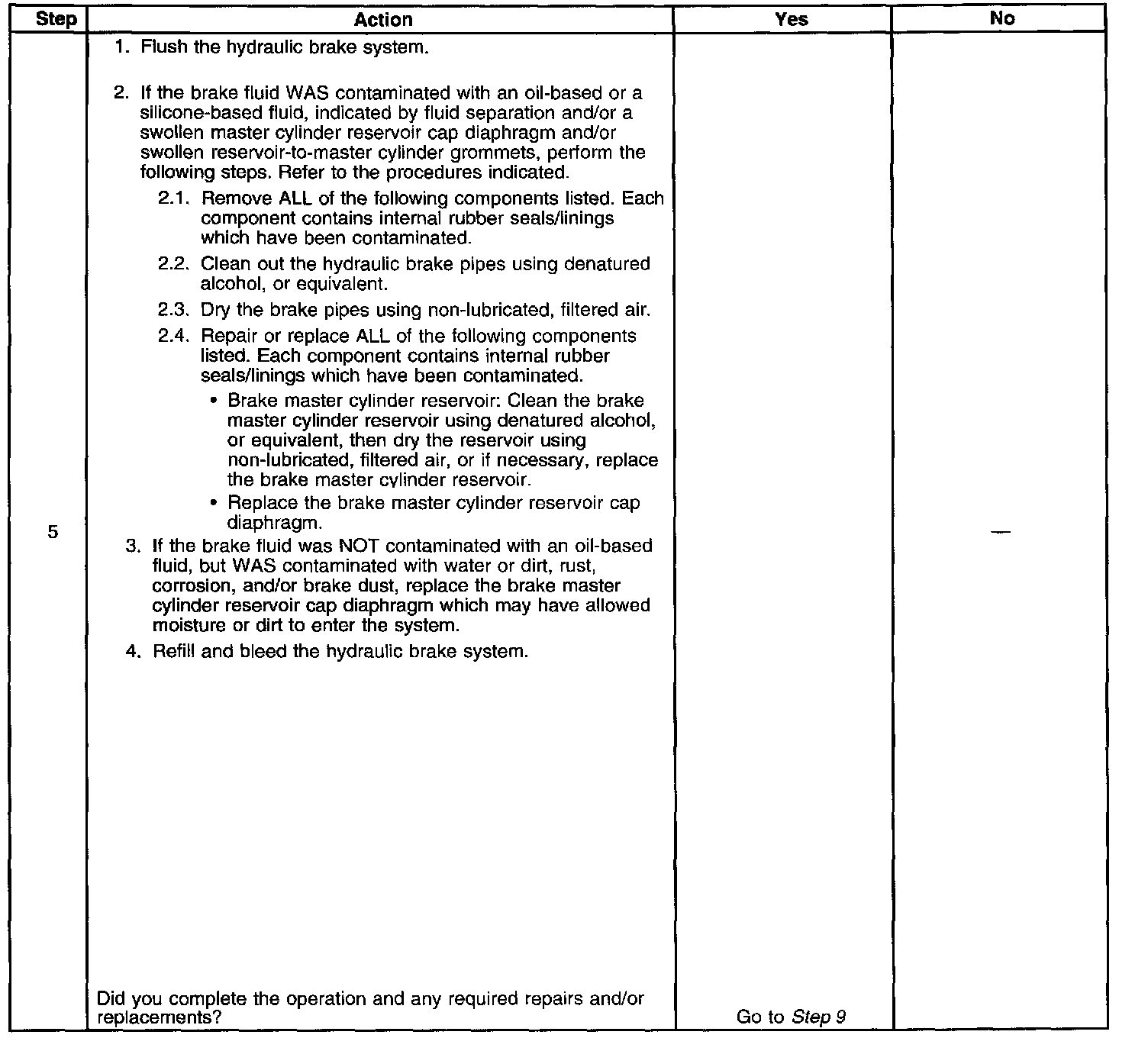

Step 5

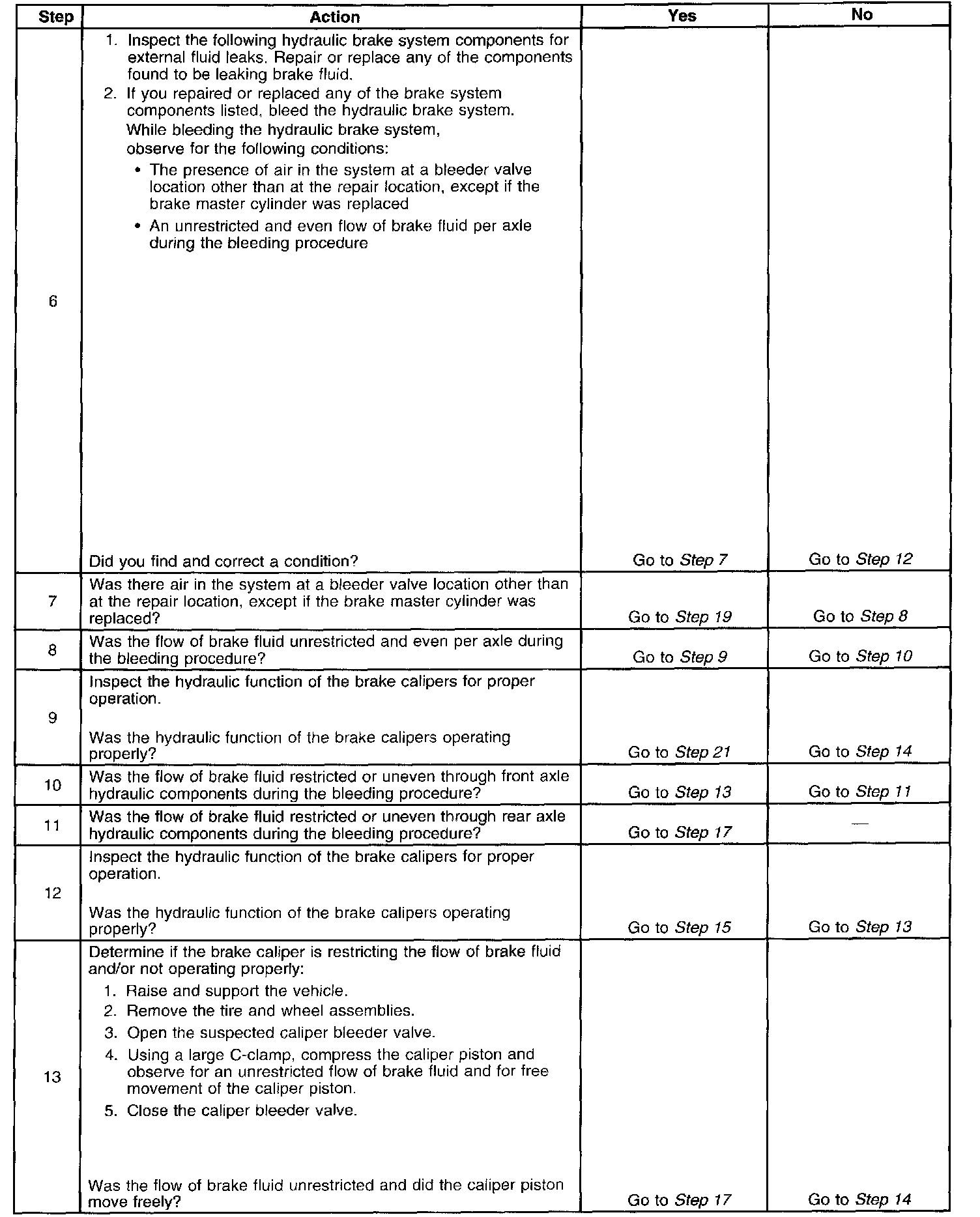

Step 6 - 13

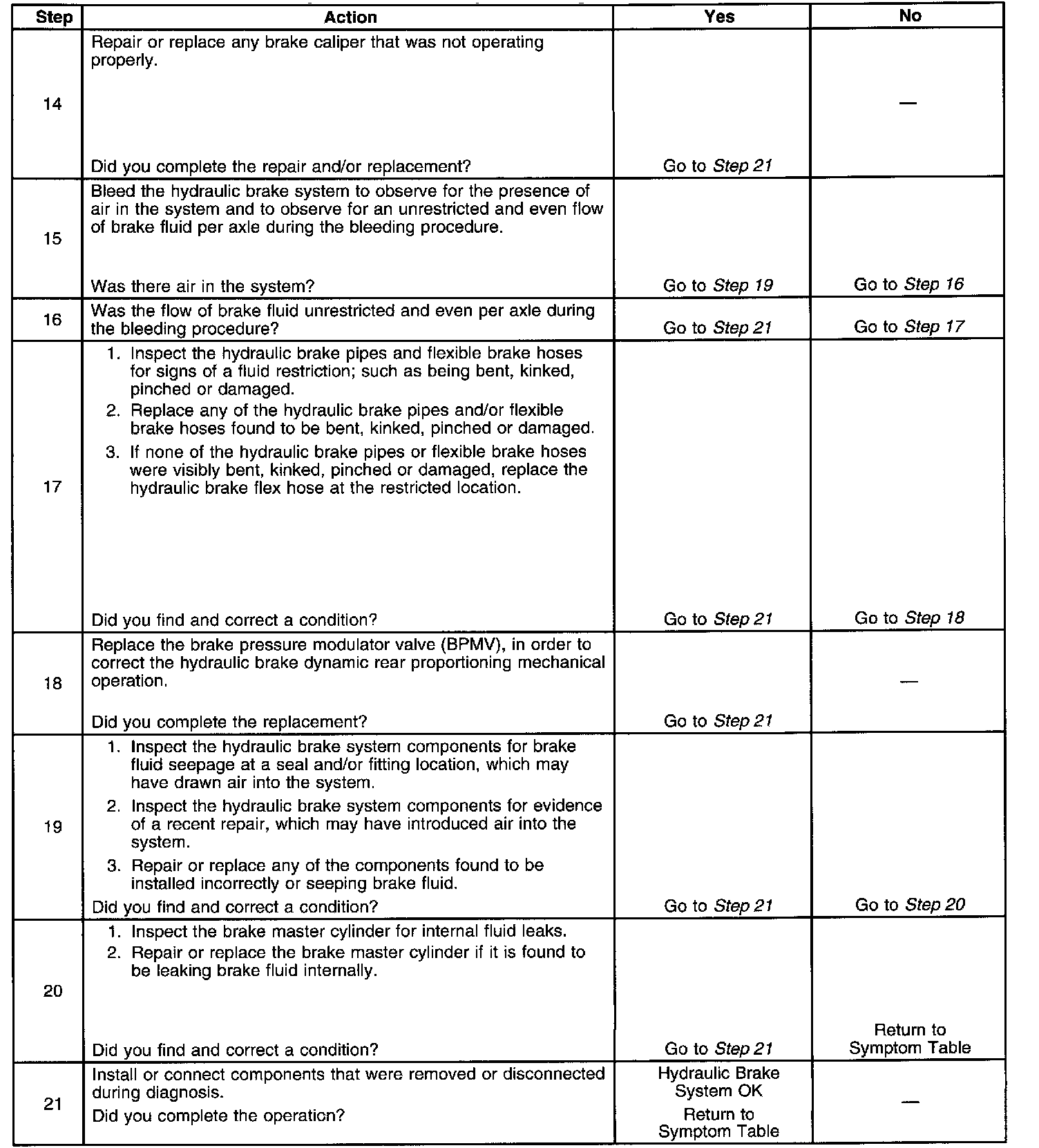

Step 14 - 21
