Disc Brake System Diagnosis

Disc Brake System Diagnosis

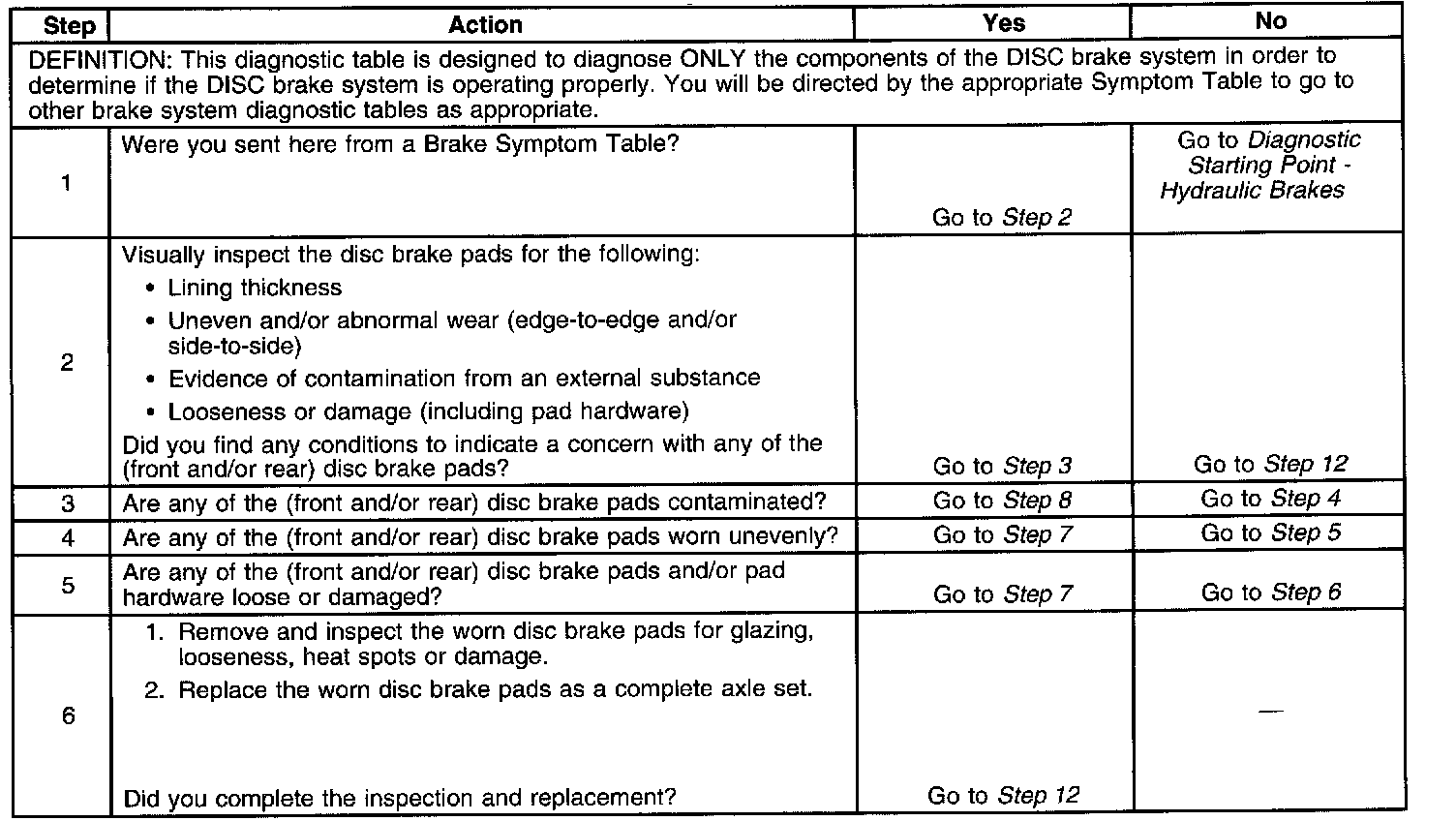

Step 1 - 6

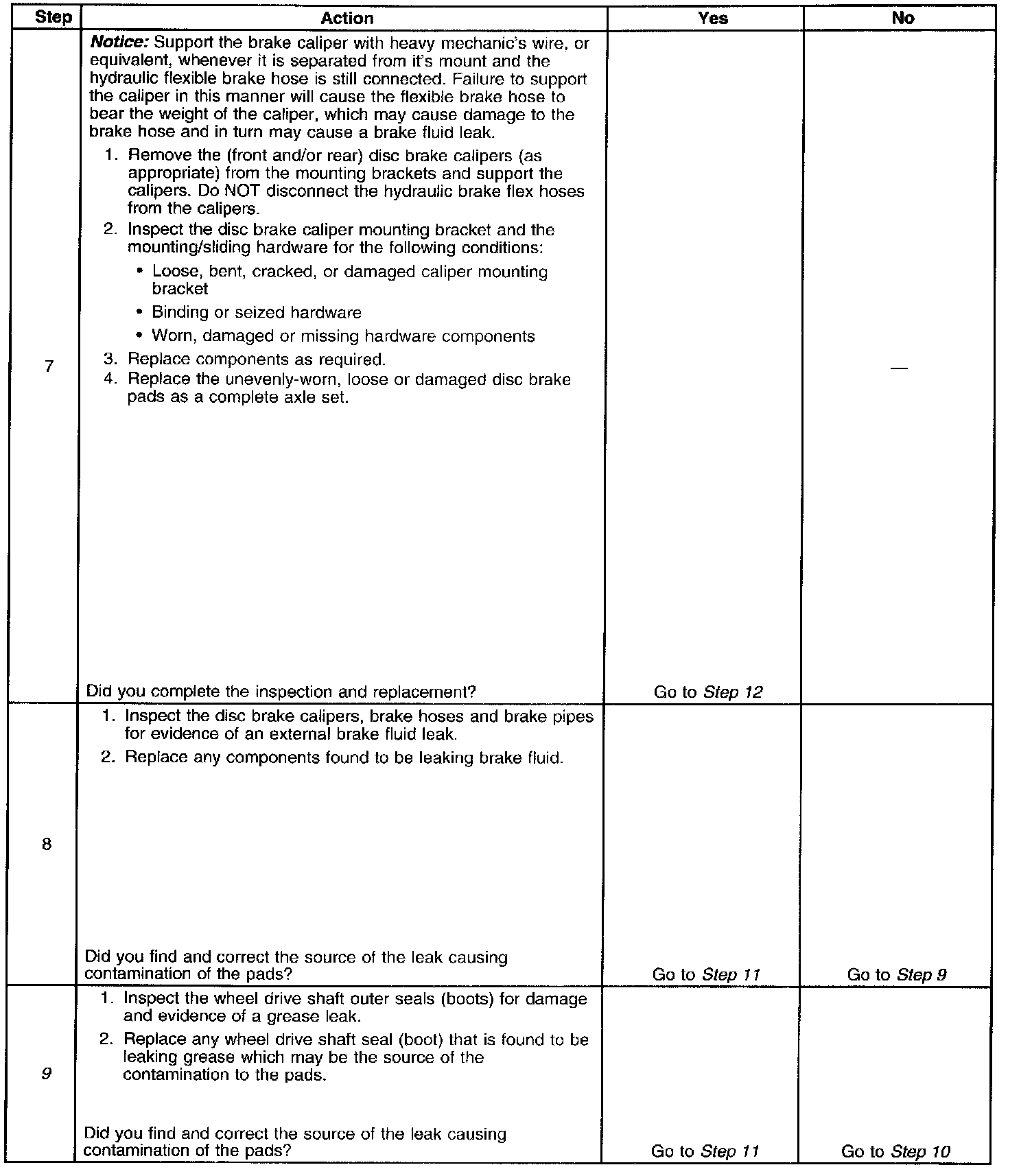

Step 7 - 9





Step 10 - 13

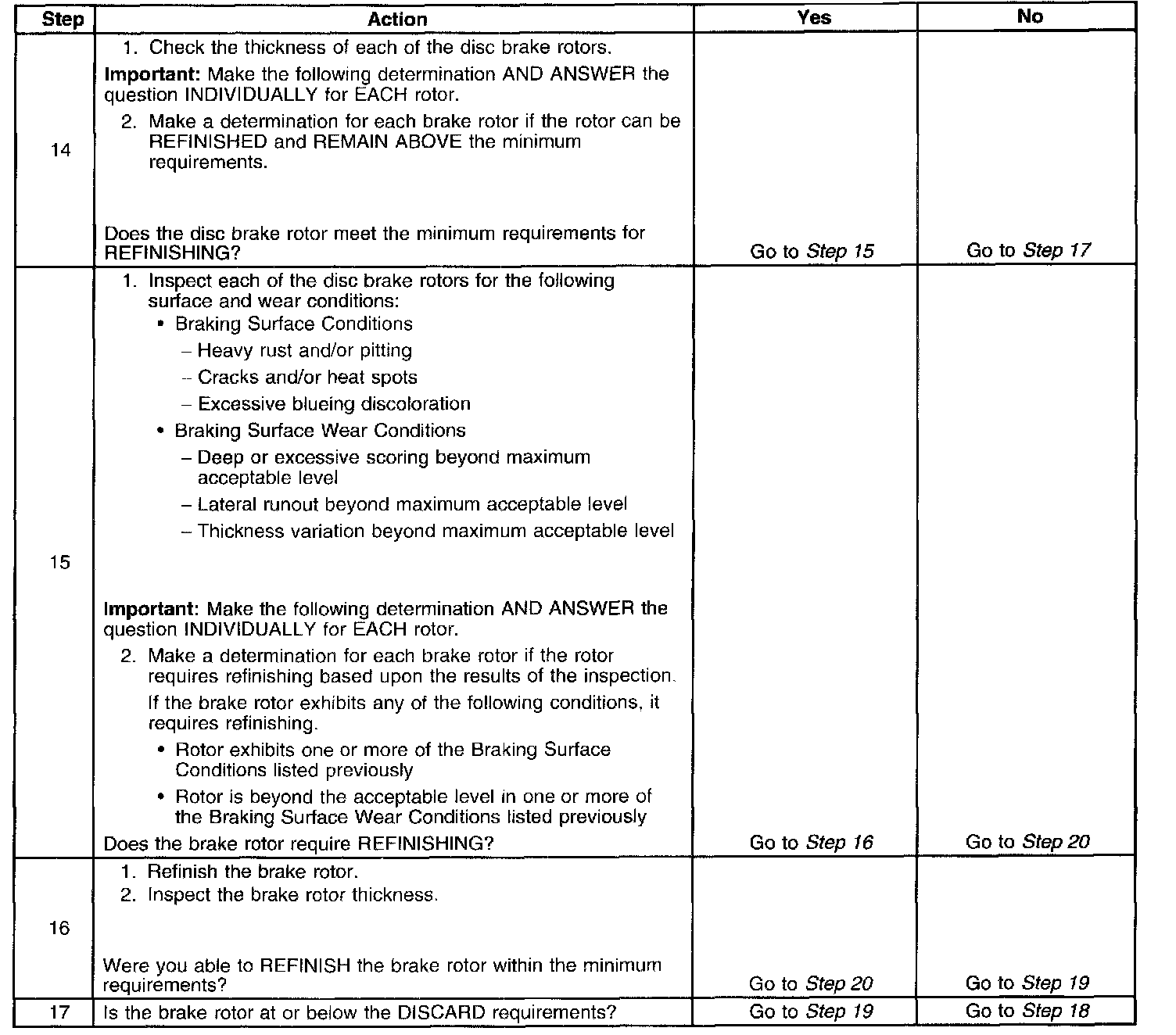

Step 14 - 17

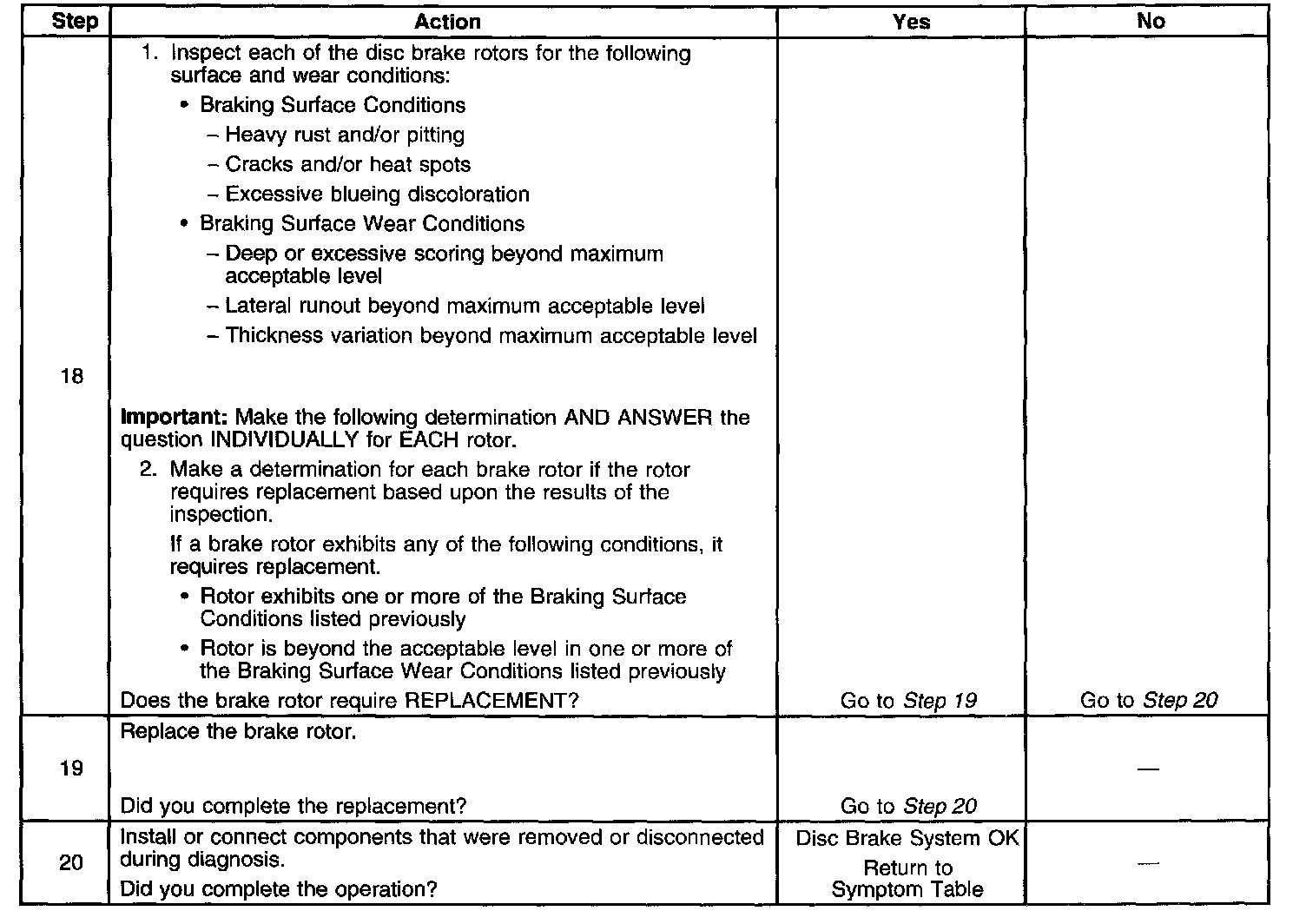

Step 18 - 20

Test Description
The numbers below refer to the step numbers on the diagnostic table:
9. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
10. Lubricant leaks from non-brake system components may come in contact with and contaminate brake system components.
12. Disc brake rotor shields/backing plates that come in contact with disc brake rotors may cause brake system noise.
