Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

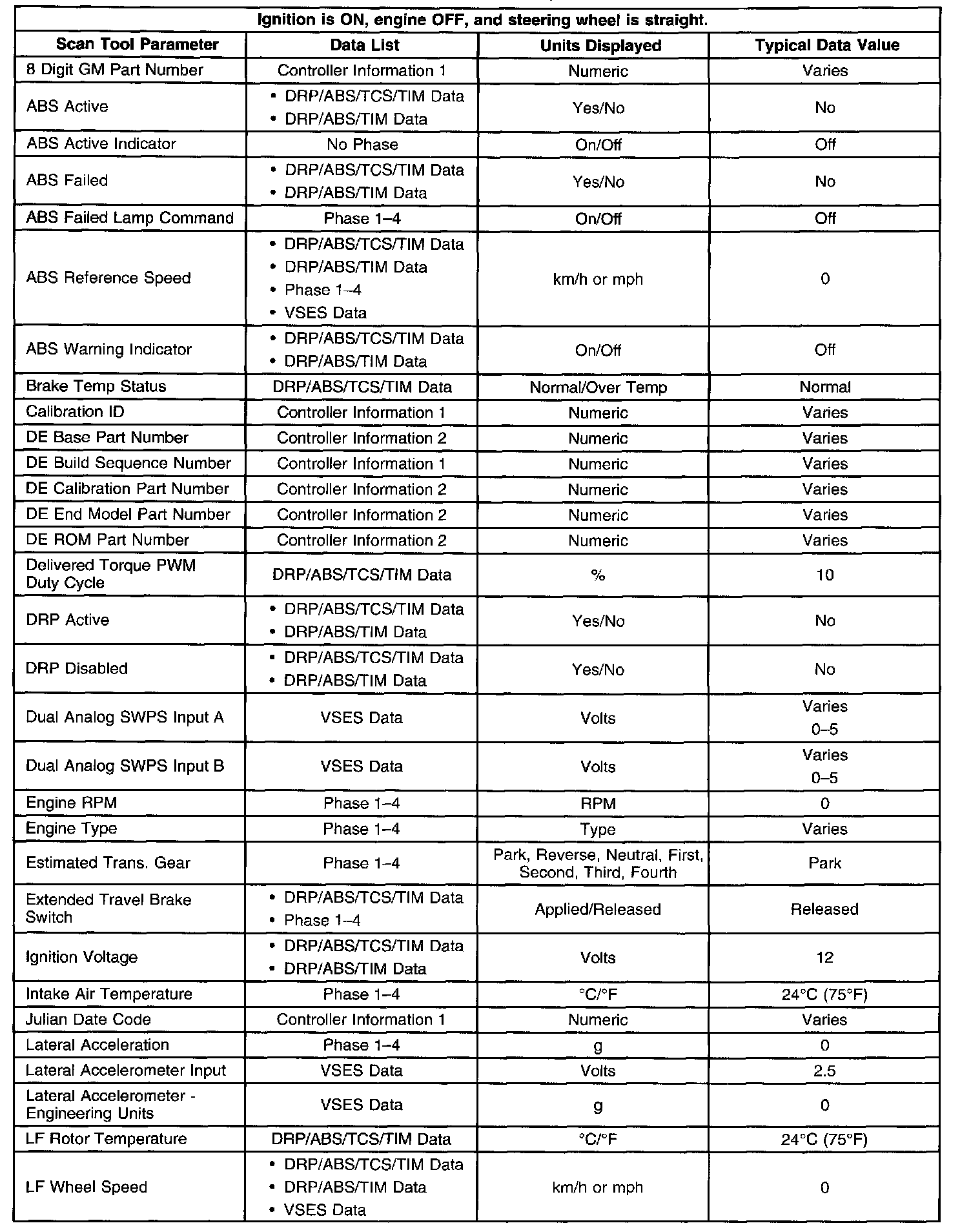

Part 1 of 3

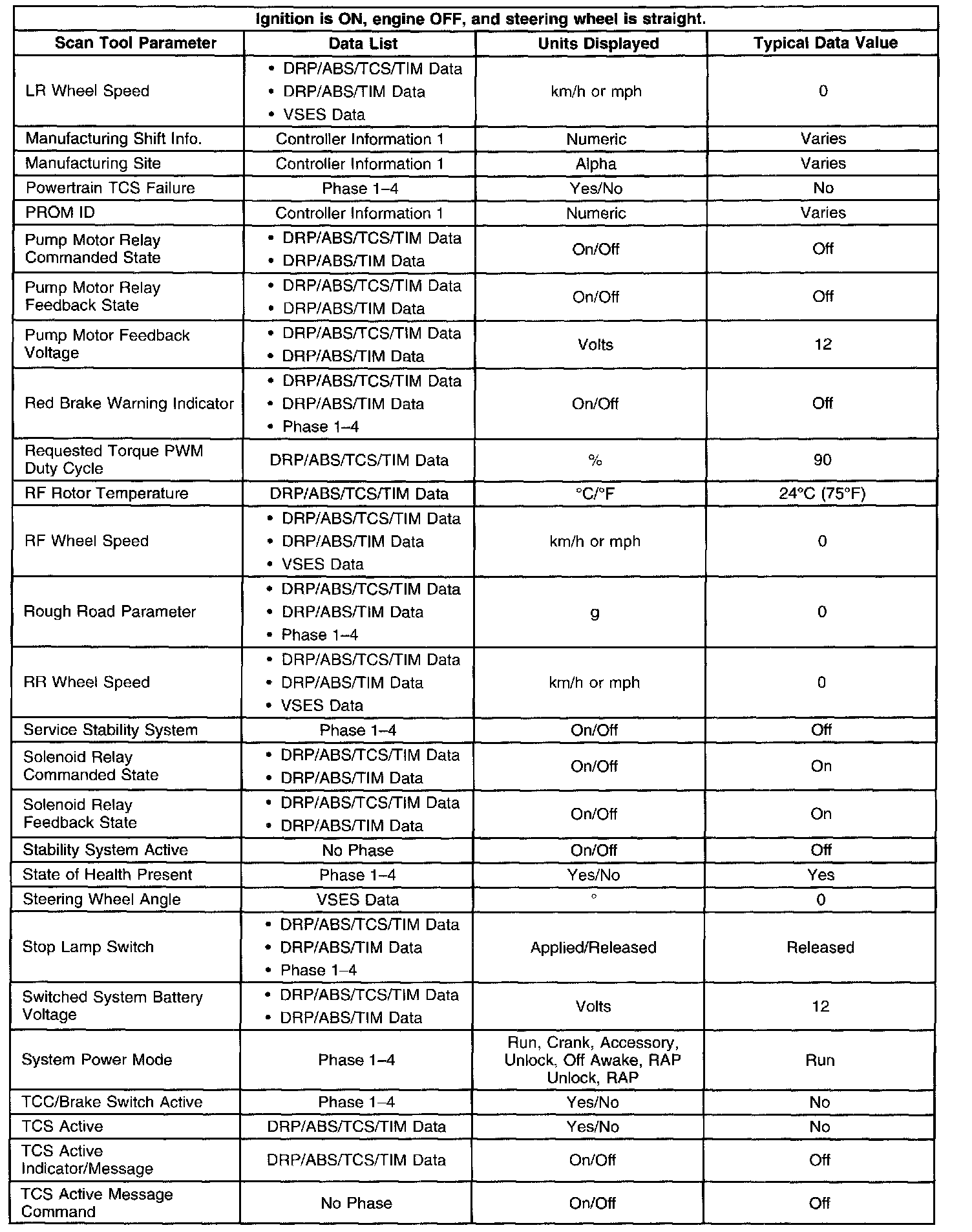

Part 2 of 3





Part 3 of 3
