Power Trunk / Liftgate Lock Switch: Service and Repair

REAR COMPARTMENT LID SWITCH REPLACEMENT

REMOVAL PROCEDURE

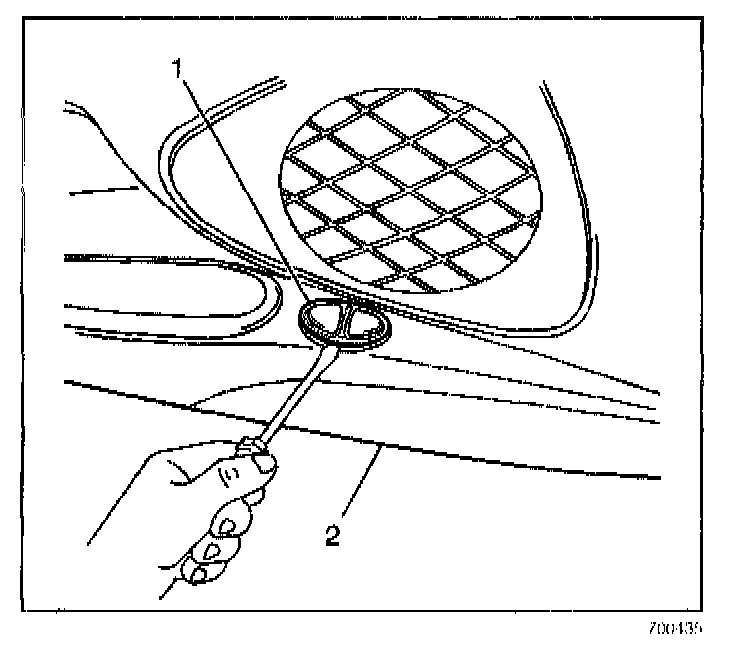

1. Using a small flat bladed tool, gently pry the rear compartment lid switch (1) from the door trim panel (2).

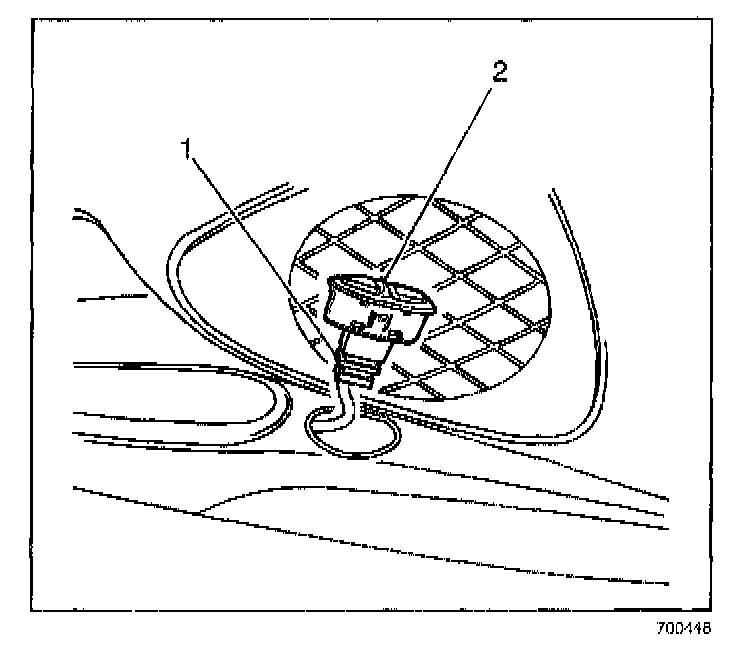

2. Disconnect the electrical connector (1) from the rear compartment lid switch (2).

INSTALLATION PROCEDURE

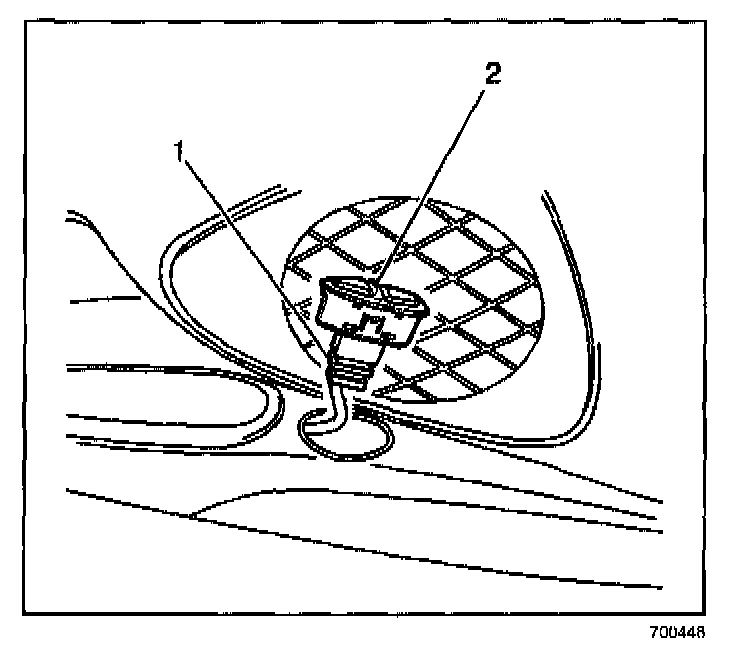

1. Connect the electrical connector (1) to the rear compartment lid switch (2).
2. Position the rear compartment lid switch (2) into the opening in the door trim panel.
3. Push downward on the rear compartment lid switch in order to engage the retainer clips.
