Power Door Lock Switch Replacement

REMOVAL PROCEDURE




1. Remove the inside door handle bezel.

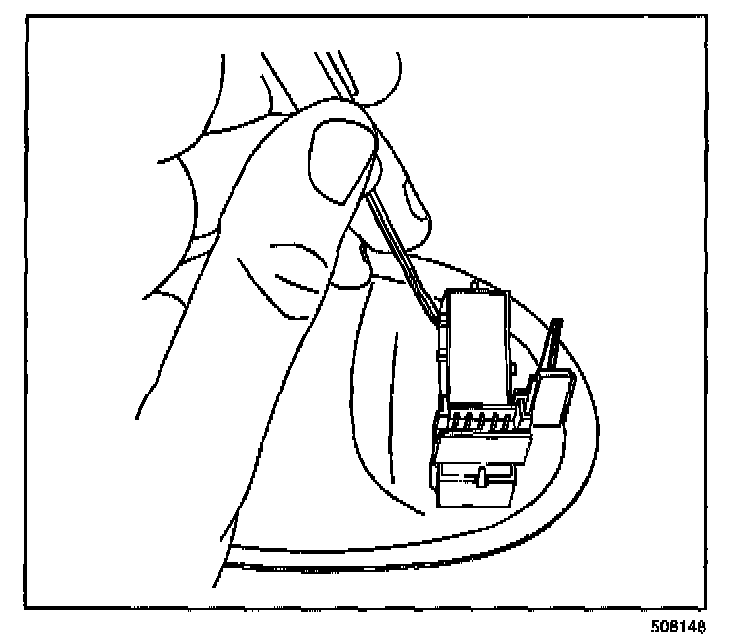

2. Remove the power door lock switch by releasing the lock tabs on the door handle bezel with a small flat bladed tool.

INSTALLATION PROCEDURE

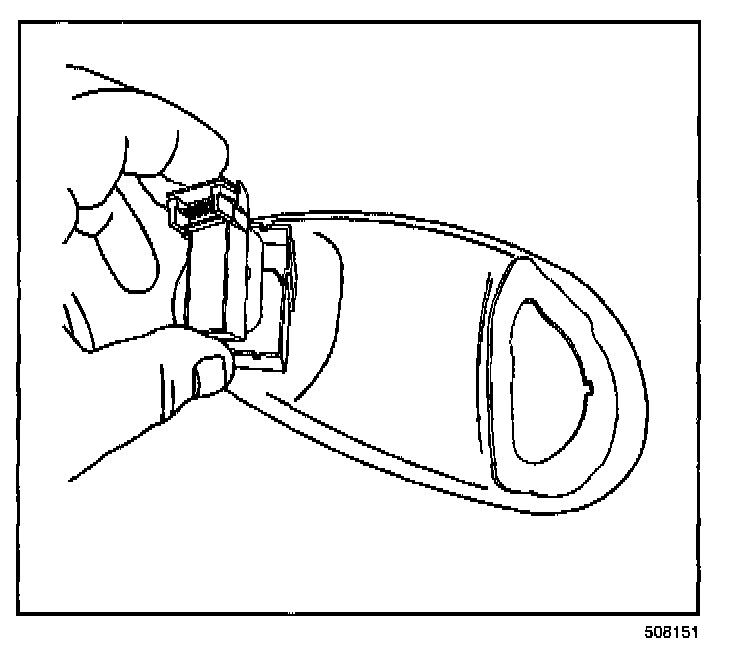

1. Snap the door lock switch into the door handle bezel.
2. Install the inside door handle bezel.
