Lumbar Support Does Not Move Up or Down (Without RPO A45)

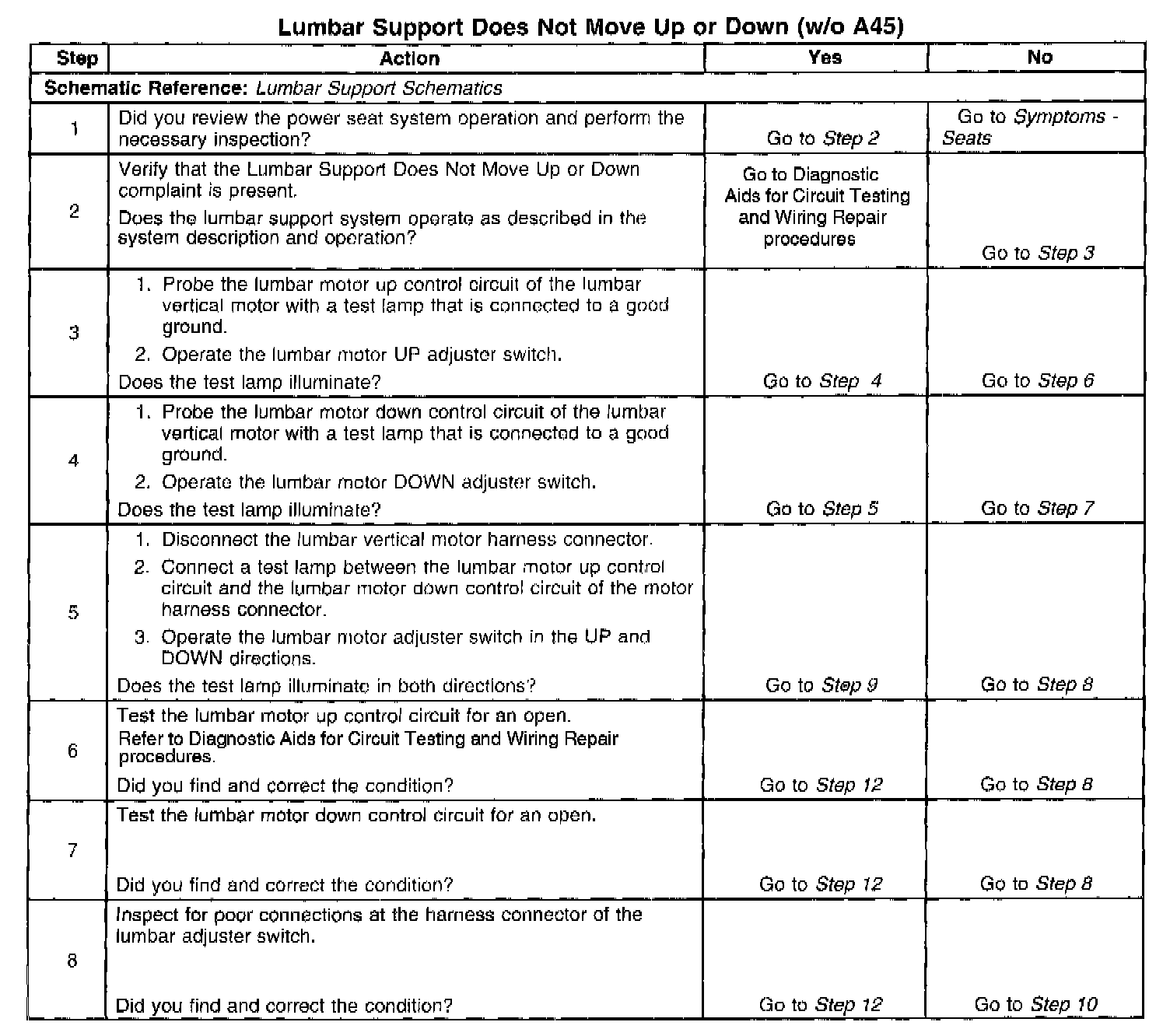

Steps 1-8:

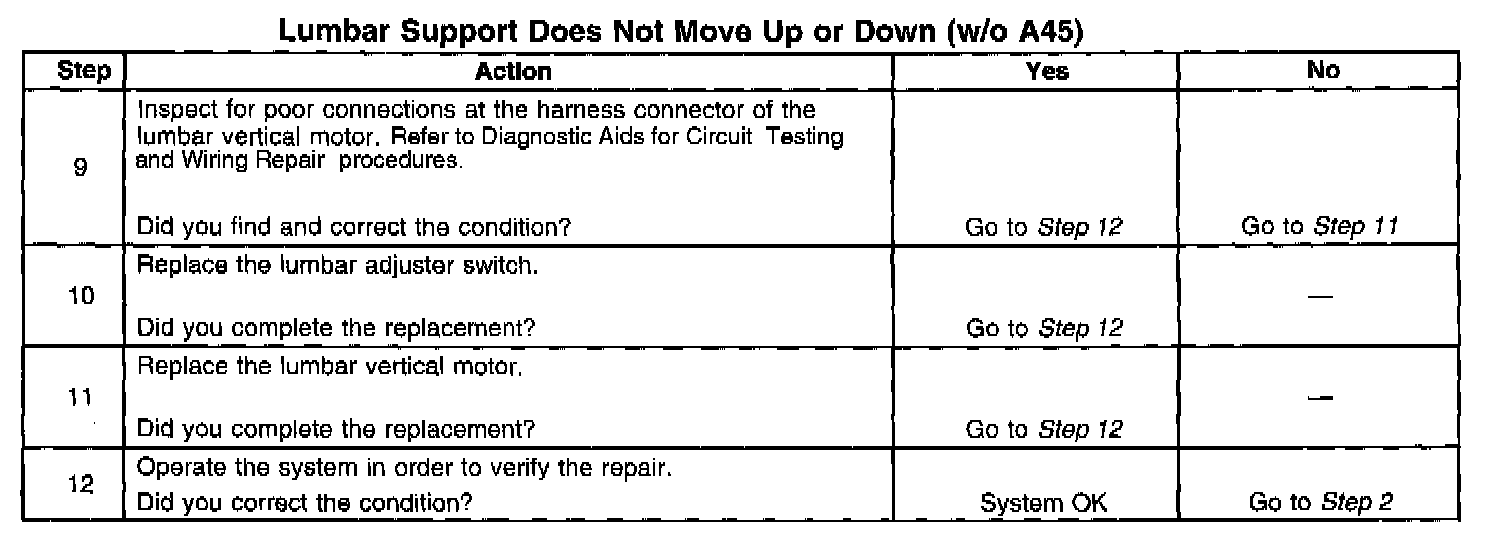

Steps 9-12:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
