Scan Tool Output Controls - Memory Seat Module (MSM)

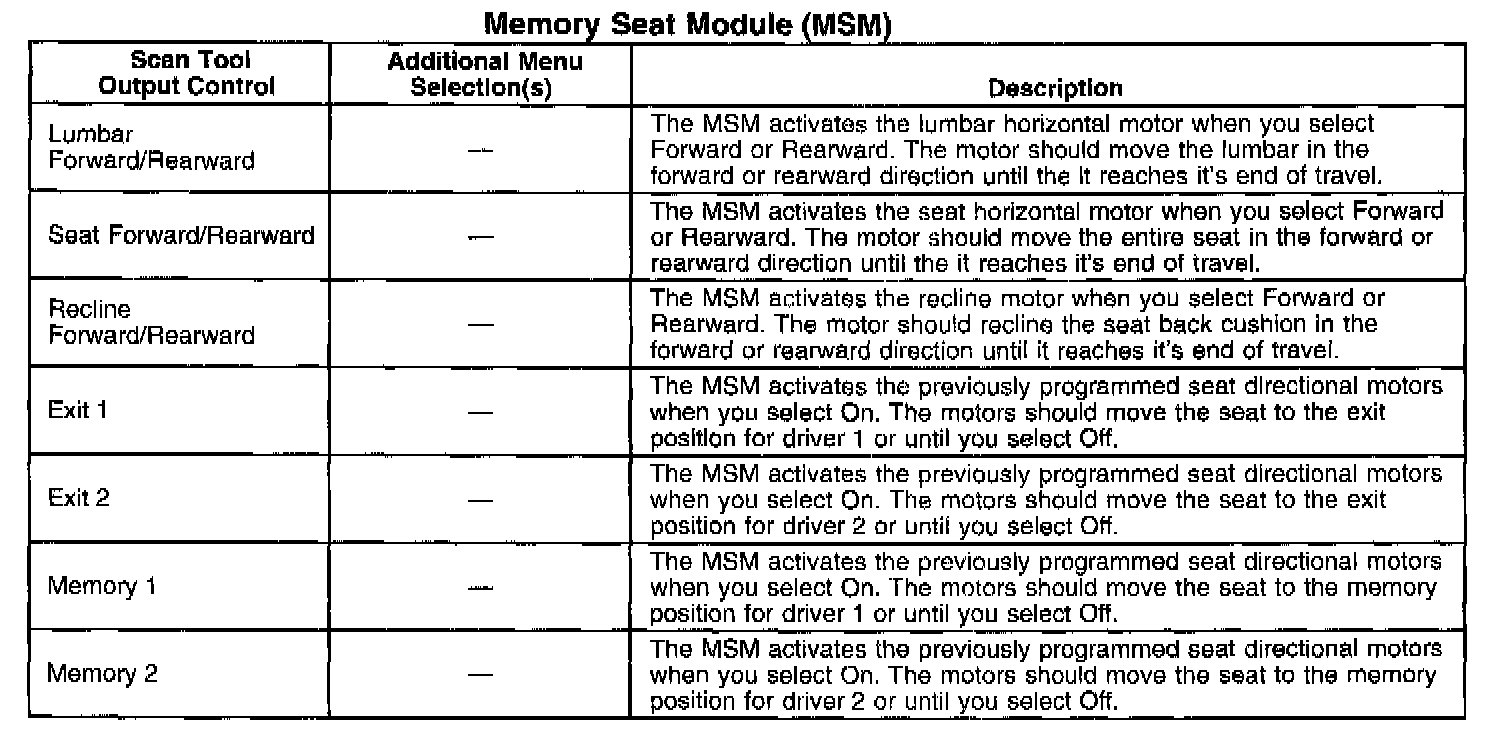

Memory Seat Module (MSM) Part 1:

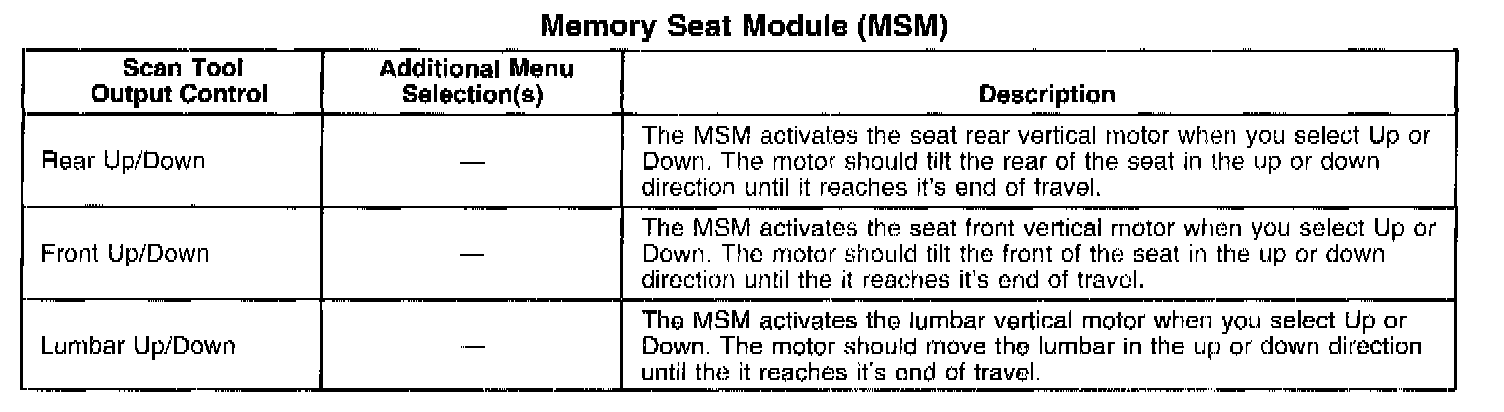

Memory Seat Module (MSM) Part 2:
