Seat Back Replacement - Rear

Seat Back Replacement - Rear

Removal Procedure

1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .

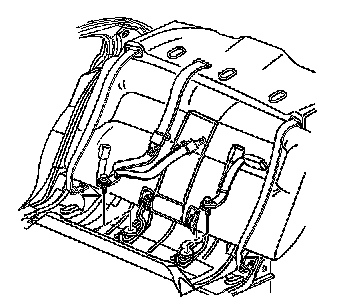

2. Remove the rear seat belt buckle and center shoulder belt anchor fasteners.
3. Lift the center shoulder belt off of the seat back and store on the rear shelf panel.




4. Insert a flat bladed tool between the top of the rear seat back and the rear shelf trim panel.
5. Push down on the flat bladed tool in order to release the rear seat back retainers.

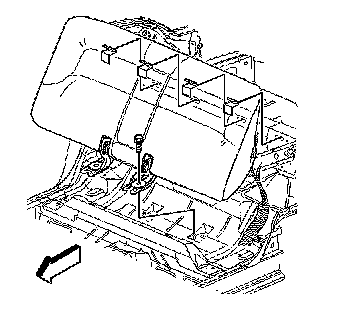

6. Release the 4 retainers and pull the seat back away from the cross car beam.
7. Position the rear shoulder belts in order to clear the rear seat back.
8. Remove the rear seat back.



Installation Procedure





1. Install the rear seat back into the car.
2. Align the rear seat back retainer clips with the slots on the cross car beam.
3. Push in firmly on the rear seat back in order to engage the rear seat back retainer clips.
4. Position the rear shoulder belts over the seat back.




5. Position the center shoulder belt over the rear seat back.

Notice: Refer to Fastener Notice in Cautions and Notices.


Important: Ensure that the fastener threads and fastener holes are free of any sealer patch material.


6. Install the rear seat belt buckle and center shoulder belt anchor fasteners.

Tighten the fasteners to 41 N.m (32 lb ft).

7. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear (Seat Cushion Replacement - Rear) .
