Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Heated Seats Schematics >> Front Heated Seats (Partial)

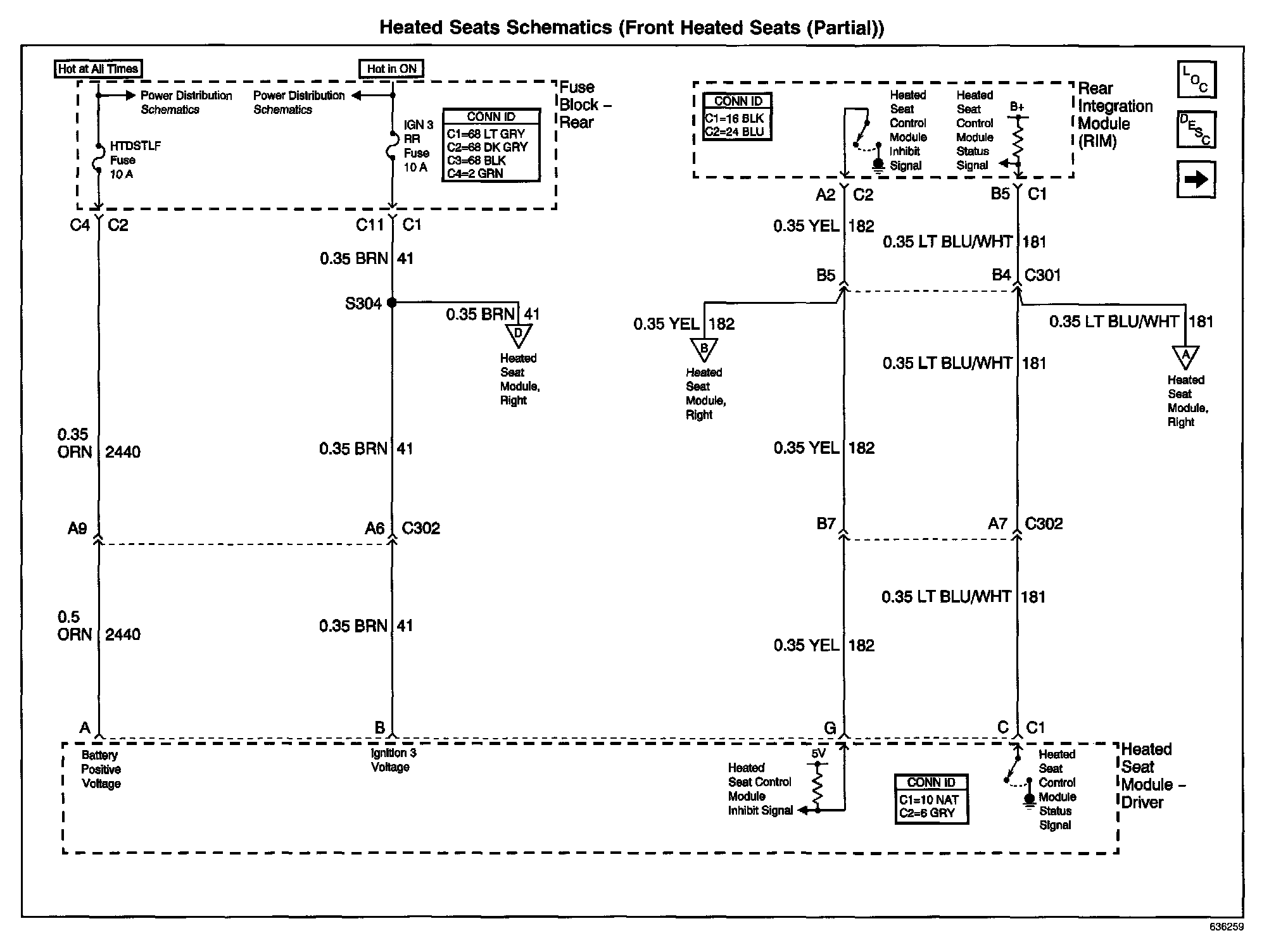

Front Heated Seats (Partial)

Heated Seats Schematics: Front Heated Seats (Partial):
