Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Power Sunroof Inoperative

Power Sunroof Inoperative

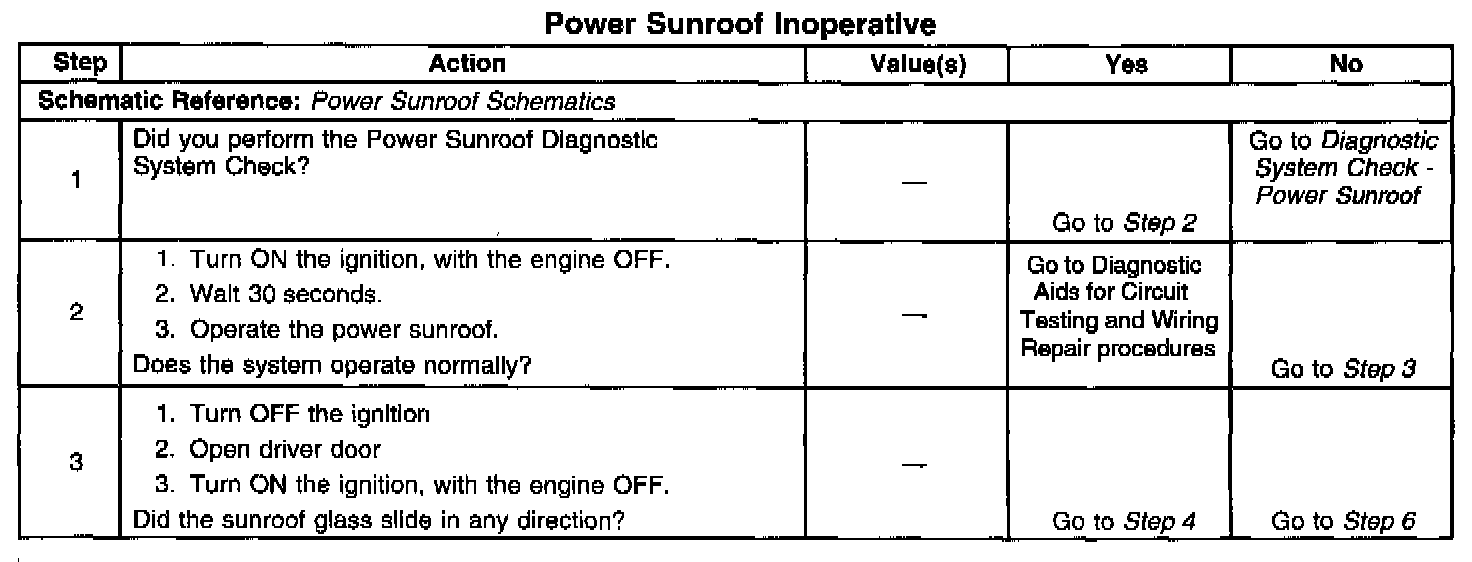

Steps 1-3:

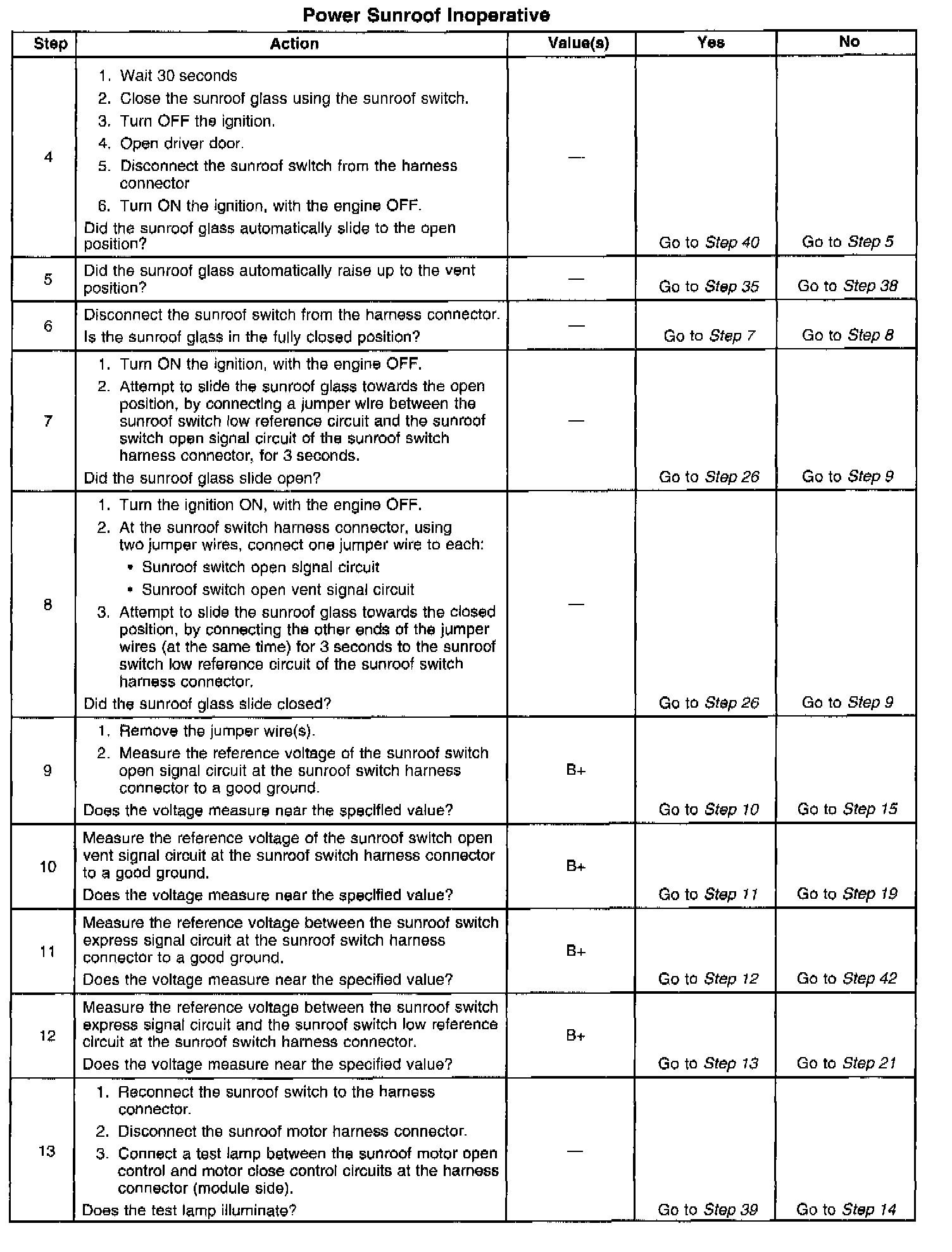

Steps 4-13:

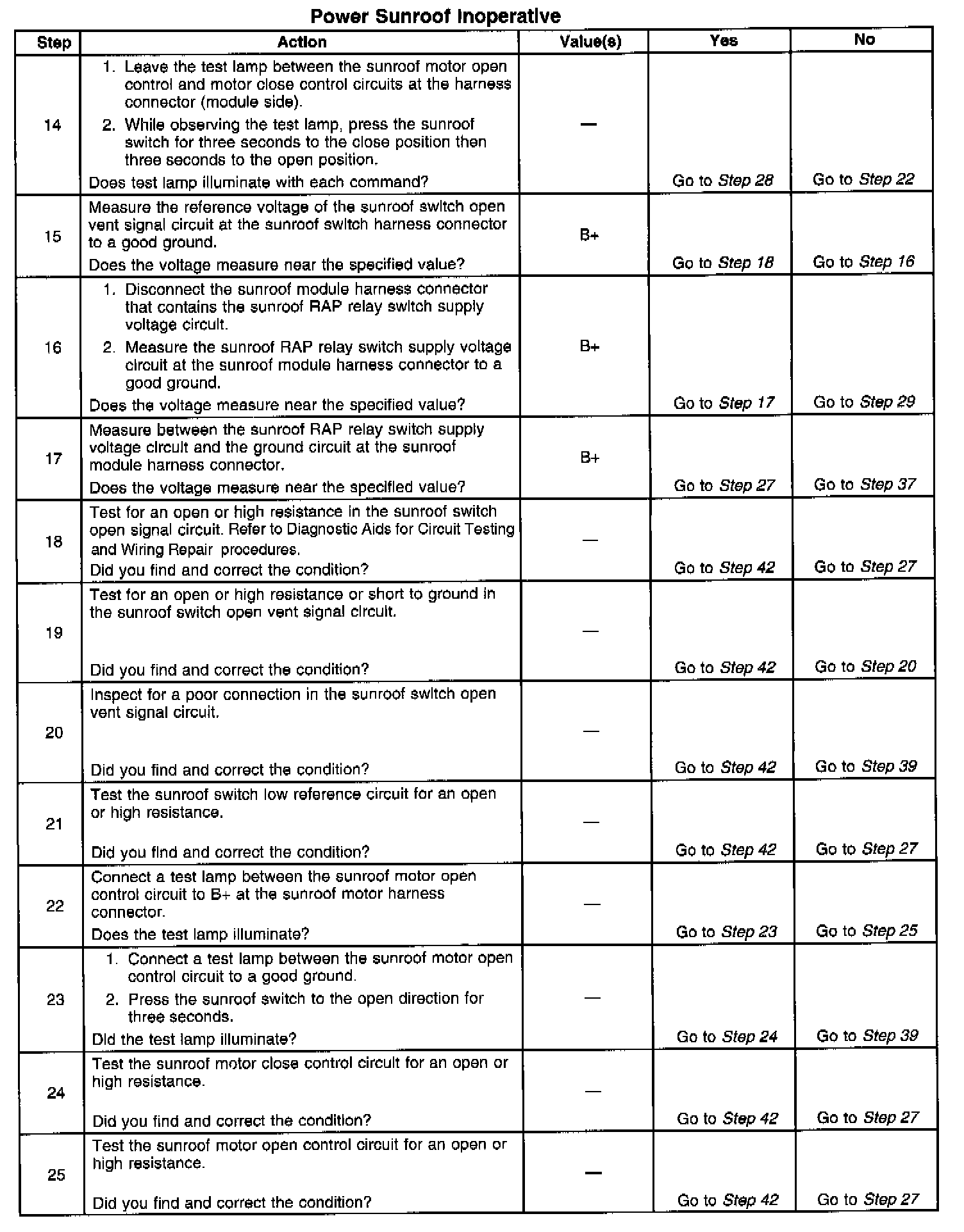

Steps 14-25:

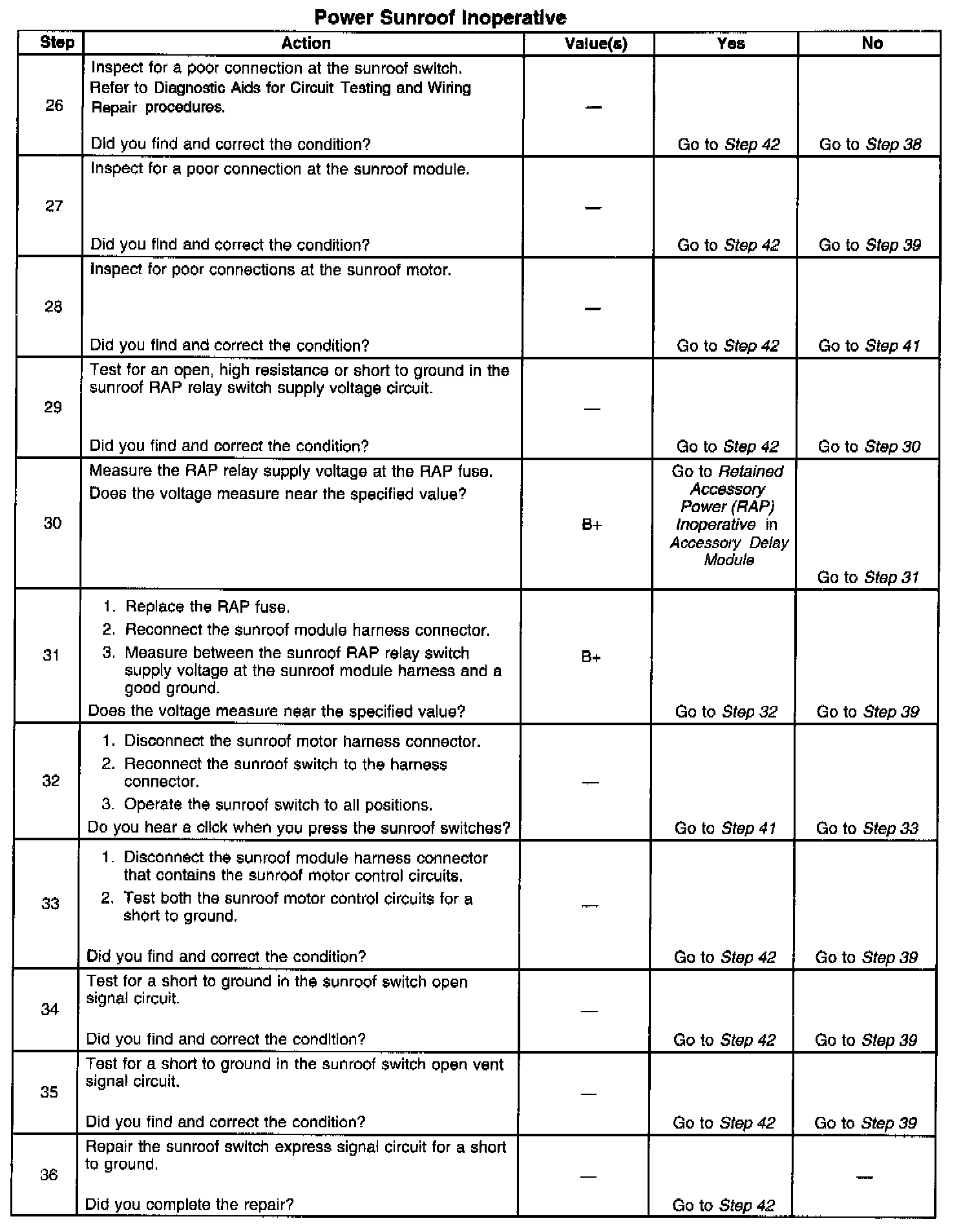

Steps 26-36:

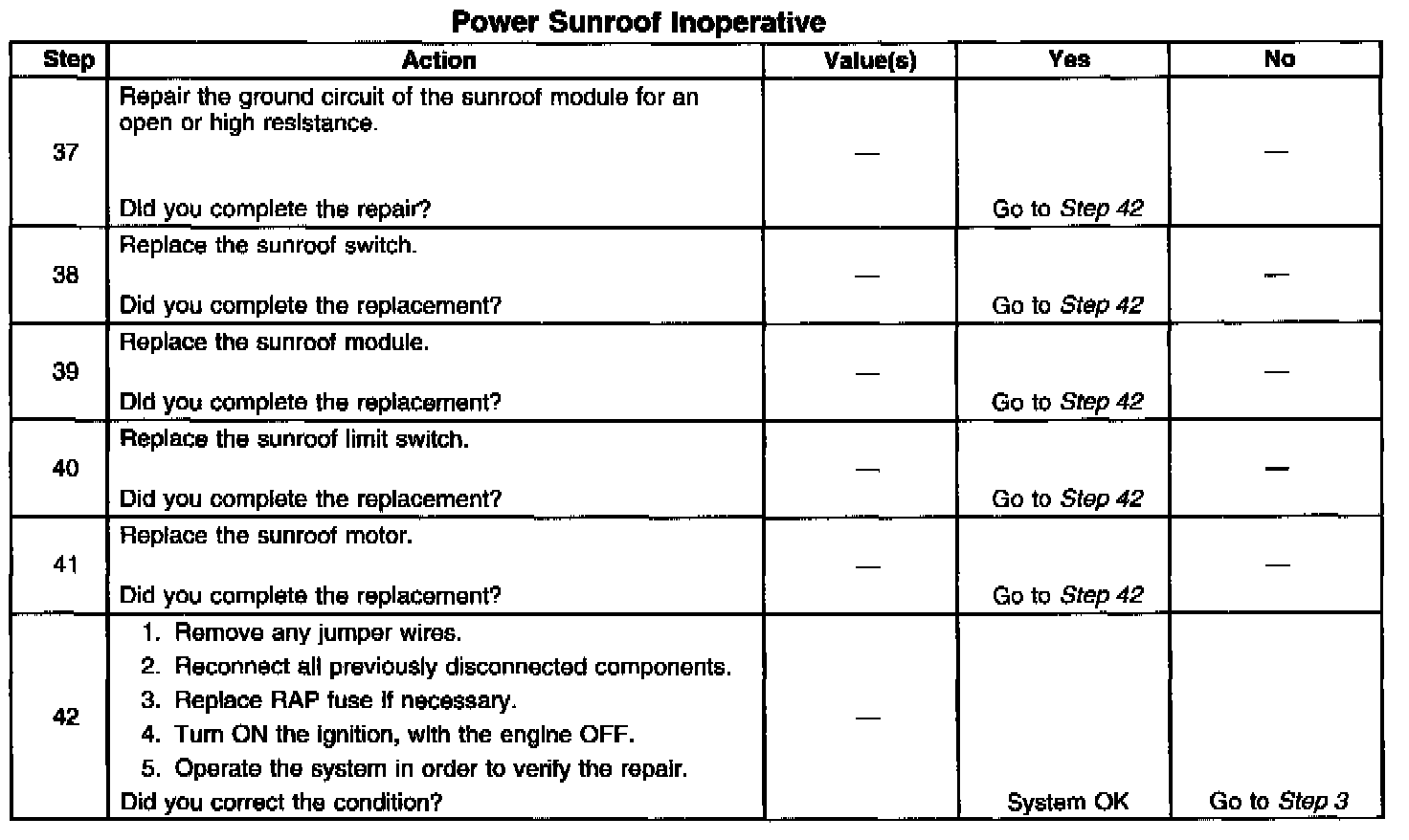

Steps 37-42:
