Right Rear Door Module (RRDM) Power, Ground And I/O)
Right Rear Door Module (RRDM) Power, Ground And I/O)

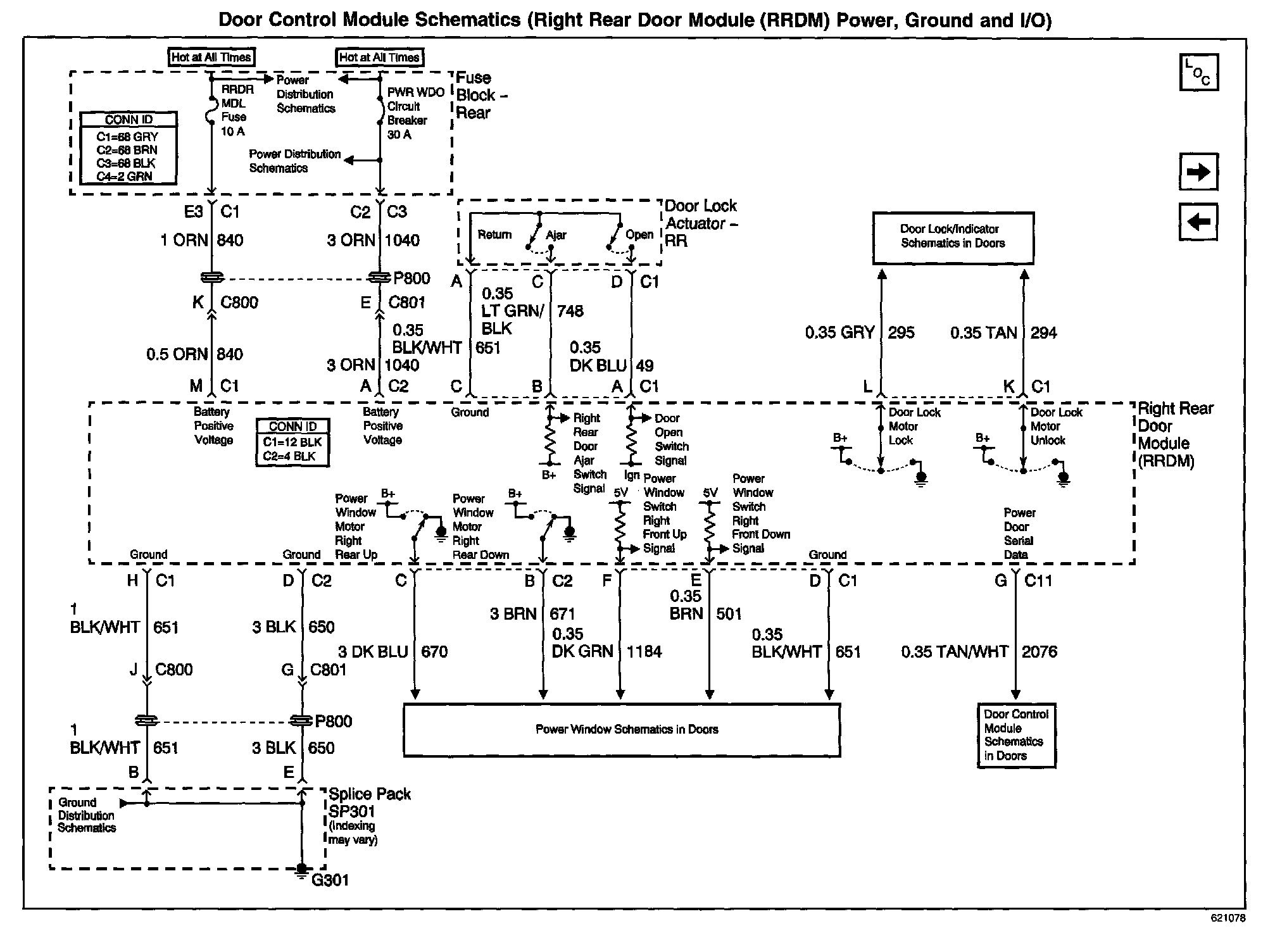

Door Control Module Schematics: Right Rear Door Module (RRDM) Power, Ground And I/O):
