Front Passenger Outside Rearview Mirror

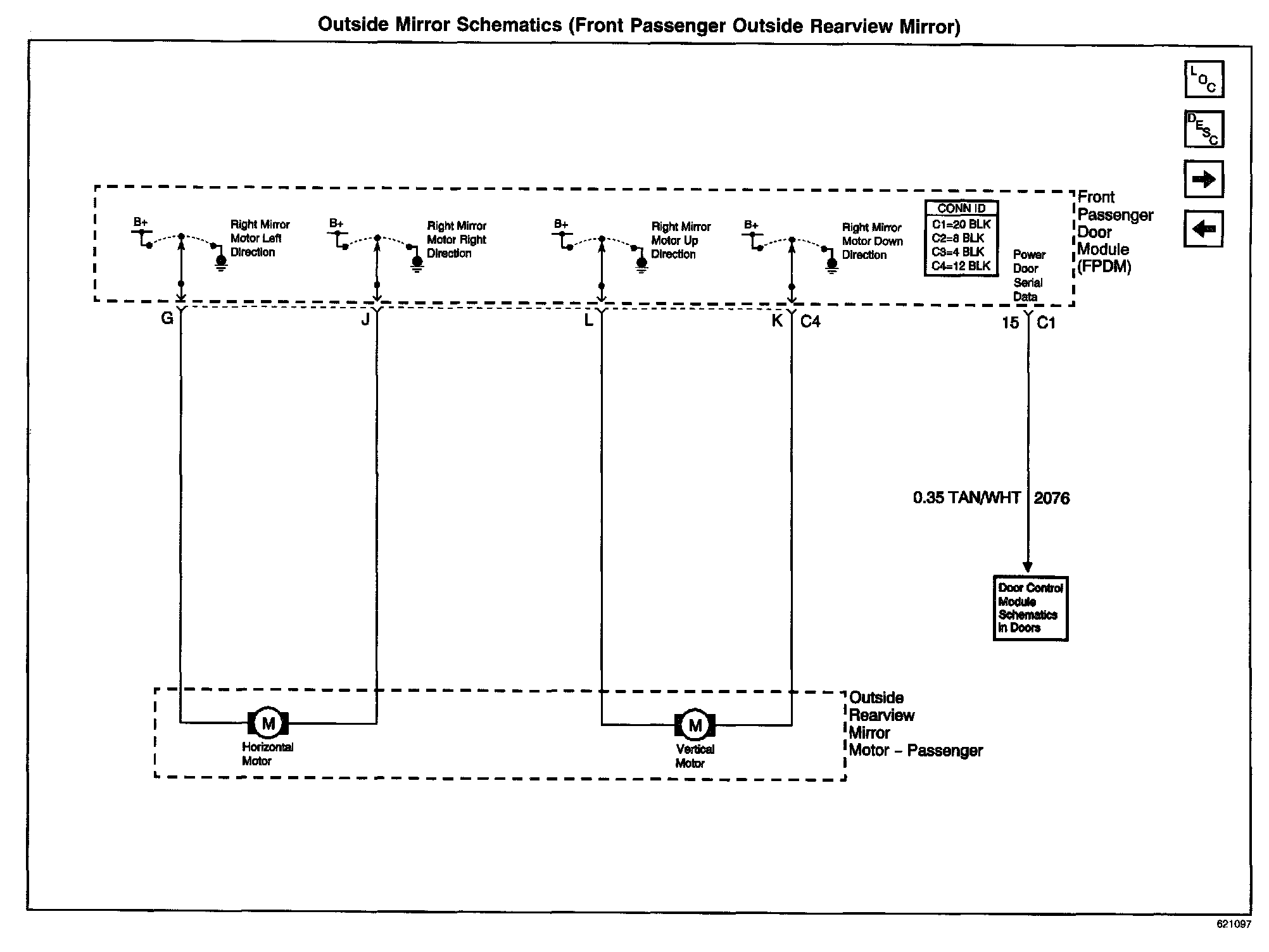

Outside Mirror Schematics: Front Passenger Outside Rearview Mirror:
