Power Door Lock Actuator: Service and Repair

REMOVAL PROCEDURE

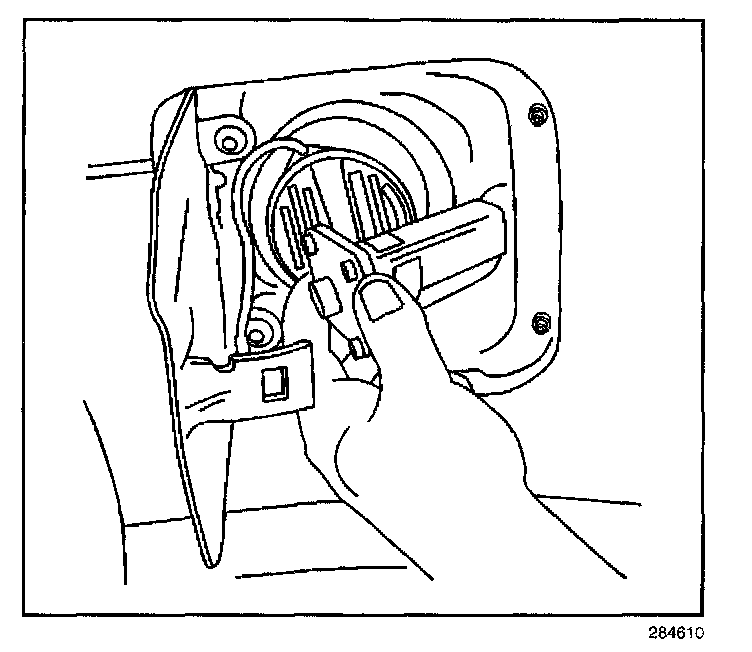

1. Open the fuel filler door.
2. Open the rear compartment lid.
3. Route the fuel filler door release cable through the opening in the LH side rear compartment trim panel.
4. Remove the LH side rear compartment trim panel.

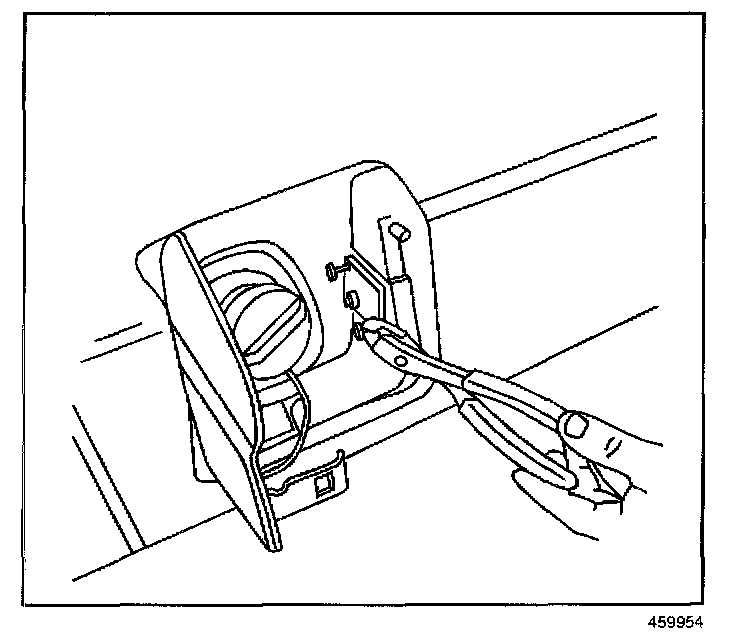

5. Remove the push pins retaining the fuel filler door actuator to the fuel filler pocket.

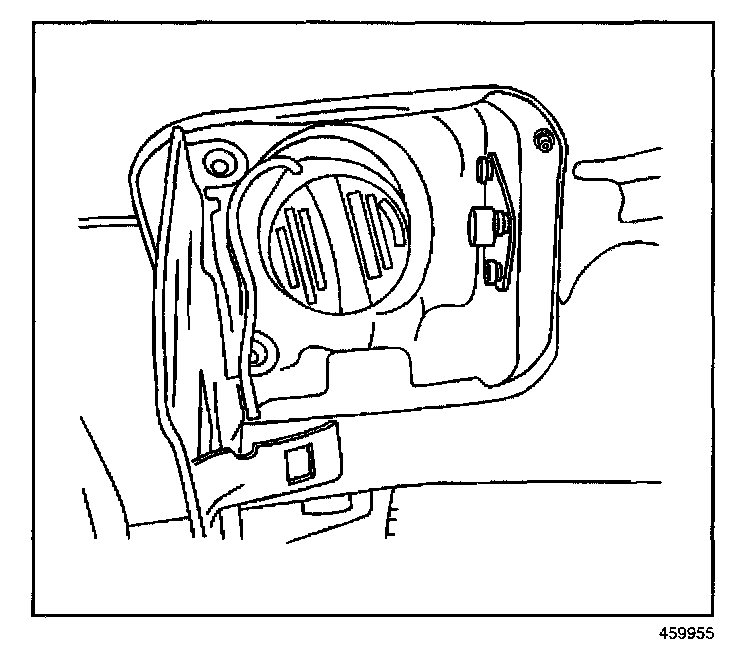

6. Remove the fuel filler door actuator from the fuel filler pocket by pushing the actuator outward from the inside of the rear compartment.




7. Remove the fuel filler door actuator from the vehicle.

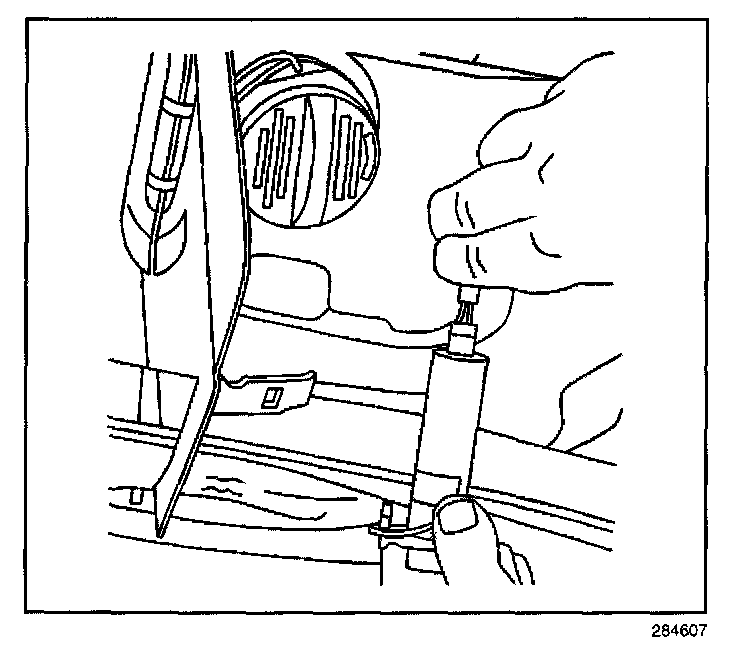

8. Disconnect the electrical connector from the fuel filler door actuator.

INSTALLATION PROCEDURE

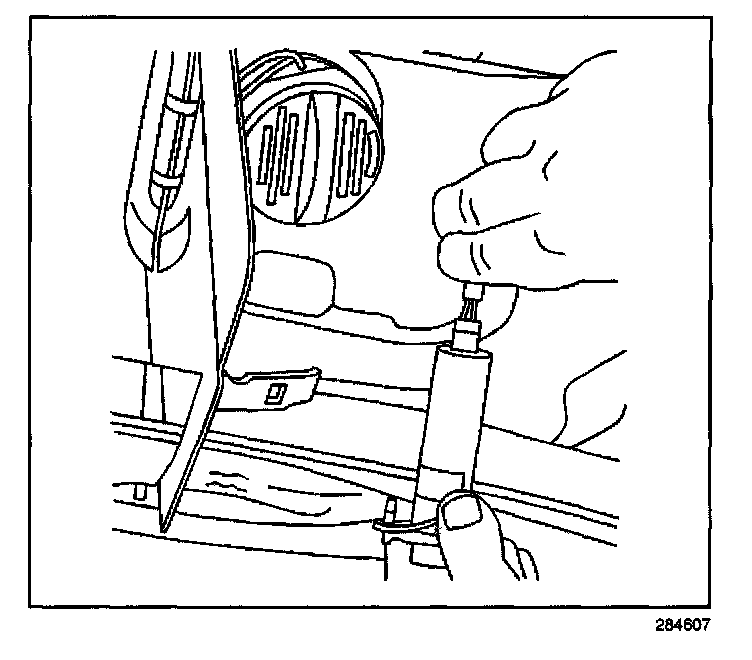

1. Connect the electrical connector to the fuel filler door actuator.
2. Route the fuel filler door release cable through the hole in the fuel filler pocket.




3. Install the fuel filler door actuator to the fuel filler pocket.




4. Install the push pins to retain the fuel filler door actuator to the fuel filler pocket.
5. Install the LH side rear compartment trim panel.
6. Route the fuel filler door release cable through the opening in the LH side rear compartment trim panel.
7. Close the rear compartment lid.

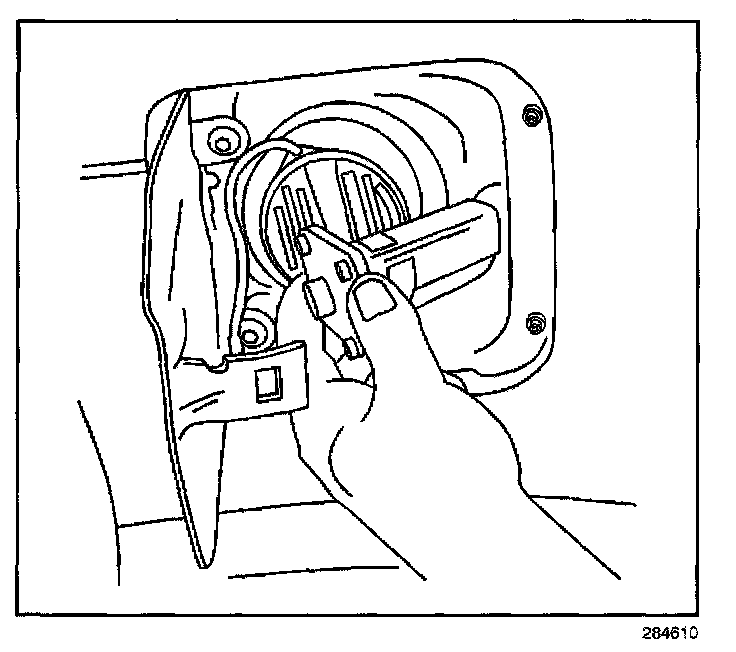

8. Close the fuel filler door.
