Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> RR

RR

Door Lock Actuator - RR C1:

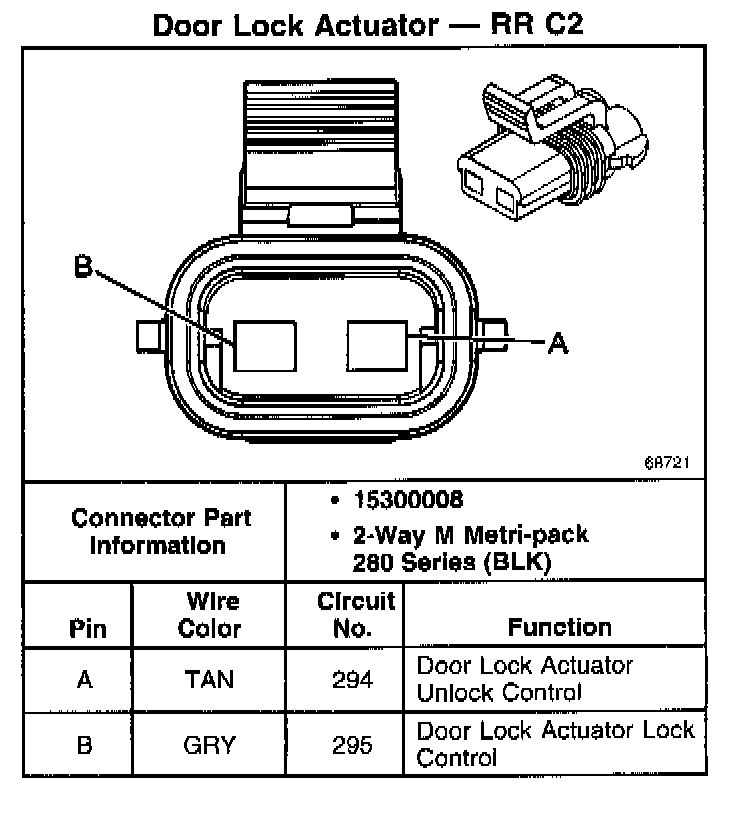

Door Lock Actuator - RR C2:
