Door Locks: Service and Repair

Lock Cylinder Replacement - Door

Removal Procedure





1. Place the window in the full up position.
2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
3. Remove the door module.
4. Remove the water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair

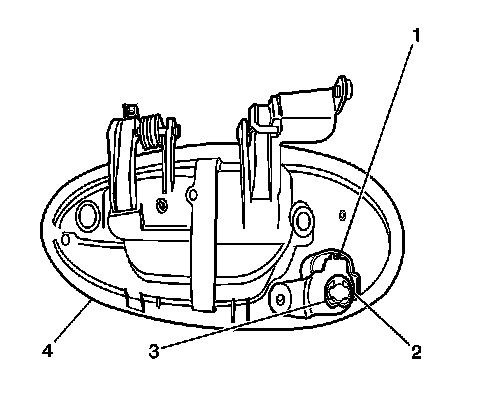

5. Remove the E-clip (3) on the lock cylinder to remove the lock rod and arm (2).
6. Spread the omega clip (1).
7. Remove the lock cylinder from the backside of the door handle (4).



Installation Procedure

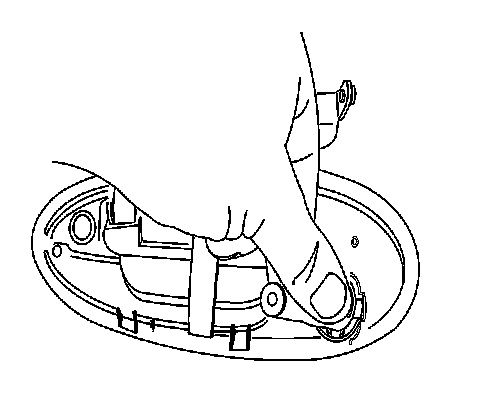

1. Install the lock cylinder to the outside door handle from the back side.




2. Install the lock cylinder rod and arm (2) to the lock cylinder with the E-clip (3).
3. Install the water deflector. Refer to Water Deflector Replacement - Front Door Service and Repair
4. Install the door module.
5. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Service and Repair) .
