Instrument Panel Compartment - Handle Replacement

Handle Replacement - IP Compartment

Removal Procedure

1. Remove the IP storage compartment. Refer to Storage Compartment Replacement - IP (Instrument Panel Storage Compartment - Replacement) .

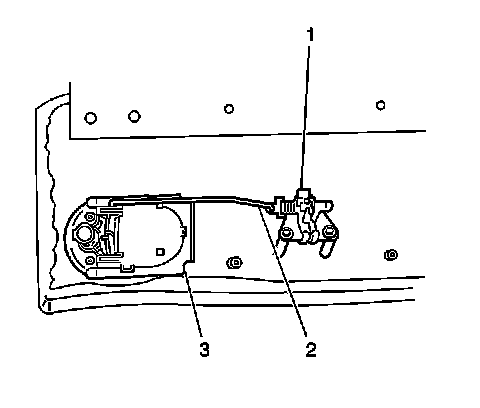

2. Disconnect the lever rod (2) from the handle.
3. Remove the clip (3) that secures the IP compartment handle to the door.
4. Remove the handle assembly from the door.



Installation Procedure





1. Install the IP compartment handle and insert the clip (3).
2. Install the lever rod (2) to the handle.
3. Install the IP storage compartment. Refer to Storage Compartment Replacement - IP (Instrument Panel Storage Compartment - Replacement) .
