Instrument Panel (IP) - Air Deflector/Louver - Left

REMOVAL PROCEDURE




1. Remove the left IP outer trim cover.

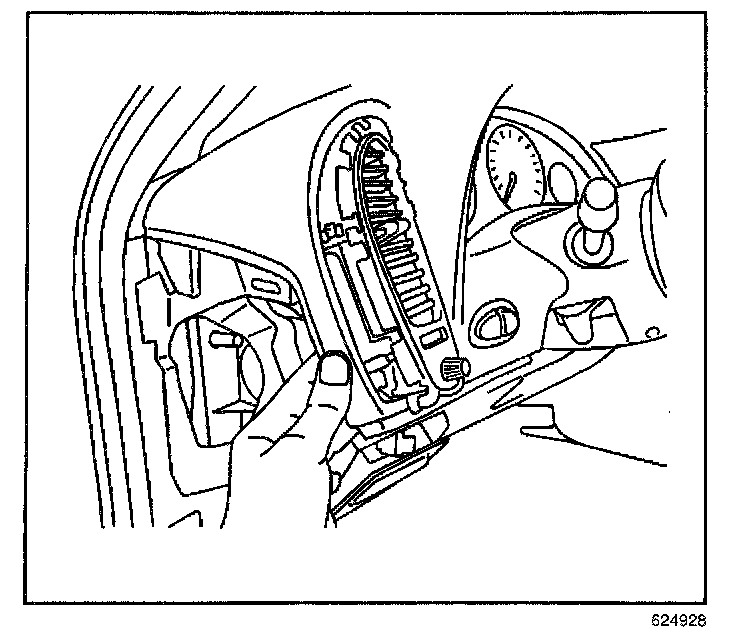

2. Remove the left air deflector by pushing from the rear and pulling out from the IP cluster trim plate.

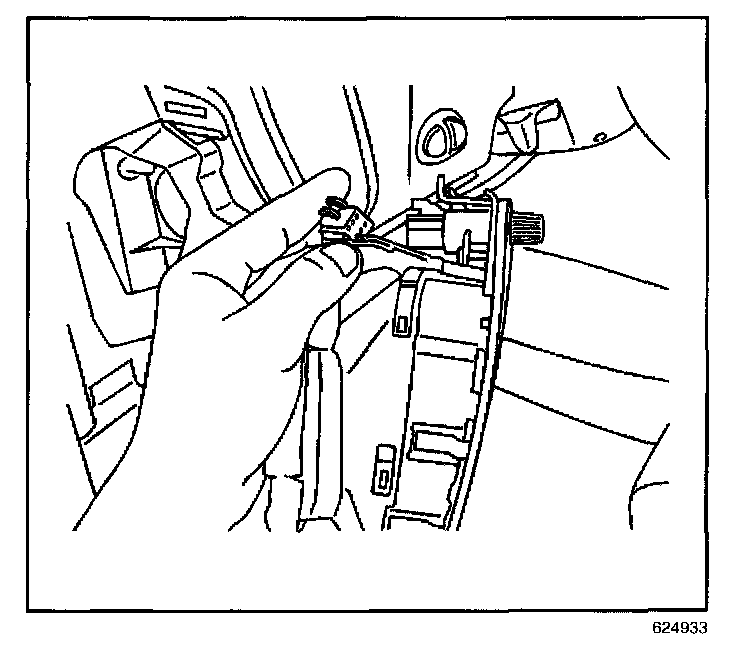

3. Disconnect the electrical connector from the dimmer switch.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the dimmer switch.




2. Install the left air deflector by pushing into the IP cluster trim plate.
3. Install the left IP outer trim cover.
