Closeout/Insulator Panel Replacement - Left

Closeout/Insulator Panel Replacement - Left

Removal Procedure

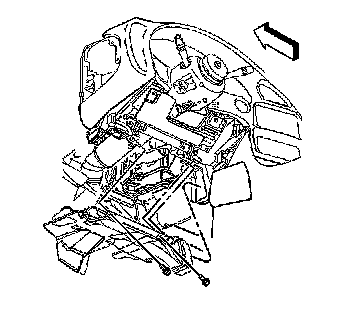

1. Remove the fasteners securing the closeout insulator panel to the instrument panel retainer.
2. Remove the heater temperature sensor from the closeout insulator panel by turning 1/4 turn counter clockwise.
3. Disconnect electrical connector from the lower IP courtesy lamp.
4. Slide the closeout insulator panel rearward in order to remove from the vehicle.



Installation Procedure





1. Set the forward edge of the closeout insulator panel onto the shelf of carpeting at the front of the vehicle.
2. Connect the electrical connector to the lower IP courtesy lamp.
3. Install the heater temperature sensor to the closeout insulator panel by turning 1/4 turn clockwise.
4. Install fasteners into lower IP.
5. Position the closeout insulator panel to the IP retainer.

Notice: Refer to Fastener Notice in Cautions and Notices.

6. Install the fasteners in order to secure the close out insulator panel to the IP retainer.

Tighten the fasteners to 2 N.m (18 lb in).
