Fender Sound Insulator Replacement - Front

Fender Sound Insulator Replacement - Front

Removal Procedure

1. Remove the front fascia extension. Refer to Traction Off Indicator Inoperative (w/NW9) .
2. Remove the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .

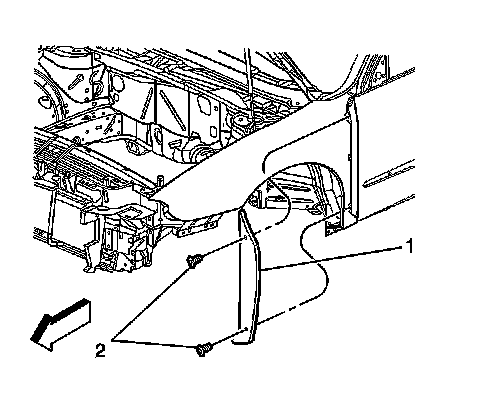

3. Remove the push in retainers (2) from the front fender sound insulator (1).
4. Remove the front fender sound insulator (1) from the vehicle.



Installation Procedure





1. Install the front fender sound insulator (1) to the vehicle.
2. Install the push in retainers (2) to the front fender sound insulator (1).
3. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front (Service and Repair) .
4. Install the front fascia extension. Refer to Traction Off Indicator Inoperative (w/NW9) .
