Trunk / Liftgate Weatherstrip: Service and Repair

Weatherstrip Replacement - Rear Compartment Opening

Removal Procedure





1. Open the rear compartment lid.

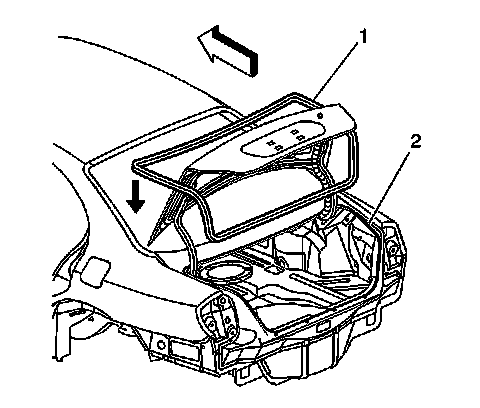

2. Pull the weatherstrip (1) from the rear compartment lid pinch-weld flange (2).
3. Lift the weatherstrip (1) over the top of the lid.



Installation Procedure





1. Install the weatherstrip (1) over the top of the rear compartment lid.
2. Press the weatherstrip (1) to the rear compartment pinch-weld flange (2).
3. Insure that the weatherstrip is secured properly to the entire pinch-weld flange.
4. Close the rear compartment lid.
