FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 2002 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Fuel Door >> Testing and Inspection

Fuel Door: Testing and Inspection

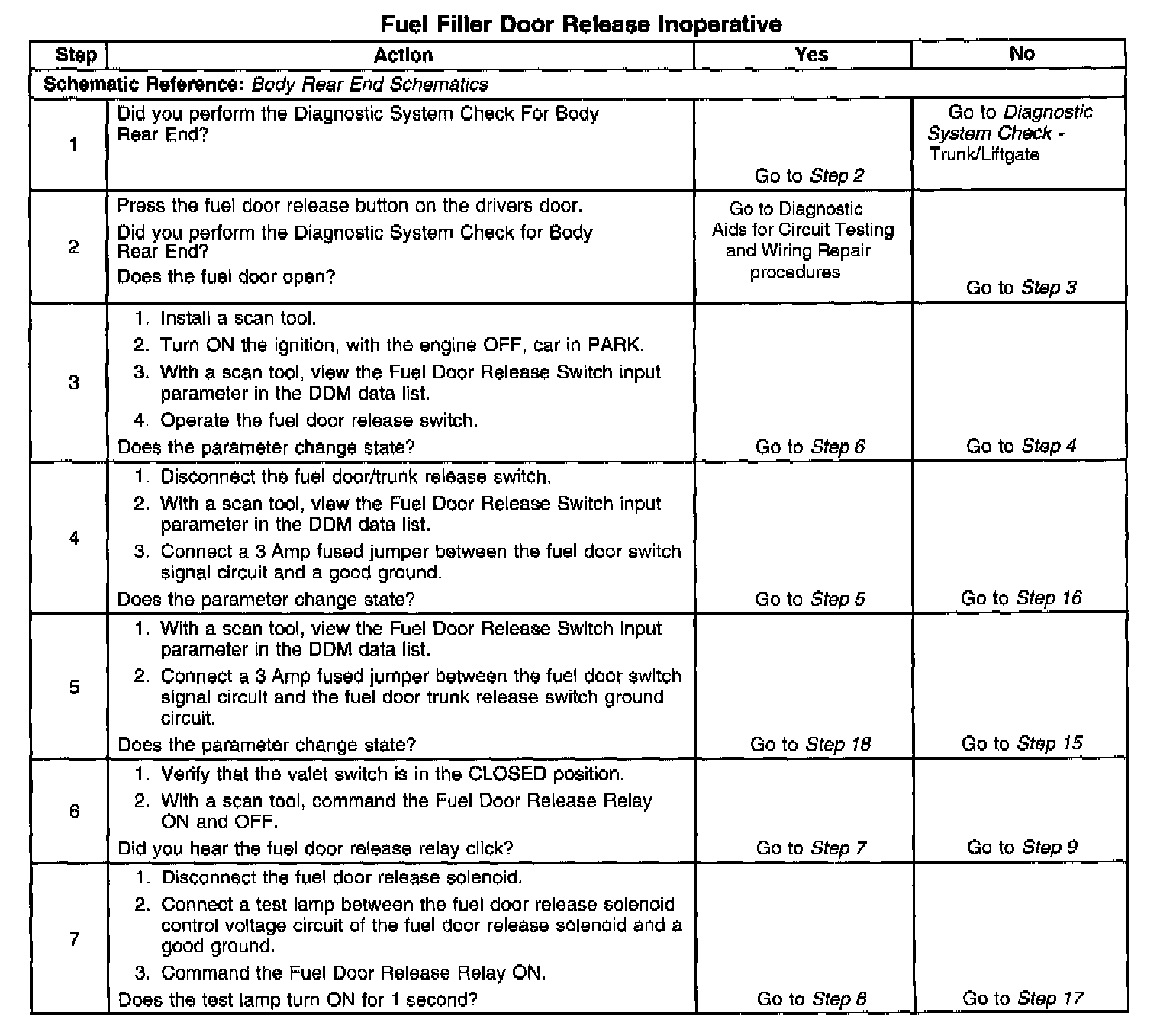

Steps 1-7:

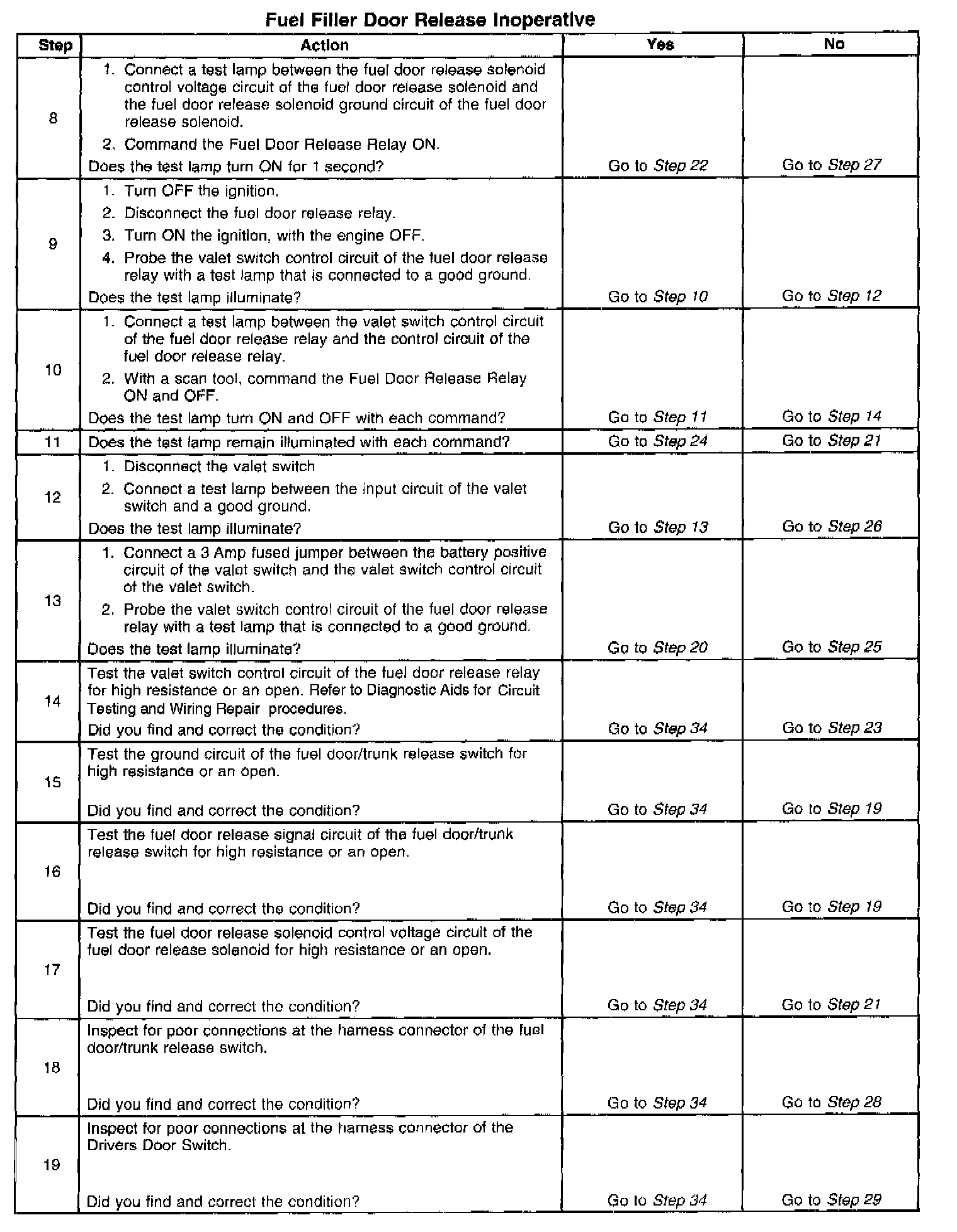

Steps 8-19:



Steps 20-34:
