Power Windows - Inoperative - All

TEST DESCRIPTION

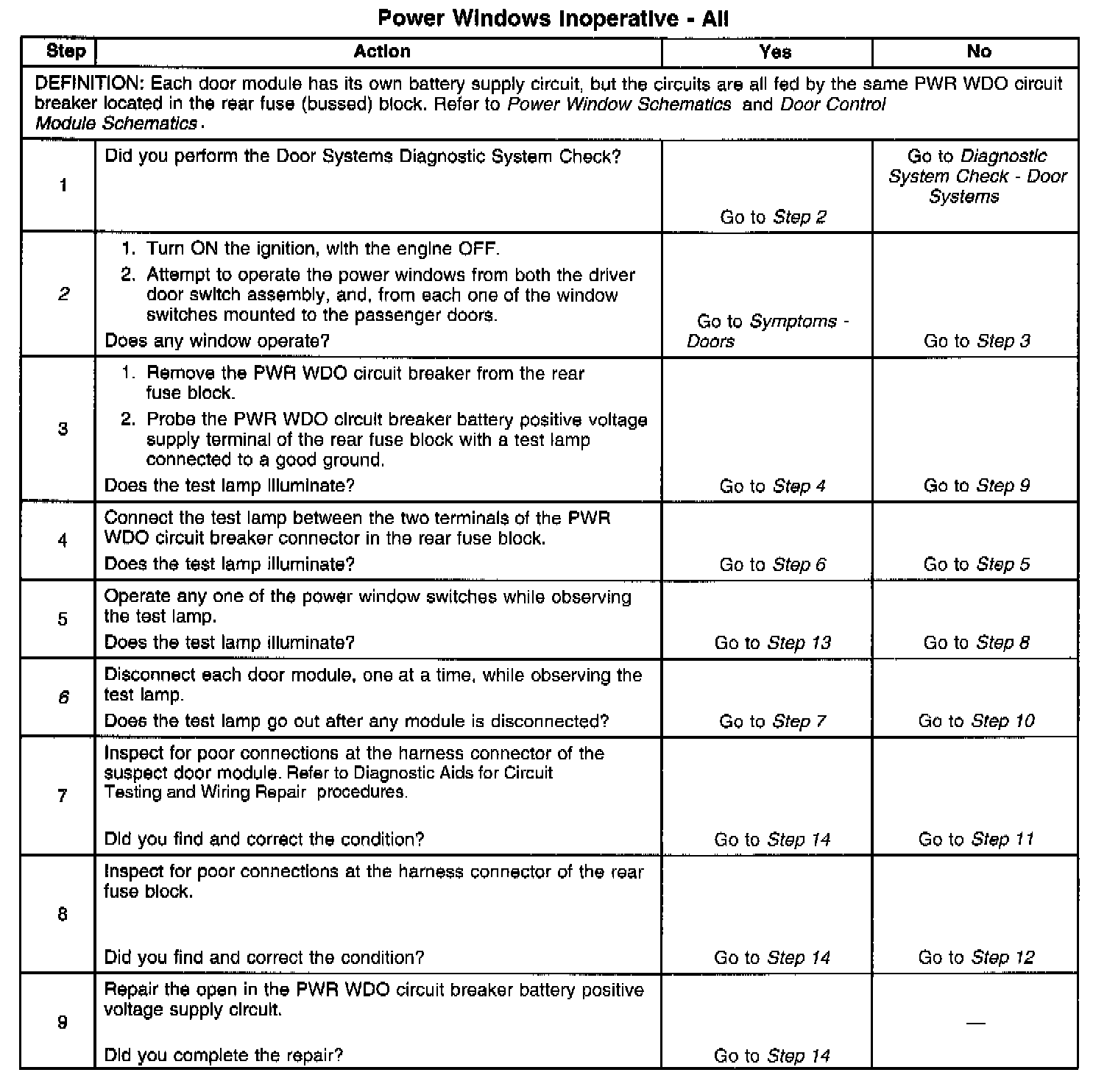

Steps 1-9:

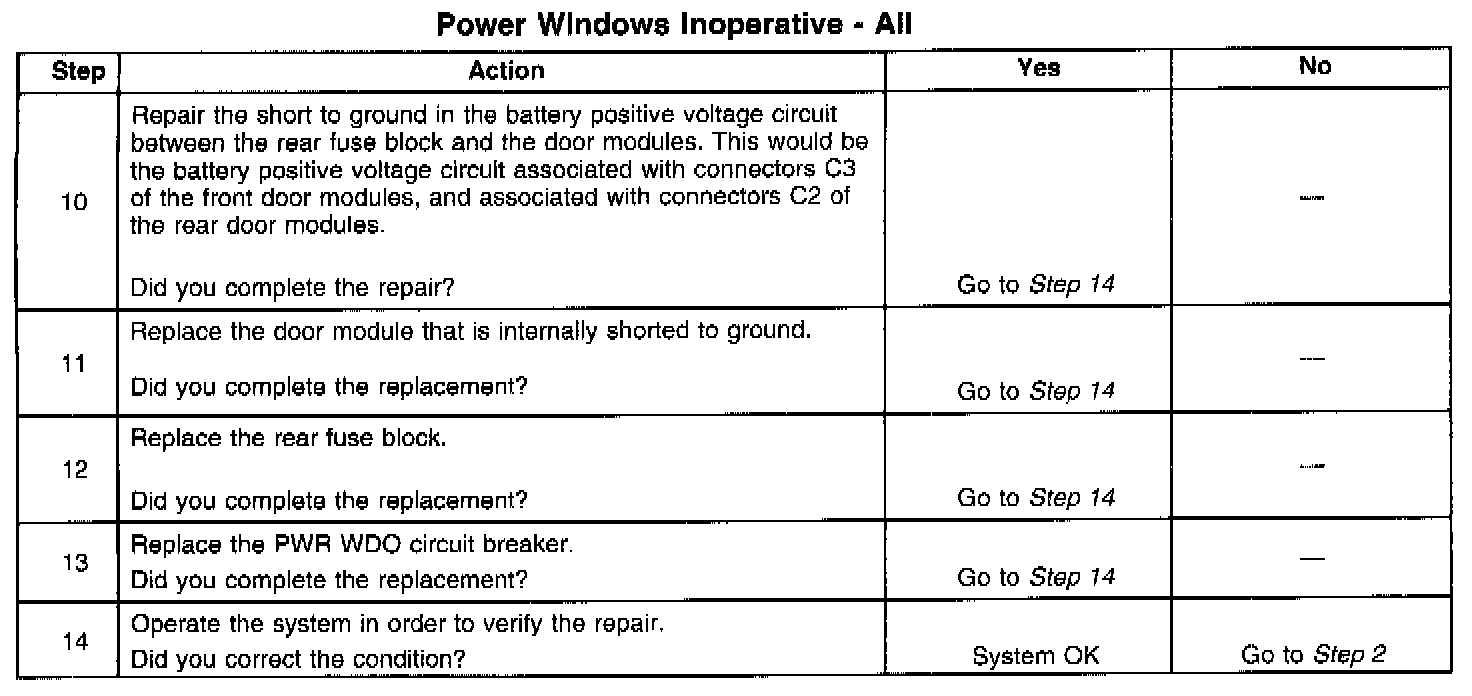

Steps 10-14:

The Numbers below refer to the step numbers on the diagnostic table.
2. This step determines if this is the correct chart for the symptom.
6. This step determines if a door module is internally shorted to ground, or the door module battery positive voltage circuit, associated with front door modules connector C3 and rear door modules connector C2, is shorted to ground.
