RIM Input/Output

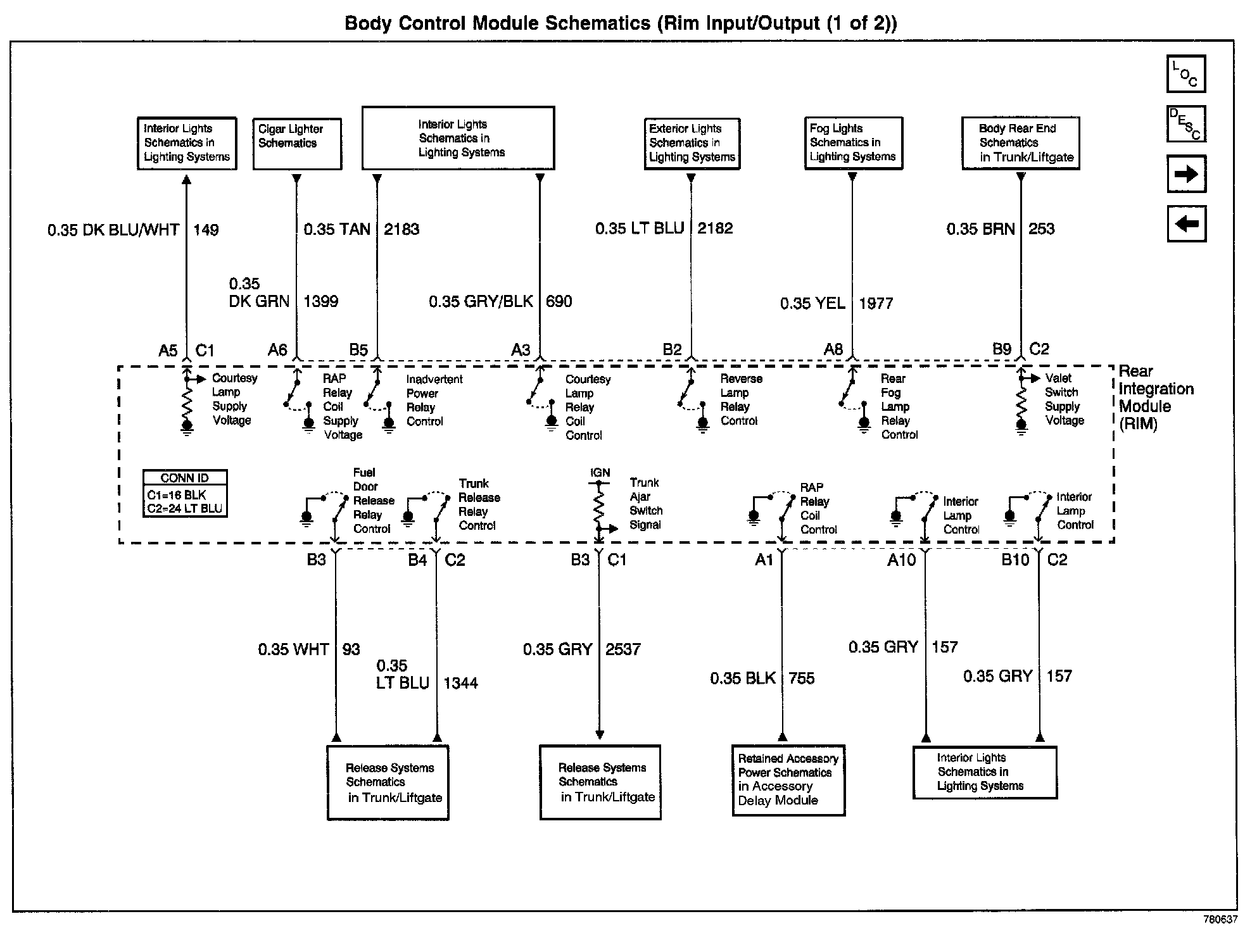

Body Control Module Schematics: Rim Input/Output Part 1:

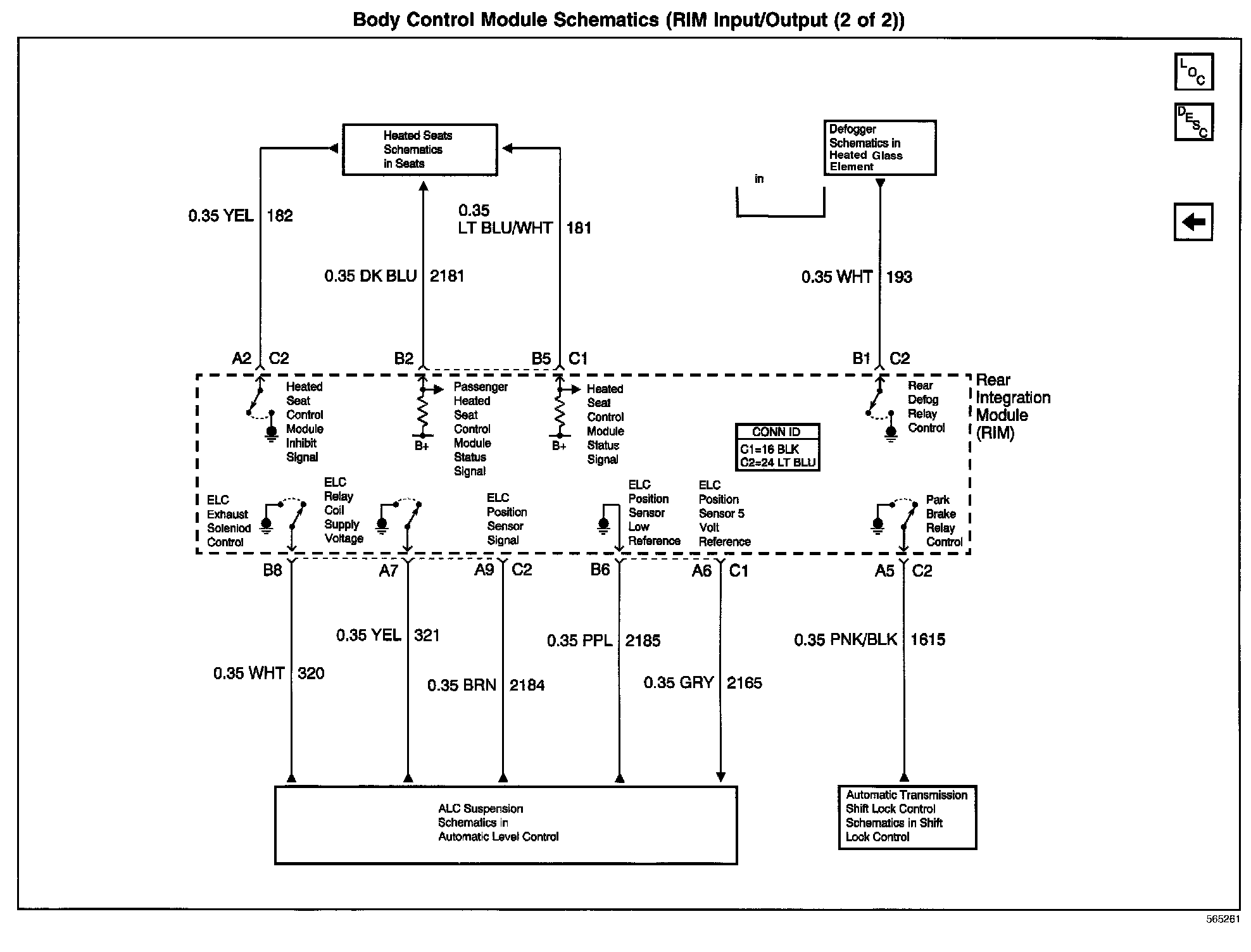

Body Control Module Schematics: Rim Input/Output Part 2:
