DIM Input/Output

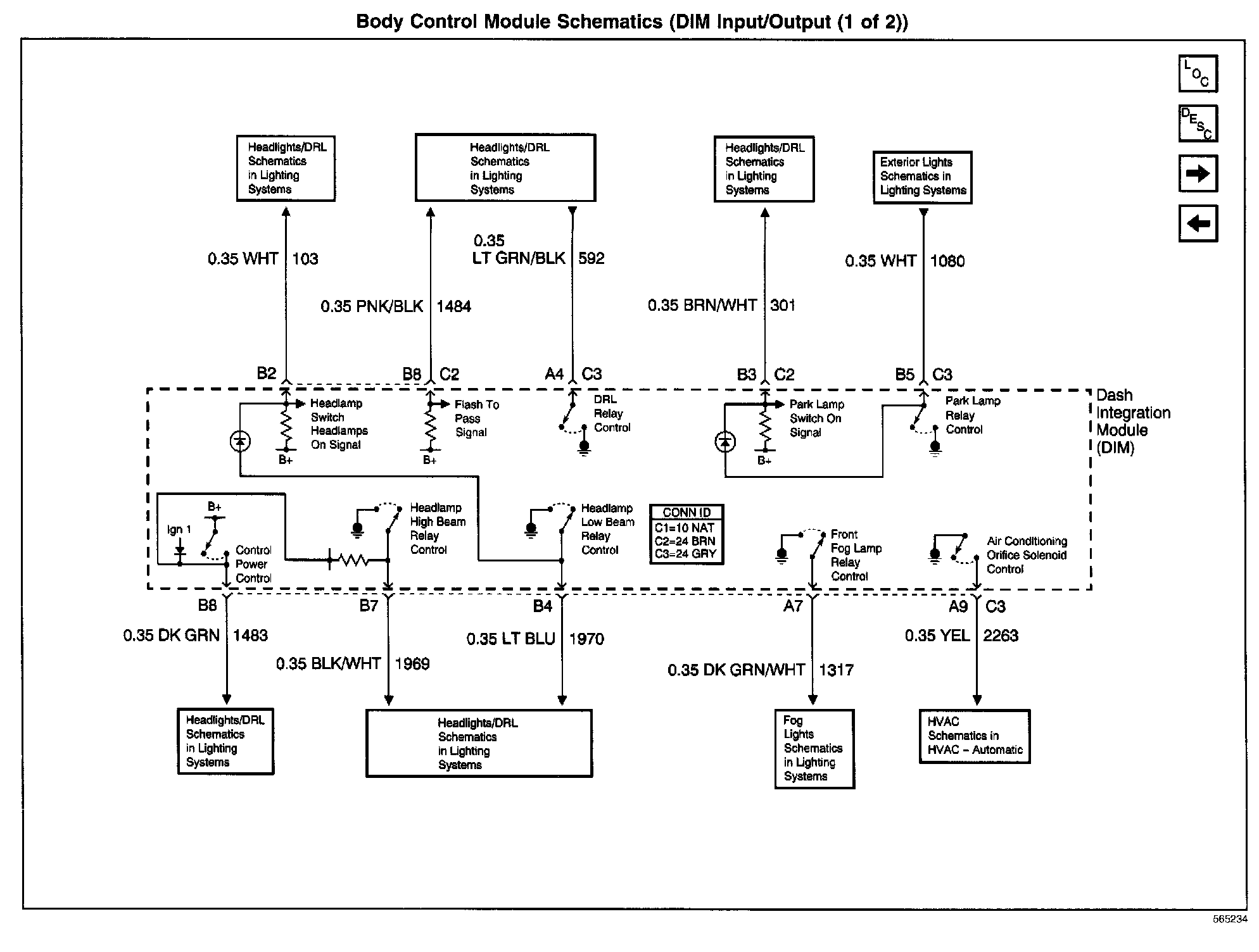

Body Control Module Schematics: DIM Input/Output Part 1:

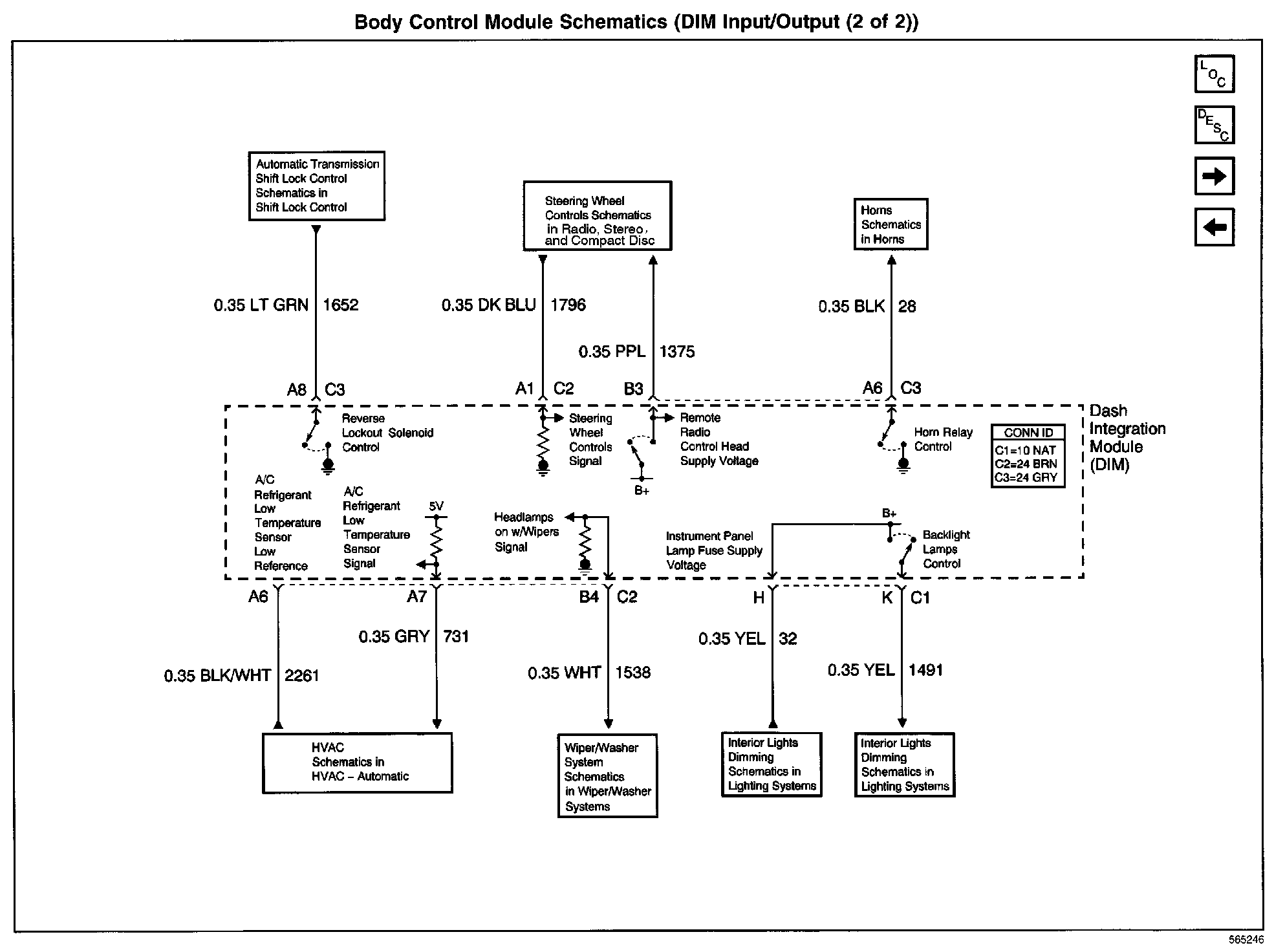

Body Control Module Schematics: DIM Input/Output Part 2:
