Does Not Disarm With Key Lock - Content Theft Deterrent (CTD)

DIAGNOSTIC AIDS
For Diagnostic Aids, refer to Testing for Intermittent and Poor Connections and Testing for Electrical Intermittents in Diagnostic Aids.

TEST DESCRIPTION

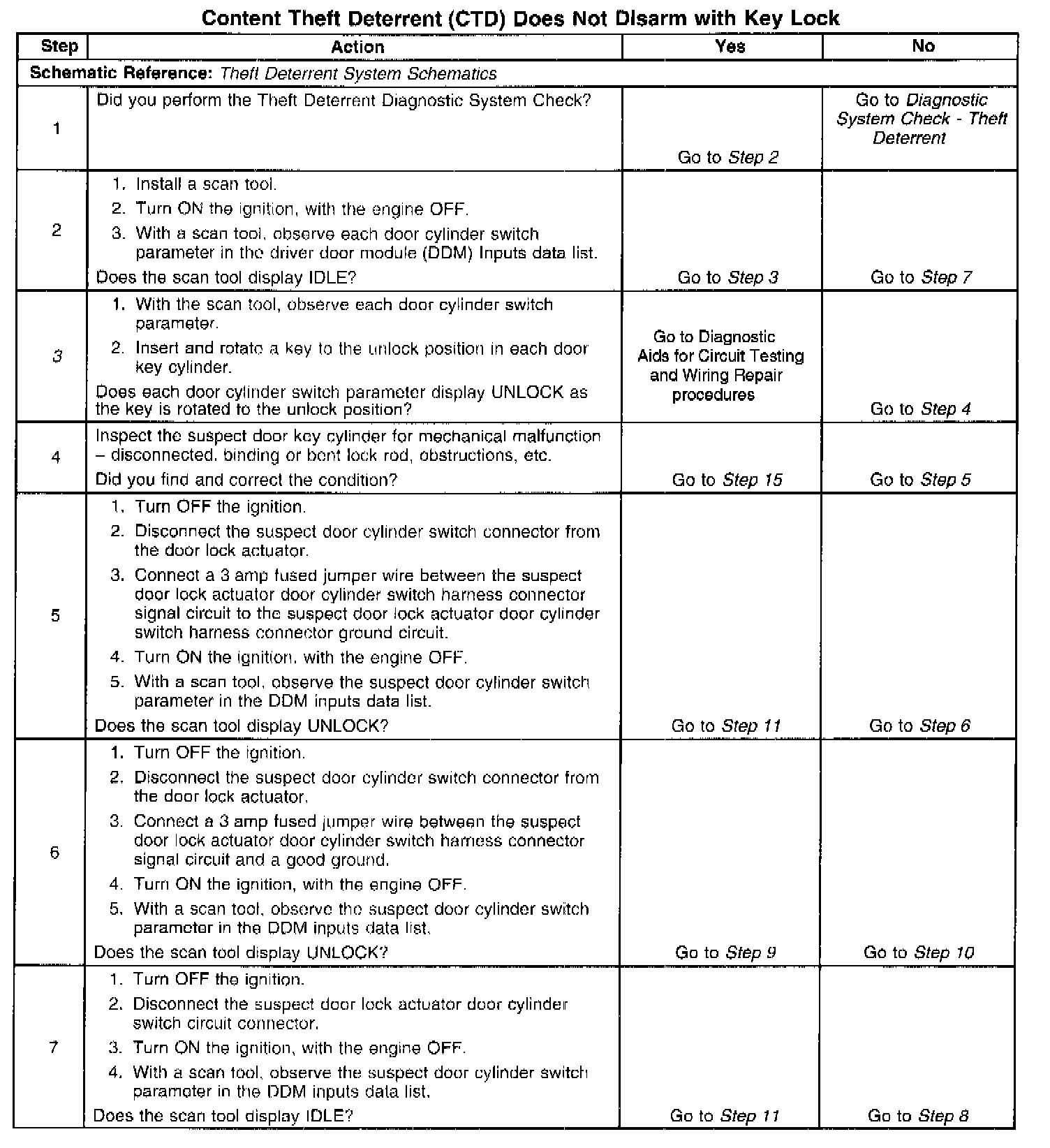

Steps 1-7:

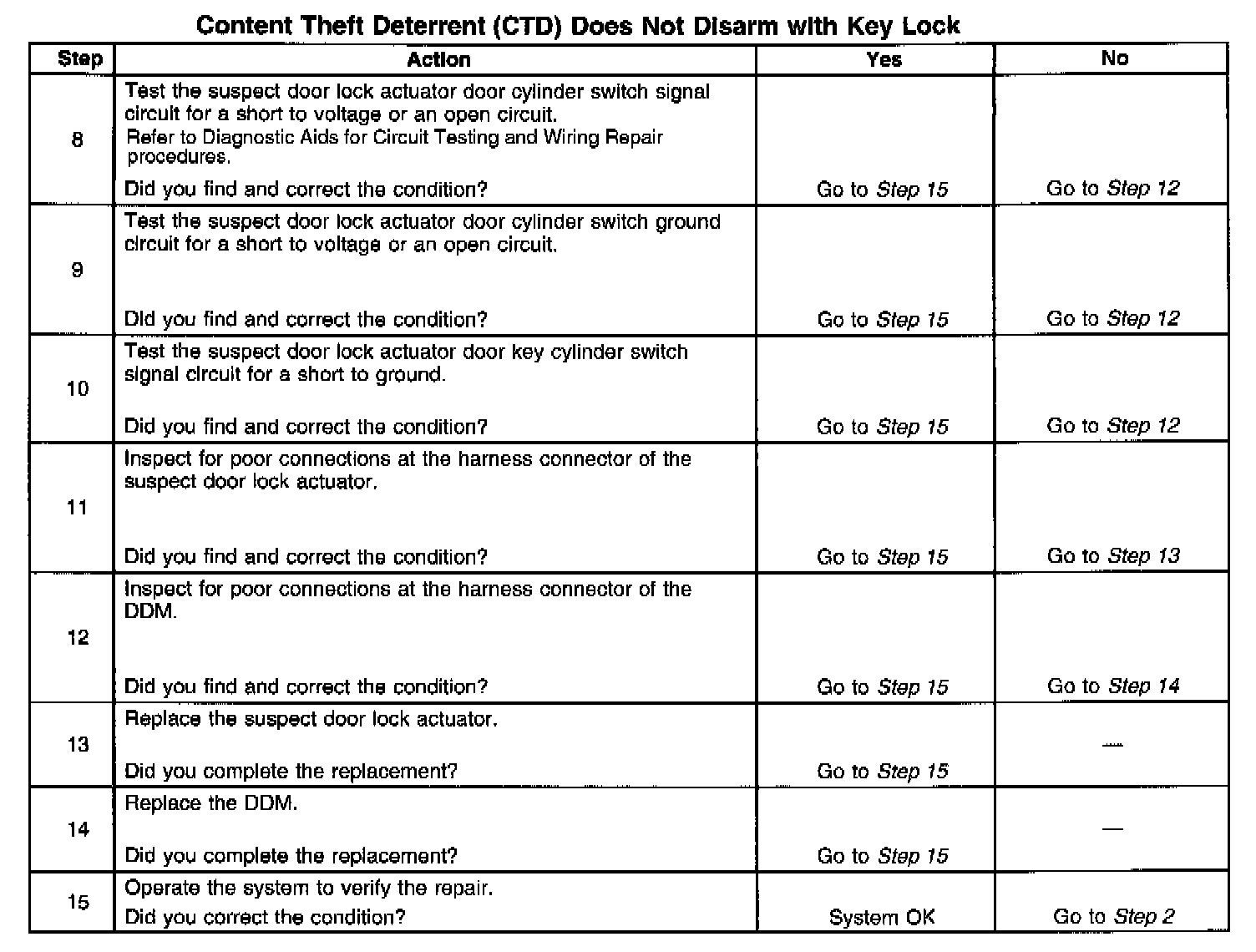

Steps 8-15:

The number below refer to the step number on the diagnostic table.
3. Scan tool should read the normal state operation.
