Antenna Replacement - Global Positioning System (Gps)

REMOVAL PROCEDURE




1. Remove the radio from the instrument panel (IP) in order to disconnect the GPS antenna connection at the radio.
2. Remove the P upper trim pad.
3. Remove the HVAC module.

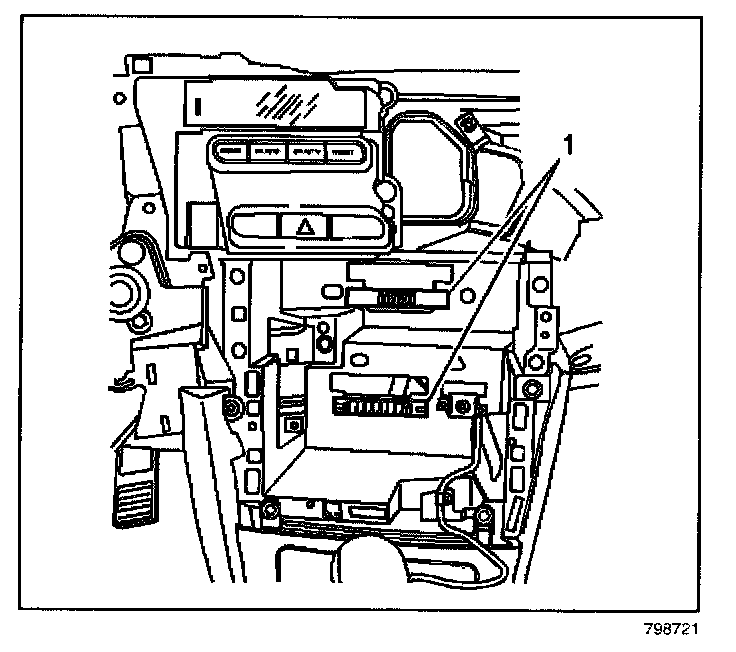

4. Remove the electrical connectors (1) from the retainer in order to gain access to the GPS antenna retaining clips.

IMPORTANT: Note the GPS antenna cable routing in order to route the GPS antenna cable properly during assembly.




5. Remove the antenna cable hold down clips.

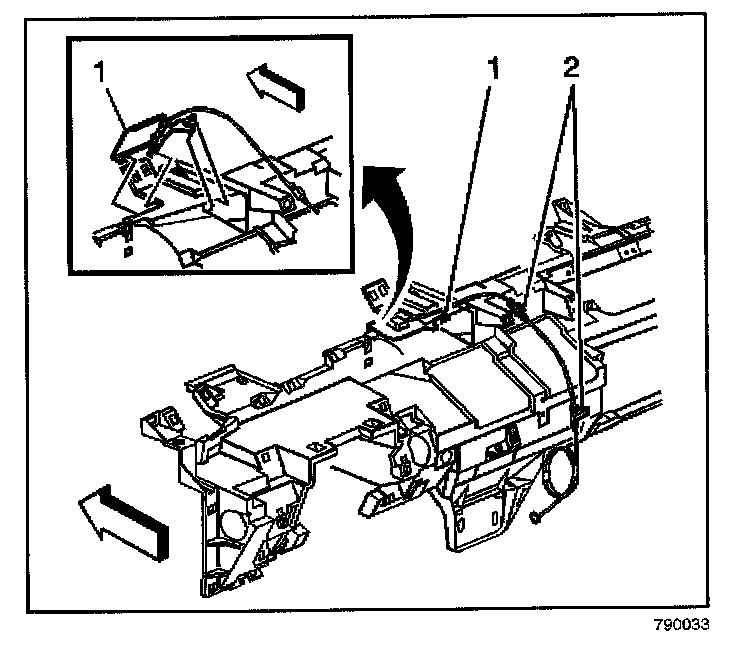

6. Remove the bracket (1) securing the GPS antenna assembly.
7. Tie a string to the radio end of the antenna to aid in the reinstallation.
8. Remove the GPS antenna (1) through the top of the IP.
9. Untie the string from the old antenna.

INSTALLATION PROCEDURE




1. Tie the string to the new antenna.
2. Route the GPS antenna cable as noted during disassembly.
3. Install the clips (2) in order to secure the cable to the IP.
4. Install the GPS antenna bracket (1).

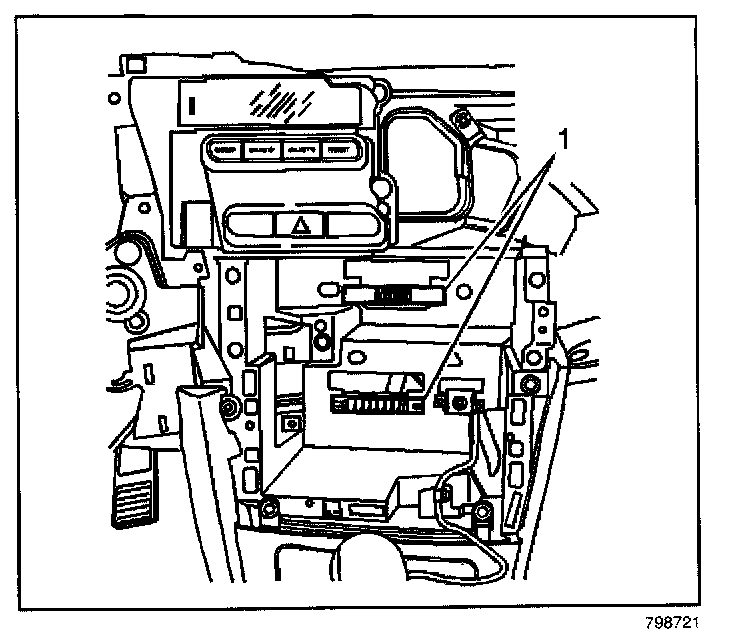

5. Install the electrical connectors to the IP retainer.
6. Install the HVAC module.
7. Install the IP upper trim pad.
8. Install the radio.
